pyuvdata UVBeam MWA integration tests¶
First import some code, and up some observational parameters.
import os
from subprocess import call
from astropy.io import fits
import numpy as np
from astropy.table import Column, Table
from astropy.time import Time
from astropy.coordinates import SkyCoord
from astropy.coordinates import EarthLocation
from astropy import units as u
import matplotlib.pyplot as plt
import numpy.testing as npt
from astropy.constants import c
from astropy.wcs import WCS
# from wodenpy.primary_beam.use_everybeam import run_everybeam, run_everybeam_over_threads
import erfa
import mwa_hyperbeam
from wodenpy.use_libwoden.create_woden_struct_classes import Woden_Struct_Classes
from ctypes import c_double
from astropy.time import TimeDelta
from wodenpy.array_layout.precession import RTS_Precess_LST_Lat_to_J2000
import sys
sys.path.append('../everybeam/')
# from run_woden import main as run_woden
##A bunch of test and plotting code lives here so we can use it in multile notebooks
from eb_testing_code import create_WCS, plot_jones_on_sky, plot_everybeam_on_sky, make_sky_models, read_uvfits, convert_inst_to_stokes, test_stokes_recovery, getFDF, findpeaks, test_RM_recovery, make_RM_skymodel
C = c.to('m/s').value
# ra0 = 0.0
# dec0 = -26.7
MWA_LAT=-26.703319405555554
MWA_LONG=116.67081523611111
metafits = "../../examples/metafits/1088285600_DipAmps.metafits"
with fits.open(metafits) as hdul:
date = hdul[0].header['DATE-OBS']
##pick a time/date that sticks our phase centre overhead
# date = "2024-07-21T20:13:00"
##Assume that the OSKAR telescope is near the MWA??
mwa_location = EarthLocation(lat=MWA_LAT*u.deg,
lon=MWA_LONG*u.deg,
height=377.827)
observing_time = Time(date, scale='utc', location=mwa_location)
##Grab the LST
LST = observing_time.sidereal_time('mean')
LST_deg = LST.value*15
print(f"LST: {LST_deg} deg")#, RA: {ra0}")
print(observing_time.mjd*86400)
LST: 359.79189431562236 deg
4910967184.0
What does the beam look like on the sky?¶
First up, let’s plot the hyperbeam MWA_FEE beam model on the sky to see what we’re expecting. WODEN likes the beam to be in IAU ordering, where the first (often called x) polarisation is aligned north-south. We also want this the have parallactic rotation, so switch that one. We’ll use hyperbeam first, which we already use and have tested extensively within WODEN.
Note that we precess the array and LST back to J2000; this is how WODEN works internally to make everything happen in the J2000 frame. I’m doing it here explicitly to check the beam works in J2000.
##Set up a grid of RA, Dec points
ra0 = LST_deg
dec0 = MWA_LAT
mjd_current = observing_time.mjd
lst_J2000, latitude_J2000 = RTS_Precess_LST_Lat_to_J2000(np.radians(LST_deg),
np.radians(MWA_LAT),
mjd_current)
nside=64
radec_reso=120/nside
header, wcs = create_WCS(ra0, dec0, nside, radec_reso)
x_mesh, y_mesh = np.meshgrid(np.arange(nside), np.arange(nside))
ras, decs = wcs.all_pix2world(x_mesh, y_mesh, 0)
ras = np.radians(ras.flatten())
decs = np.radians(decs.flatten())
##Then use erfa to convert these values into azs, els
# has = np.radians(LST_deg) - ras
has = lst_J2000 - ras
##use this erfa function to convert to azimuth and elevation
##were using degrees, but erfa uses rads, so convert here
az_grid, els = erfa.hd2ae(has, decs, latitude_J2000)
za_grid = np.pi/2 - els
##mwa hyperbeam
beam = mwa_hyperbeam.FEEBeam(hdf5_file=os.environ["MWA_FEE_HDF5"])
##Do it at exactly one of the stored frequencies, so when comparing
##to UVBeam we don't get interpolation differences
freq = 1.8432e+08
parallactic_rotation = True
IAU_order = True
jones = beam.calc_jones_array(az_grid, za_grid, freq, [0]*16, [1]*16,
IAU_order, latitude_J2000, parallactic_rotation)
all_gx_hyp = jones[:,0]
all_Dx_hyp = jones[:,1]
all_Dy_hyp = jones[:,2]
all_gy_hyp = jones[:,3]
all_gx_hyp.shape = (nside, nside)
all_Dx_hyp.shape = (nside, nside)
all_Dy_hyp.shape = (nside, nside)
all_gy_hyp.shape = (nside, nside)

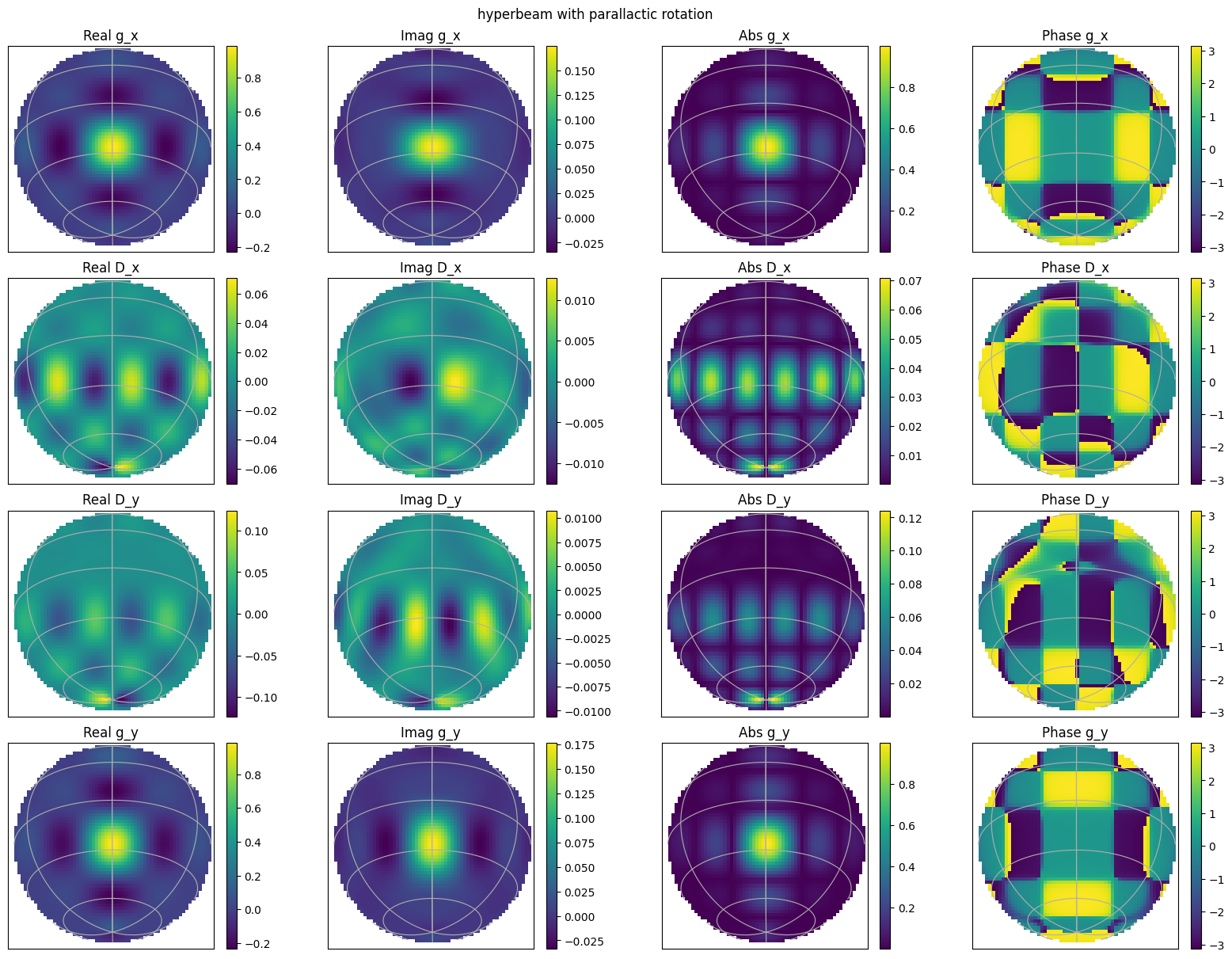

plot_jones_on_sky(all_gx_hyp, all_Dx_hyp, all_Dy_hyp, all_gy_hyp, wcs, title="hyperbeam with parallactic rotation")
invalid value encountered in hd2ae
Do a sanity check that we have polarisations in the order that we want. North dipoles are most sensitive towards the East-West, so if we subtract Y from X, we should see a positive signal towards the East-West, and negative towards the North-South.
diff = np.abs(all_gx_hyp) - np.abs(all_gy_hyp)
im = plt.imshow(diff, origin='lower')
plt.colorbar(im)
plt.xlabel("RA")
plt.ylabel("Dec")
plt.show()

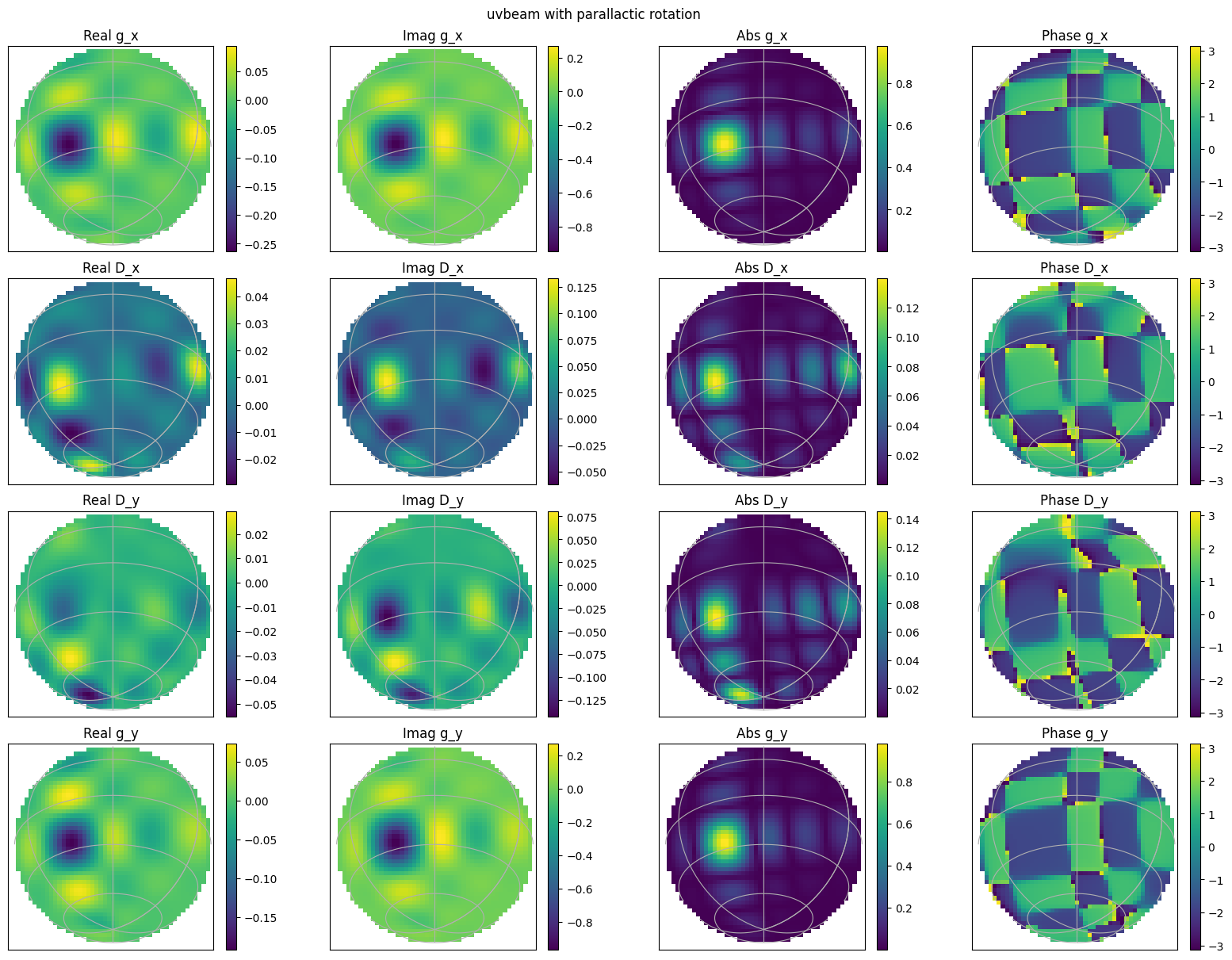

UVBeam MWA¶
Righto let’s compare that to the wrapper I have written around UVBeam MWA
from wodenpy.primary_beam.use_uvbeam import setup_MWA_uvbeams, run_uvbeam
freqs = np.array([freq])
delays = np.zeros(16)
gains = np.ones(32)
uvbeam_objs = setup_MWA_uvbeams(os.environ["MWA_FEE_HDF5"], freqs,
delays, gains,
pixels_per_deg = 5)
latitudes = np.array([latitude_J2000])
lsts = np.array([lst_J2000])
uvbeam_jones = run_uvbeam(uvbeam_objs, ras, decs,
latitudes, lsts,
freqs, iau_order=True,
parallactic_rotate=True)
beam_ind, time_ind, freq_ind = 0, 0, 0
all_gx_uvb = uvbeam_jones[beam_ind, time_ind, freq_ind, :, 0,0]
all_Dx_uvb = uvbeam_jones[beam_ind, time_ind, freq_ind, :, 0,1]
all_Dy_uvb = uvbeam_jones[beam_ind, time_ind, freq_ind, :, 1,0]
all_gy_uvb = uvbeam_jones[beam_ind, time_ind, freq_ind, :, 1,1]
all_gx_uvb.shape = (nside, nside)
all_Dx_uvb.shape = (nside, nside)
all_Dy_uvb.shape = (nside, nside)
all_gy_uvb.shape = (nside, nside)

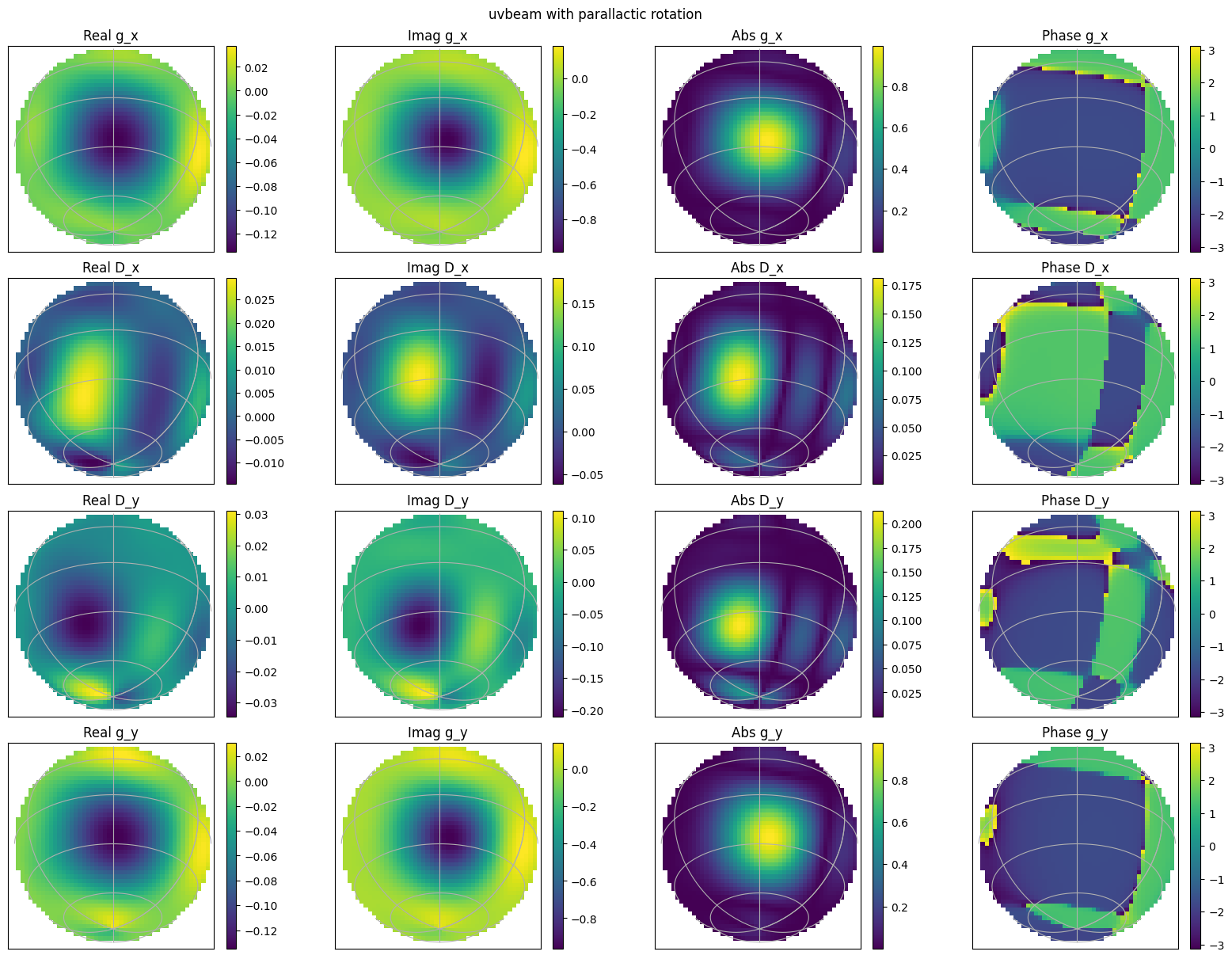

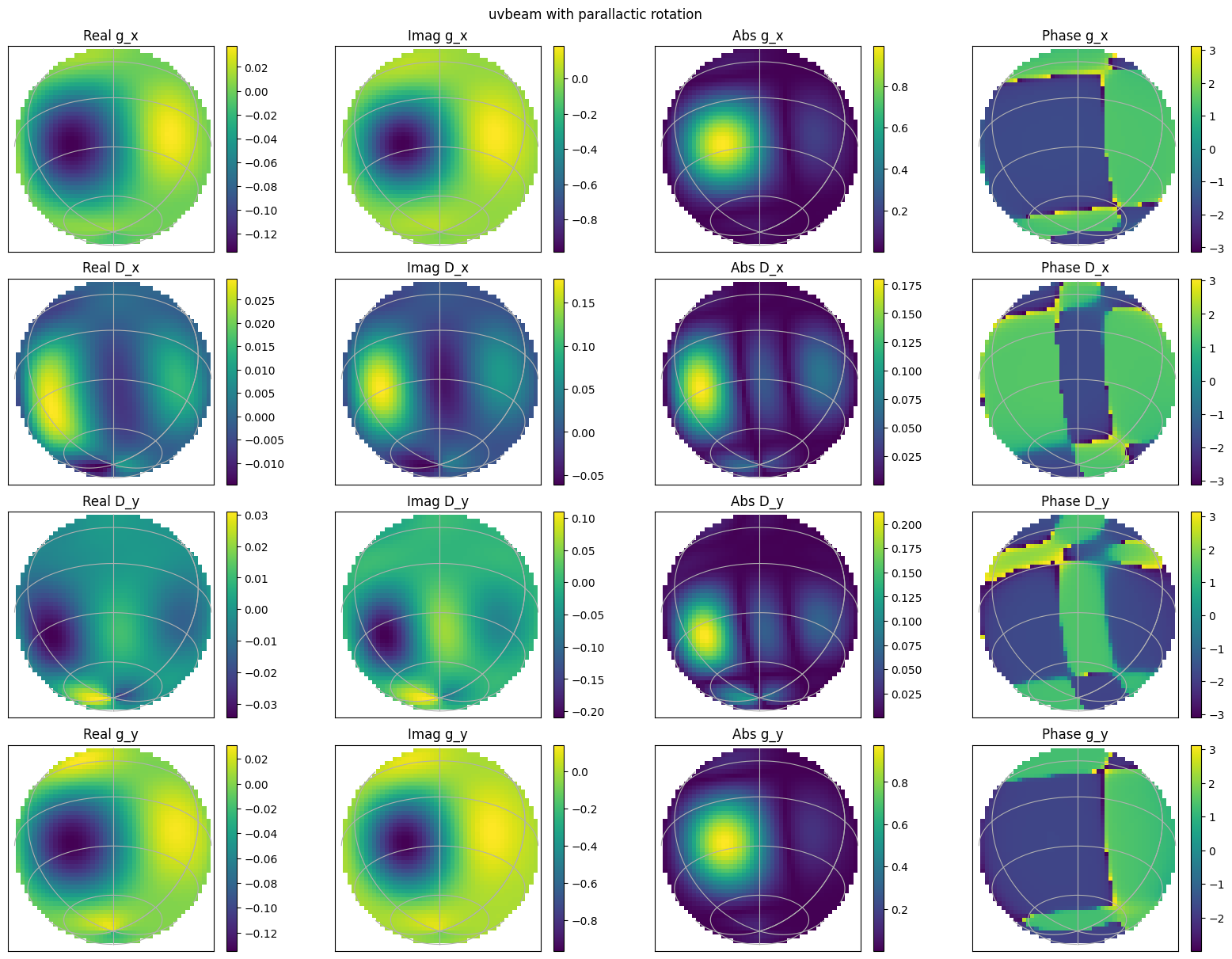

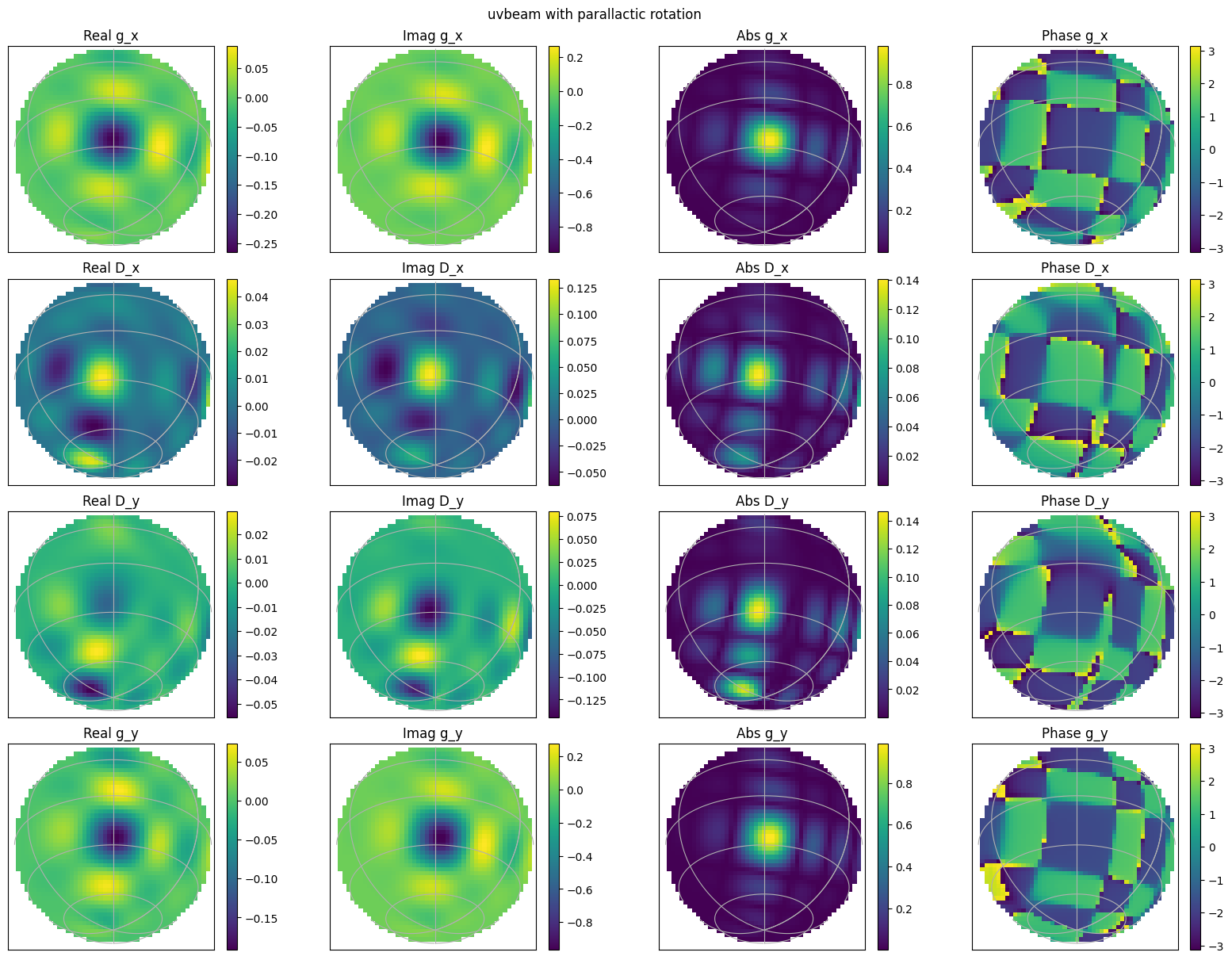

plot_jones_on_sky(all_gx_uvb, all_Dx_uvb, all_Dy_uvb, all_gy_uvb, wcs, 'UVBeam without parallactic rotation')
invalid value encountered in hd2ae
Now check that we have the east-west and north-south the way round that we think we do:
diff = np.abs(all_gx_uvb) - np.abs(all_gy_uvb)
im = plt.imshow(diff, origin='lower')
plt.colorbar(im)
plt.xlabel("RA")
plt.ylabel("Dec")
plt.show()
Good, same as what we got for hyperdrive. How different are the two beams?
diff_gx = all_gx_uvb - all_gx_hyp
diff_Dx = all_Dx_uvb - all_Dx_hyp
diff_Dy = all_Dy_uvb - all_Dy_hyp
diff_gy = all_gy_uvb - all_gy_hyp

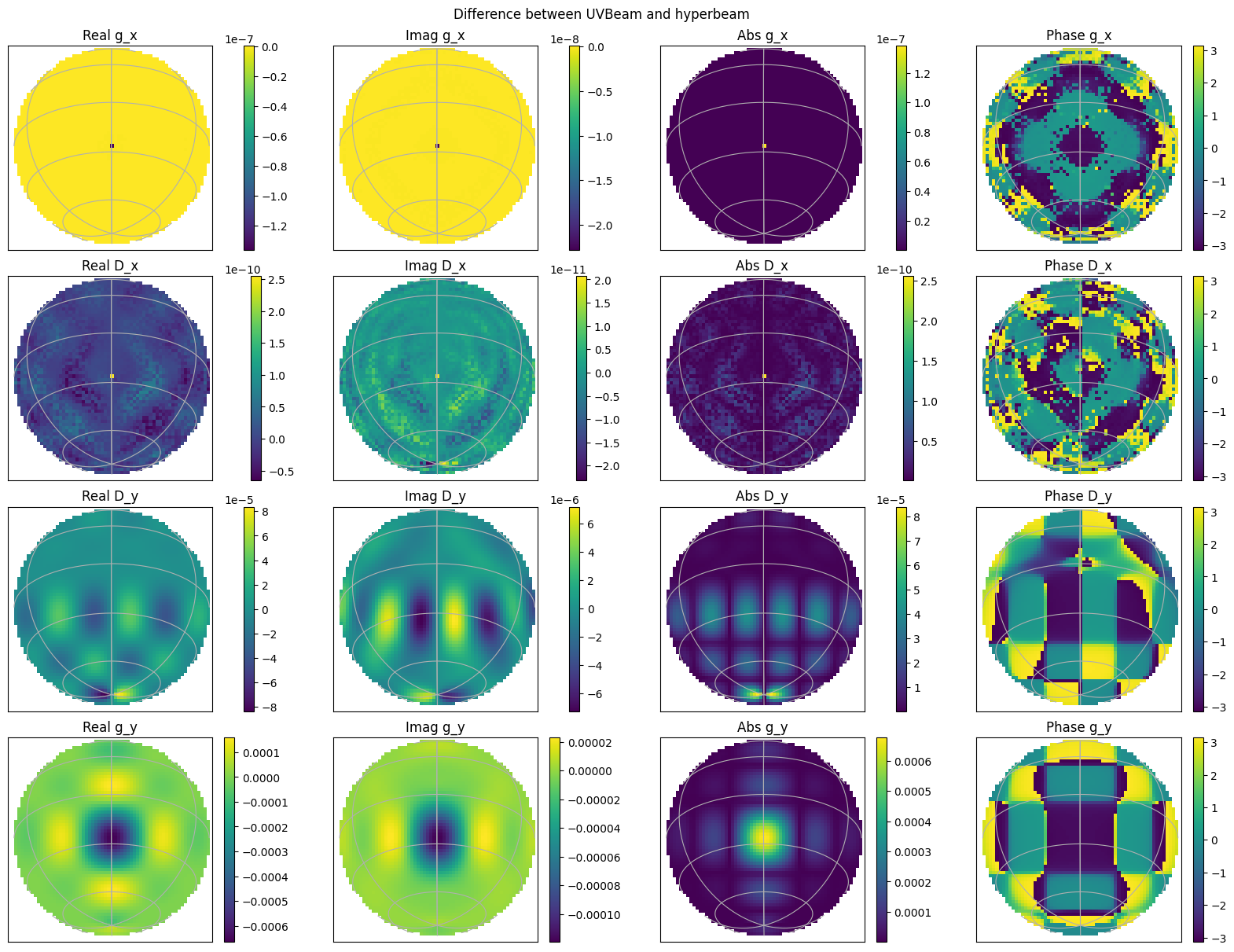

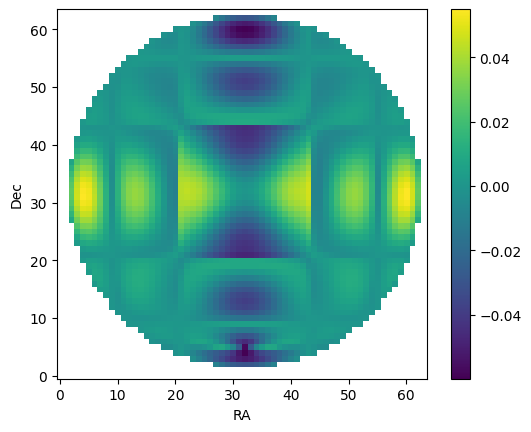

plot_jones_on_sky(diff_gx, diff_Dx, diff_Dy, diff_gy, wcs, 'Difference between UVBeam and hyperbeam')
So there is definitely a normalisation difference between the two beams. I’m using peak_normalize() under the hood to normalise UVBeam, which gives the closest answer. It is pretty suss that the north-south dipole (the x here, as I’m doing IAU labelling) is near identical, but the east-west dipole (the y here) is not. I’m also doing the parallactic rotation myself under the hood, so maybe that’s having an effect?
Stokes recovery¶

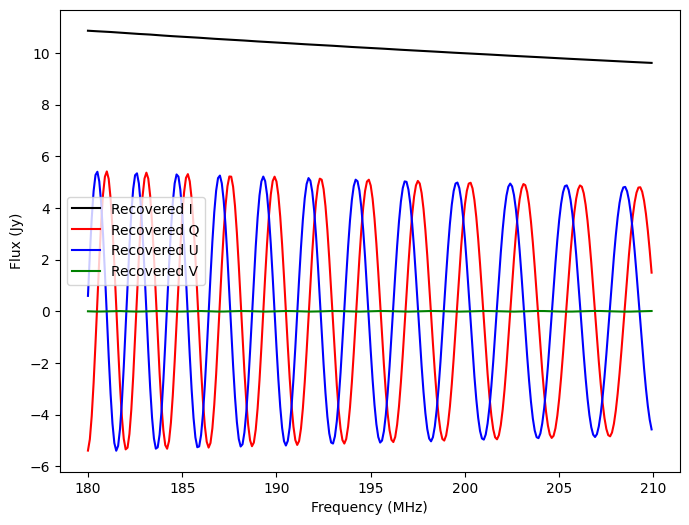

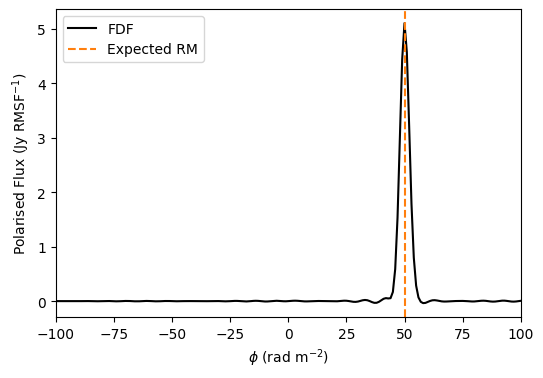

Now let’s check that we can recover the Stokes parameters from the beam. We’ll just test a single point source at zenith, where the gains should essentially be 1.0 and leakage zero. We’ll run all Stokes of I, Q, U, V through the full simulator, recombine the linear polarisations, and check we get back what we put in.
First, make our sky models. We’ll make 4 Stokes I models, where each has either I, Q, U, V = 1, and all other Stokes are zero. To make that happen for Q/U, make the component a list type so explicitly set one or the other to zero.
make_sky_models(ra0, dec0)
Keep the simulations tiny by making a 3 ant array
np.random.seed(234987)
##make a random array layout. Source is at phase centre, so the visibilities
##should all be full real and just be set by the flux in the sky
num_antennas = 3
east = np.random.uniform(-1000, 1000, num_antennas)
north = np.random.uniform(-1000, 1000, num_antennas)
height = np.zeros(num_antennas)
array = np.empty((num_antennas, 3))
array[:,0] = east
array[:,1] = north
array[:,2] = height
array_name = "eg_array.txt"
np.savetxt(array_name, array)
Run the 4 different Stokes sky models through hyperbeam first as a point of comparison. Check things work over a broad range of frequencies.
primary_beam = "MWA_FEE"
freq_reso = 1e+6
low_freq = 180e+6
high_freq = 210e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
for pol in ['I', 'Q', 'U', 'V']:
uvfits_name = f"stokes{pol}_{primary_beam}"
cat_name = f'{pol}_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} --dec0={dec0} '
cmd += f'--metafits_filename={metafits} '
cmd += f'--array_layout={array_name} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--cat_filename={cat_name} '
cmd += f'--time_res=2 '
cmd += f'--freq_res={freq_reso} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--num_threads=1 --cpu_mode '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:20:07 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:20:07 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:20:08 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:20:08 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:20:08 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:20:08 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:20:08 - INFO - Precessing array layout to J2000
2025-04-04 16:20:08 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:20:08 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-04-04 16:20:08 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:20:08 - INFO - Have read in 1 components
2025-04-04 16:20:08 - INFO - After cropping there are 1 components
2025-04-04 16:20:08 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:20:08 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:20:08 - INFO - Reading set 0 sky models
2025-04-04 16:20:08 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:20:08 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:20:09 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.1 seconds
2025-04-04 16:20:09 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:20:09 - INFO - Full run took 0:00:01.237566
2025-04-04 16:20:09 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:20:10 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:20:10 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:20:10 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:20:10 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:20:10 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:20:10 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:20:10 - INFO - Precessing array layout to J2000
2025-04-04 16:20:10 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:20:10 - INFO - Doing the initial mapping of sky model
2025-04-04 16:20:10 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:20:10 - INFO - Have read in 1 components
2025-04-04 16:20:10 - INFO - After cropping there are 1 components
2025-04-04 16:20:10 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:20:11 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:20:11 - INFO - Reading set 0 sky models
2025-04-04 16:20:11 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:20:11 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:20:11 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.1 seconds
2025-04-04 16:20:11 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:20:11 - INFO - Full run took 0:00:01.286513
2025-04-04 16:20:11 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:20:12 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:20:12 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:20:13 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:20:13 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:20:13 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:20:13 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:20:13 - INFO - Precessing array layout to J2000
2025-04-04 16:20:13 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:20:13 - INFO - Doing the initial mapping of sky model
2025-04-04 16:20:13 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:20:13 - INFO - Have read in 1 components
2025-04-04 16:20:13 - INFO - After cropping there are 1 components
2025-04-04 16:20:13 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:20:13 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:20:13 - INFO - Reading set 0 sky models
2025-04-04 16:20:13 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:20:13 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:20:13 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.1 seconds
2025-04-04 16:20:13 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:20:13 - INFO - Full run took 0:00:01.283747
2025-04-04 16:20:13 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:20:14 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:20:14 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:20:15 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:20:15 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:20:15 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:20:15 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:20:15 - INFO - Precessing array layout to J2000
2025-04-04 16:20:15 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:20:15 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-04-04 16:20:15 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:20:15 - INFO - Have read in 1 components
2025-04-04 16:20:15 - INFO - After cropping there are 1 components
2025-04-04 16:20:15 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:20:15 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:20:15 - INFO - Reading set 0 sky models
2025-04-04 16:20:15 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:20:15 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:20:16 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.1 seconds
2025-04-04 16:20:16 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:20:16 - INFO - Full run took 0:00:01.259271
2025-04-04 16:20:16 - INFO - WODEN is done. Closing the log. S'later
Tests are defined in eb_testing_code.py, which just asserts that whichever Stokes param we set to one comes out as one, and everything else is zero. Make the absolute tolerance of the test something to toggle, because real beam has leakage, and we don’t have the beam at exactly the phase centre for hyperbeam. The Stokes recovery is only really legit when the XX and YY beams are the same, so it’s good at phase centre and zenith.
Do the actual tests for MWA FEE beam
for pol in ['I', 'Q', 'U', 'V']:
test_stokes_recovery(pol, 'MWA_FEE', atol=5e-3)
Testing Stokes I
Stokes I passed
Testing Stokes Q
Stokes Q passed
Testing Stokes U
Stokes U passed
Testing Stokes V
Stokes V passed
Right, try and do the same thing with EveryBeam
primary_beam = "uvbeam_MWA"
freq_reso = 1e+6
low_freq = 180e+6
high_freq = 210e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
for pol in ['I', 'Q', 'U', 'V']:
uvfits_name = f"stokes{pol}_{primary_beam}"
cat_name = f'{pol}_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} --dec0={dec0} '
cmd += f'--metafits_filename={metafits} '
cmd += f'--array_layout={array_name} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--cat_filename={cat_name} '
cmd += f'--time_res=2 '
cmd += f'--freq_res={freq_reso} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--num_threads=1 --cpu_mode '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:20:47 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:20:47 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:20:48 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:20:48 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:20:48 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:20:48 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:20:48 - INFO - Precessing array layout to J2000
2025-04-04 16:20:48 - INFO - Using MWA primary beam via pyuvdata.UVBeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:20:48 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-04-04 16:20:48 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:20:48 - INFO - Have read in 1 components
2025-04-04 16:20:48 - INFO - After cropping there are 1 components
2025-04-04 16:20:48 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:20:48 - INFO - Creating UVBeam objects. This may take a while
2025-04-04 16:20:57 - INFO - UVBeam objects have been initialised
2025-04-04 16:20:57 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:20:57 - INFO - Reading (and calculating primary beam values for) set 0 sky models
2025-04-04 16:20:57 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:21:18 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:21:18 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.0 seconds
2025-04-04 16:21:18 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:21:18 - INFO - Full run took 0:00:30.230855
2025-04-04 16:21:18 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:21:19 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:21:19 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:21:19 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:21:19 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:21:19 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:21:19 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:21:19 - INFO - Precessing array layout to J2000
2025-04-04 16:21:19 - INFO - Using MWA primary beam via pyuvdata.UVBeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:21:19 - INFO - Doing the initial mapping of sky model
2025-04-04 16:21:19 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:21:19 - INFO - Have read in 1 components
2025-04-04 16:21:19 - INFO - After cropping there are 1 components
2025-04-04 16:21:19 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:21:20 - INFO - Creating UVBeam objects. This may take a while
2025-04-04 16:21:28 - INFO - UVBeam objects have been initialised
2025-04-04 16:21:28 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:21:28 - INFO - Reading (and calculating primary beam values for) set 0 sky models
2025-04-04 16:21:28 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:21:49 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:21:49 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.0 seconds
2025-04-04 16:21:49 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:21:49 - INFO - Full run took 0:00:29.860030
2025-04-04 16:21:49 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:21:50 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:21:50 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:21:51 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:21:51 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:21:51 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:21:51 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:21:51 - INFO - Precessing array layout to J2000
2025-04-04 16:21:51 - INFO - Using MWA primary beam via pyuvdata.UVBeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:21:51 - INFO - Doing the initial mapping of sky model
2025-04-04 16:21:51 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:21:51 - INFO - Have read in 1 components
2025-04-04 16:21:51 - INFO - After cropping there are 1 components
2025-04-04 16:21:51 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:21:51 - INFO - Creating UVBeam objects. This may take a while
2025-04-04 16:22:00 - INFO - UVBeam objects have been initialised
2025-04-04 16:22:00 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:22:00 - INFO - Reading (and calculating primary beam values for) set 0 sky models
2025-04-04 16:22:00 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:22:22 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:22:22 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.0 seconds
2025-04-04 16:22:22 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:22:22 - INFO - Full run took 0:00:32.116417
2025-04-04 16:22:22 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:22:23 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:22:23 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:22:24 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:22:24 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:22:24 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:22:24 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:22:24 - INFO - Precessing array layout to J2000
2025-04-04 16:22:24 - INFO - Using MWA primary beam via pyuvdata.UVBeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:22:24 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-04-04 16:22:24 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:22:24 - INFO - Have read in 1 components
2025-04-04 16:22:24 - INFO - After cropping there are 1 components
2025-04-04 16:22:24 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:22:24 - INFO - Creating UVBeam objects. This may take a while
2025-04-04 16:22:33 - INFO - UVBeam objects have been initialised
2025-04-04 16:22:33 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:22:33 - INFO - Reading (and calculating primary beam values for) set 0 sky models
2025-04-04 16:22:33 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:22:55 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:22:55 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.0 seconds
2025-04-04 16:22:55 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:22:55 - INFO - Full run took 0:00:31.767158
2025-04-04 16:22:55 - INFO - WODEN is done. Closing the log. S'later
for pol in ['I', 'Q', 'U', 'V']:
test_stokes_recovery(pol, 'uvbeam_MWA', atol=5e-3)
# #Uncomment to print out example values
# uvfits_name = f"stokes{pol}_everybeam_MWA"
# XX, XY, YX, YY = read_uvfits(f'{uvfits_name}_band01.uvfits')
# ##pick a random baseline to plot, they should all be the sam
# baseline = 0
# recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline])
# print(f"{pol}, {recover_I[0].real:.2f}, {recover_Q[0].real:.2f}, {recover_U[0].real:.2f}, {recover_V[0].real:.2f}")
Testing Stokes I
Stokes I passed
Testing Stokes Q
Stokes Q passed
Testing Stokes U
Stokes U passed
Testing Stokes V
Stokes V passed
Now test an RM recovery¶
Check we recover the correct RM and sign for a linearly polarised source. First of all, make the sky model.
phi_RM, pol_frac = make_RM_skymodel(ra0, dec0)
Run that through WODEN using hyperbeam to check the test is working.
freq_reso = 0.1e+6
low_freq = 180e+6
high_freq = 210e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "MWA_FEE"
uvfits_name = f"rm_source_{primary_beam}"
cat_name = 'RM_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--array_layout={array_name} '
cmd += f'--metafits_filename={metafits} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--num_threads=1 --cpu_mode'
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:23:58 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:23:58 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 300
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:23:59 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:23:59 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:23:59 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:23:59 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:23:59 - INFO - Precessing array layout to J2000
2025-04-04 16:23:59 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:23:59 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-04-04 16:23:59 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:23:59 - INFO - Have read in 1 components
2025-04-04 16:23:59 - INFO - After cropping there are 1 components
2025-04-04 16:23:59 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:23:59 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:23:59 - INFO - Reading set 0 sky models
2025-04-04 16:23:59 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:23:59 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:23:59 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.1 seconds
2025-04-04 16:23:59 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:23:59 - INFO - Full run took 0:00:01.262314
2025-04-04 16:23:59 - INFO - WODEN is done. Closing the log. S'later
0
Have a look and check our visis make sense
XX, XY, YX, YY = read_uvfits('rm_source_MWA_FEE_band01.uvfits')
baseline = 0
recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline])
freqs = np.arange(low_freq, high_freq, freq_reso)
fig, axs = plt.subplots(1, 1, figsize=(8, 6))
axs.plot(freqs / 1e+6, recover_I.real, 'k-', label='Recovered I')
axs.plot(freqs / 1e+6, recover_Q.real, 'r', label='Recovered Q')
axs.plot(freqs / 1e+6, recover_U.real, 'b', label='Recovered U')
axs.plot(freqs / 1e+6, recover_V.real, 'g', label='Recovered V')
axs.legend()
axs.set_xlabel('Frequency (MHz)')
axs.set_ylabel('Flux (Jy)')
plt.show()
# fig, axs = plt.subplots(1, 1, figsize=(8, 6))
# axs.plot(freqs / 1e+6, recover_I.real, 'k-', label='Polarisation Fraction')
Now define a test, using a bunch of Emil’s RM synthesis code.
test_RM_recovery(uvfits_name, phi_RM, pol_frac, freqs)
Recovered RM: 50.0 Expected RM: 50
Recovered Pol. Fraction: 0.49999502 Expected Pol Fraction 0.5
Loverly, works a treat. Now let’s do that with EveryBeam. Fair warning here; doing this many frequencies with UVBeam needed like 25GB of RAM. Not entirely sure why, must have something to do with the interpolation over frequency.
freq_reso = 0.1e+6
low_freq = 180e+6
high_freq = 210e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "uvbeam_MWA"
uvfits_name = f"rm_source_{primary_beam}"
cat_name = 'RM_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--array_layout={array_name} '
cmd += f'--metafits_filename={metafits} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--num_threads=1 --cpu_mode'
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:24:25 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:24:25 - INFO - Input arguments after parsing:
Phase centre: 359.79189, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 300
Start date: 2014-07-01T21:33:04
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:24:26 - INFO - Obs epoch initial LST was 359.7960723990 deg
2025-04-04 16:24:26 - INFO - Setting initial J2000 LST to 359.6093420812 deg
2025-04-04 16:24:26 - INFO - Setting initial mjd to 56839.8979745368
2025-04-04 16:24:26 - INFO - After precession initial latitude of the array is -26.7849050811 deg
2025-04-04 16:24:26 - INFO - Precessing array layout to J2000
2025-04-04 16:24:26 - INFO - Using MWA primary beam via pyuvdata.UVBeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:24:26 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-04-04 16:24:26 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:24:26 - INFO - Have read in 1 components
2025-04-04 16:24:26 - INFO - After cropping there are 1 components
2025-04-04 16:24:26 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:24:26 - INFO - Creating UVBeam objects. This may take a while
2025-04-04 16:24:35 - INFO - UVBeam objects have been initialised
2025-04-04 16:24:35 - INFO - Running in serial on CPU mode with 1 threads
There are 1 sets of sky models to run
2025-04-04 16:24:35 - INFO - Reading (and calculating primary beam values for) set 0 sky models
2025-04-04 16:24:35 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:26:41 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-04-04 16:26:41 - INFO - Sky set 0 chunk 0 has returned from the CPU after 0.0 seconds
2025-04-04 16:26:41 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:26:41 - INFO - Full run took 0:02:15.412539
2025-04-04 16:26:41 - INFO - WODEN is done. Closing the log. S'later
0
XX, XY, YX, YY = read_uvfits('rm_source_uvbeam_MWA_band01.uvfits')
baseline = 0
recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline])
freqs = np.arange(low_freq, high_freq, freq_reso)
fig, axs = plt.subplots(1, 1, figsize=(8, 6))
axs.plot(freqs / 1e+6, recover_I.real, 'k-', label='Recovered I')
axs.plot(freqs / 1e+6, recover_Q.real, 'r', label='Recovered Q')
axs.plot(freqs / 1e+6, recover_U.real, 'b', label='Recovered U')
axs.plot(freqs / 1e+6, recover_V.real, 'g', label='Recovered V')
axs.legend()
axs.set_xlabel('Frequency (MHz)')
axs.set_ylabel('Flux (Jy)')
plt.show()
Looks good!
test_RM_recovery(uvfits_name, phi_RM, pol_frac, freqs)
Recovered RM: 50.0 Expected RM: 50
Recovered Pol. Fraction: 0.49999446 Expected Pol Fraction 0.5
Yup works woot
Try off zenith pointings¶
Now we’ll test whether we can do off-zenith pointings. We’ll also test that we can run multiple time steps and frequencies. The measurement set I’m using is real calibrated data from the MWA. Unfortunately, it’s 2GB, so there’s no good way to include that with the WODEN repo. If you want to run this test, you should be able to get some data from the MWA ASVO https://asvo.mwatelescope.org/, and then convert that into a measurement set using pyuvdata for example.
ra0 = 60.0
dec0 = -30.0
date = "2015-09-10T19:44:15"
observing_time = Time(date, scale='utc', location=mwa_location)
##Setup a grid of RA/Dec on the sky
nside=50
radec_reso = 120/nside
header, wcs = create_WCS(ra0, dec0, nside, radec_reso)
x_mesh, y_mesh = np.meshgrid(np.arange(nside), np.arange(nside))
ras, decs = wcs.all_pix2world(x_mesh, y_mesh, 0)
ras = np.radians(ras.flatten())
decs = np.radians(decs.flatten())
num_comps = len(ras)
##Do a single freqs and time and beam
all_freqs = np.array([100e+6, 200e+6])
all_times = np.array([observing_time, observing_time + TimeDelta(2*3600.0, format='sec')])
lsts = []
latitudes = []
for obs_time in all_times:
LST = obs_time.sidereal_time('mean')
lst_current = np.radians(LST.value*15)
lst_J2000, latitude_J2000 = RTS_Precess_LST_Lat_to_J2000(
lst_current,
np.radians(MWA_LAT),
obs_time.mjd)
lsts.append(lst_J2000)
latitudes.append(latitude_J2000)
delays = np.array([0,2,4,6,0,2,4,6,0,2,4,6,0,2,4,6])
iau_order = True
parallactic_rotate = True
uvbeam_objs = setup_MWA_uvbeams(os.environ["MWA_FEE_HDF5"], all_freqs,
delays=delays,
pixels_per_deg = 5)
all_jones = run_uvbeam(uvbeam_objs, ras, decs,
latitudes, lsts,
all_freqs, iau_order=iau_order,
parallactic_rotate=parallactic_rotate)
invalid value encountered in hd2ae
beam_ind = 0
for time_ind in range(len(all_times)):
for freq_ind in range(len(all_freqs)):
this_gx = all_jones[beam_ind, time_ind, freq_ind, :, 0, 0]
this_Dx = all_jones[beam_ind, time_ind, freq_ind, :, 0, 1]
this_Dy = all_jones[beam_ind, time_ind, freq_ind, :, 1, 0]
this_gy = all_jones[beam_ind, time_ind, freq_ind, :, 1, 1]
this_gx.shape = (nside, nside)
this_Dx.shape = (nside, nside)
this_Dy.shape = (nside, nside)
this_gy.shape = (nside, nside)
plot_jones_on_sky(this_gx, this_Dx, this_Dy, this_gy, wcs, title="uvbeam with parallactic rotation")
Double check what it should look like using hyperdrive, where we can explicitly put the delays that we want in.
##use this erfa function to convert to azimuth and elevation
##were using degrees, but erfa uses rads, so convert here
for this_time in all_times:
for freq in all_freqs:
has = np.radians(this_time.sidereal_time('mean').value*15.0) - ras
az_grid, els = erfa.hd2ae(has, decs, np.radians(MWA_LAT))
za_grid = np.pi/2 - els
beam = mwa_hyperbeam.FEEBeam(hdf5_file=os.environ["MWA_FEE_HDF5"])
parallactic_rotation = True
delays = [0,2,4,6,0,2,4,6,0,2,4,6,0,2,4,6]
jones = beam.calc_jones_array(az_grid, za_grid, freq, delays, [1]*16, True, np.radians(MWA_LAT), parallactic_rotation)
all_gx = jones[:,0]
all_Dx = jones[:,1]
all_Dy = jones[:,2]
all_gy = jones[:,3]
all_gx.shape = (nside, nside)
all_Dx.shape = (nside, nside)
all_Dy.shape = (nside, nside)
all_gy.shape = (nside, nside)
plot_jones_on_sky(all_gx, all_Dx, all_Dy, all_gy, wcs, title="hyperbeam with parallactic rotation")
invalid value encountered in hd2ae
invalid value encountered in hd2ae
invalid value encountered in hd2ae
invalid value encountered in hd2ae
Interpolated beam¶

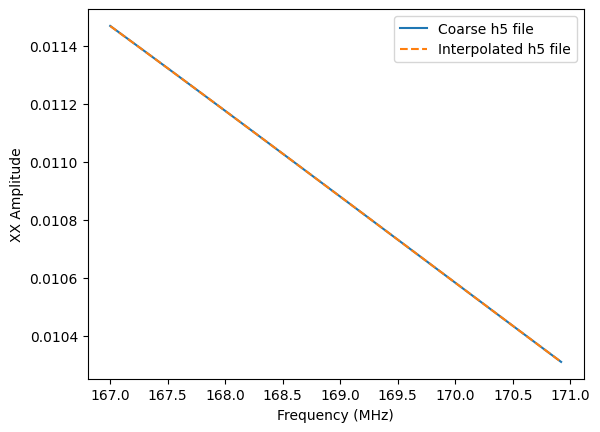

Can we use the interpolated Daniel Ung .h5 file for highband? Let’s try it.
from astropy.table import Column, Table
import numpy as np
import os
sing_ra = 15.0
sing_dec = -40.0
ras = [sing_ra]
decs = [sing_dec]
num_comps = len(ras)
c_ids = Column(data=np.array(['source']*num_comps), name='UNQ_SOURCE_ID', dtype='|S20')
c_names = Column(data=np.array([f'source_C{i:04d}' for i in range(num_comps)]), name='NAME', dtype='|S20')
##Component position
c_ras = Column(data=ras, name='RA')
c_decs = Column(data=decs, name='DEC')
##This says we have a point source
c_comp_types = Column(data=np.array(['P']*num_comps, dtype='|S1'), name="COMP_TYPE", dtype='|S1')
##This says we have a Stokes I power-law SED
c_mod_types = Column(data=np.array(['pl']*num_comps, dtype='|S3'), name="MOD_TYPE", dtype='|S3')
##Set everything as a flat spectrum 1 Jy stokes I source. That way we can image it and see the beam pattern
c_stokes_I_ref = Column(data=np.ones(num_comps), name='NORM_COMP_PL')
c_stokes_I_SI = Column(data=np.zeros(num_comps), name='ALPHA_PL')
cols = [c_ids, c_names, c_ras, c_decs, c_comp_types, c_mod_types, c_stokes_I_ref, c_stokes_I_SI]
main_table = Table(cols)
single_cat = 'single_point.fits'
main_table.write(single_cat, format='fits', overwrite=True)
ra0=0.0
dec0=-26.7
date="2024-07-21T20:13:00"
primary_beam="uvbeam_MWA"
num_times=1
num_freq_chans=50
low_freq=167e+6
uvfits_name="interp_run_woden"
freq_reso=80e+3
args = []
interp_h5 = os.environ['MWA_FEE_HDF5_INTERP']
cmd = 'run_woden.py '
cmd += f'--ra0={sing_ra} '
cmd += f'--dec0={-sing_dec} '
cmd += f'--metafits_filename=../../examples/metafits/1125949472_metafits.fits '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps={num_times} '
cmd += f'--IAU_order '
cmd += f'--cat_filename={single_cat} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--num_threads=1 '
cmd += f'--hdf5_beam_path={interp_h5} '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:44:37 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:44:37 - INFO - Input arguments after parsing:
Phase centre: 15.00000, 40.00000 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 167.000 MHz
Channel frequency resolution: 80.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 50
Start date: 2015-09-10T19:44:15
Time resolution: 2.0 (s)
Num time steps: 1
Have read 128 antenna positions from metafits file: ../../examples/metafits/1125949472_metafits.fits
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:44:37 - INFO - Obs epoch initial LST was 42.2620215148 deg
2025-04-04 16:44:37 - INFO - Setting initial J2000 LST to 42.0911874758 deg
2025-04-04 16:44:37 - INFO - Setting initial mjd to 57275.8224074073
2025-04-04 16:44:37 - INFO - After precession initial latitude of the array is -26.7665041369 deg
2025-04-04 16:44:37 - INFO - Precessing array layout to J2000
2025-04-04 16:44:37 - INFO - Using MWA primary beam via pyuvdata.UVBeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/MWA_embedded_element_pattern_rev2_interp_167_197MHz.h5
delays: [0 2 4 6 0 2 4 6 0 2 4 6 0 2 4 6]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:44:37 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-04-04 16:44:37 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:44:37 - INFO - Have read in 1 components
2025-04-04 16:44:37 - INFO - After cropping there are 1 components
2025-04-04 16:44:37 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:44:38 - INFO - Creating UVBeam objects. This may take a while
2025-04-04 16:47:30 - INFO - UVBeam objects have been initialised
2025-04-04 16:47:30 - INFO - Running in serial on GPU.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-04-04 16:47:30 - INFO - Reading (and calculating primary beam values for) set 0 sky models
2025-04-04 16:47:30 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:47:54 - INFO - Sending Sky set 0 to the GPU
2025-04-04 16:47:54 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-04-04 16:47:54 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:47:54 - INFO - Full run took 0:03:17.641892
2025-04-04 16:47:54 - INFO - WODEN is done. Closing the log. S'later
0
coarse_h5 = os.environ['MWA_FEE_HDF5']
uvfits_name = 'coarse_run_woden'
cmd = 'run_woden.py '
cmd += f'--ra0={sing_ra} '
cmd += f'--dec0={-sing_dec} '
cmd += f'--metafits_filename=../../examples/metafits/1125949472_metafits.fits '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps={num_times} '
cmd += f'--IAU_order '
cmd += f'--cat_filename={single_cat} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--num_threads=1 '
cmd += f'--hdf5_beam_path={coarse_h5} '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-04-04 16:48:12 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-04-04 16:48:12 - INFO - Input arguments after parsing:
Phase centre: 15.00000, 40.00000 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 167.000 MHz
Channel frequency resolution: 80.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 50
Start date: 2015-09-10T19:44:15
Time resolution: 2.0 (s)
Num time steps: 1
Have read 128 antenna positions from metafits file: ../../examples/metafits/1125949472_metafits.fits
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/pyuvbeam
2025-04-04 16:48:13 - INFO - Obs epoch initial LST was 42.2620215148 deg
2025-04-04 16:48:13 - INFO - Setting initial J2000 LST to 42.0911874758 deg
2025-04-04 16:48:13 - INFO - Setting initial mjd to 57275.8224074073
2025-04-04 16:48:13 - INFO - After precession initial latitude of the array is -26.7665041369 deg
2025-04-04 16:48:13 - INFO - Precessing array layout to J2000
2025-04-04 16:48:13 - INFO - Using MWA primary beam via pyuvdata.UVBeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 2 4 6 0 2 4 6 0 2 4 6 0 2 4 6]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-04-04 16:48:13 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-04-04 16:48:13 - INFO - Sky model mapping took 0.0 mins
2025-04-04 16:48:13 - INFO - Have read in 1 components
2025-04-04 16:48:13 - INFO - After cropping there are 1 components
2025-04-04 16:48:13 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-04-04 16:48:13 - INFO - Creating UVBeam objects. This may take a while
2025-04-04 16:48:17 - INFO - UVBeam objects have been initialised
2025-04-04 16:48:17 - INFO - Running in serial on GPU.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-04-04 16:48:17 - INFO - Reading (and calculating primary beam values for) set 0 sky models
2025-04-04 16:48:17 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-04-04 16:48:38 - INFO - Sending Sky set 0 to the GPU
2025-04-04 16:48:38 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-04-04 16:48:39 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-04-04 16:48:39 - INFO - Full run took 0:00:26.434028
2025-04-04 16:48:39 - INFO - WODEN is done. Closing the log. S'later
0
xx_interp, xy_interp, yx_interp, yy_interp = read_uvfits('interp_run_woden_band01.uvfits')
xx_coarse, xy_coarse, yx_coarse, yy_coarse = read_uvfits('coarse_run_woden_band01.uvfits')
freqs = np.arange(low_freq, low_freq + num_freq_chans*freq_reso, freq_reso)
xx_abs = np.abs(xx_coarse[0])
plt.plot(freqs/1e+6, xx_abs, label='Coarse h5 file')
xx_abs = np.abs(xx_interp[0])
plt.plot(freqs/1e+6, xx_abs, '--', label='Interpolated h5 file')
plt.xlabel('Frequency (MHz)')
plt.ylabel('XX Amplitude')
plt.legend()
plt.show()
Now, by default, UVBeam already interpolates the beam over frequency, so not surprisingly, these look the same. But the interpolated file beam is so so much slower and uses a huge amount of RAM. So I would suggest never using it with UVBeam.
