EveryBeam MWA integration tests¶
Goes without saying, but the test here rely on WODEN being compiled with Everybeam support. First import some code, and up some observational parameters.
import os
from subprocess import call
from astropy.io import fits
import numpy as np
from astropy.table import Column, Table
from astropy.time import Time
from astropy.coordinates import SkyCoord
from astropy.coordinates import EarthLocation
from astropy import units as u
import matplotlib.pyplot as plt
import numpy.testing as npt
from astropy.constants import c
from astropy.wcs import WCS
from wodenpy.primary_beam.use_everybeam import run_everybeam, run_everybeam_over_threads
import erfa
import mwa_hyperbeam
from wodenpy.use_libwoden.create_woden_struct_classes import Woden_Struct_Classes
from ctypes import c_double
from astropy.time import TimeDelta
from wodenpy.array_layout.precession import RTS_Precess_LST_Lat_to_J2000
import sys
# sys.path.append('../../scripts/')
# from run_woden import main as run_woden
##A bunch of test and plotting code lives here so we can use it in multile notebooks
from eb_testing_code import create_WCS, plot_jones_on_sky, plot_everybeam_on_sky, make_sky_models, read_uvfits, convert_inst_to_stokes, test_stokes_recovery, getFDF, findpeaks, test_RM_recovery, make_RM_skymodel
C = c.to('m/s').value
# ra0 = 0.0
# dec0 = -26.7
MWA_LAT=-26.703319405555554
MWA_LONG=116.67081523611111
##pick a time/date that sticks our phase centre overhead
date = "2024-07-21T20:13:00"
##Assume that the OSKAR telescope is near the MWA??
mwa_location = EarthLocation(lat=MWA_LAT*u.deg,
lon=MWA_LONG*u.deg,
height=377.827)
observing_time = Time(date, scale='utc', location=mwa_location)
##Grab the LST
LST = observing_time.sidereal_time('mean')
LST_deg = LST.value*15
print(f"LST: {LST_deg} deg")#, RA: {ra0}")
print(observing_time.mjd*86400)
LST: 0.0045520088542088475 deg
5228309580.0
What does the beam look like on the sky?¶
First up, let’s plot the hyperbeam MWA_FEE beam model on the sky to see what we’re expecting. WODEN likes the beam to be in IAU ordering, where the first (often called x) polarisation is aligned north-south. We also want this the have parallactic rotation, so switch that one. We’ll use hyperbeam first, which we already use and have tested extensively within WODEN.
Note that we precess the array and LST back to J2000; this is how WODEN works internally to make everything happen in the J2000 frame. I’m doing it here explicitly to check the beam works in J2000.
##Set up a grid of RA, Dec points
ra0 = LST_deg
dec0 = MWA_LAT
mjd_current = observing_time.mjd
lst_J2000, latitude_J2000 = RTS_Precess_LST_Lat_to_J2000(np.radians(LST_deg),
np.radians(MWA_LAT),
mjd_current)
nside=64
radec_reso=120/nside
header, wcs = create_WCS(ra0, dec0, nside, radec_reso)
x_mesh, y_mesh = np.meshgrid(np.arange(nside), np.arange(nside))
ras, decs = wcs.all_pix2world(x_mesh, y_mesh, 0)
ras = np.radians(ras.flatten())
decs = np.radians(decs.flatten())
##Then use erfa to convert these values into azs, els
# has = np.radians(LST_deg) - ras
has = lst_J2000 - ras
##use this erfa function to convert to azimuth and elevation
##were using degrees, but erfa uses rads, so convert here
az_grid, els = erfa.hd2ae(has, decs, latitude_J2000)
za_grid = np.pi/2 - els
##mwa hyperbeam
beam = mwa_hyperbeam.FEEBeam(hdf5_file=os.environ["MWA_FEE_HDF5"])
freq = 180e+6
parallactic_rotation = True
IAU_order = True
jones = beam.calc_jones_array(az_grid, za_grid, freq, [0]*16, [1]*16,
IAU_order, latitude_J2000, parallactic_rotation)
all_gx_hyp = jones[:,0]
all_Dx_hyp = jones[:,1]
all_Dy_hyp = jones[:,2]
all_gy_hyp = jones[:,3]
all_gx_hyp.shape = (nside, nside)
all_Dx_hyp.shape = (nside, nside)
all_Dy_hyp.shape = (nside, nside)
all_gy_hyp.shape = (nside, nside)

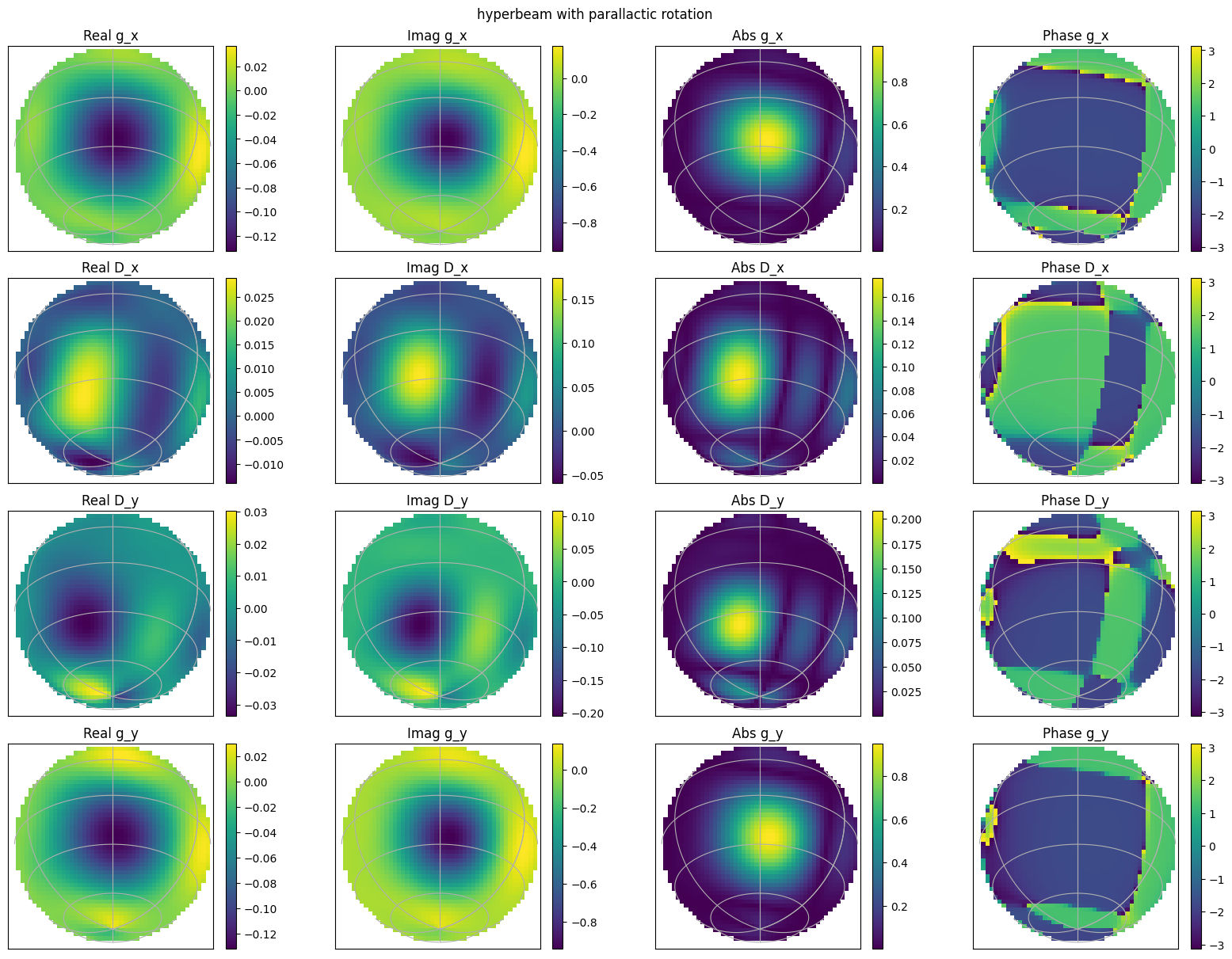

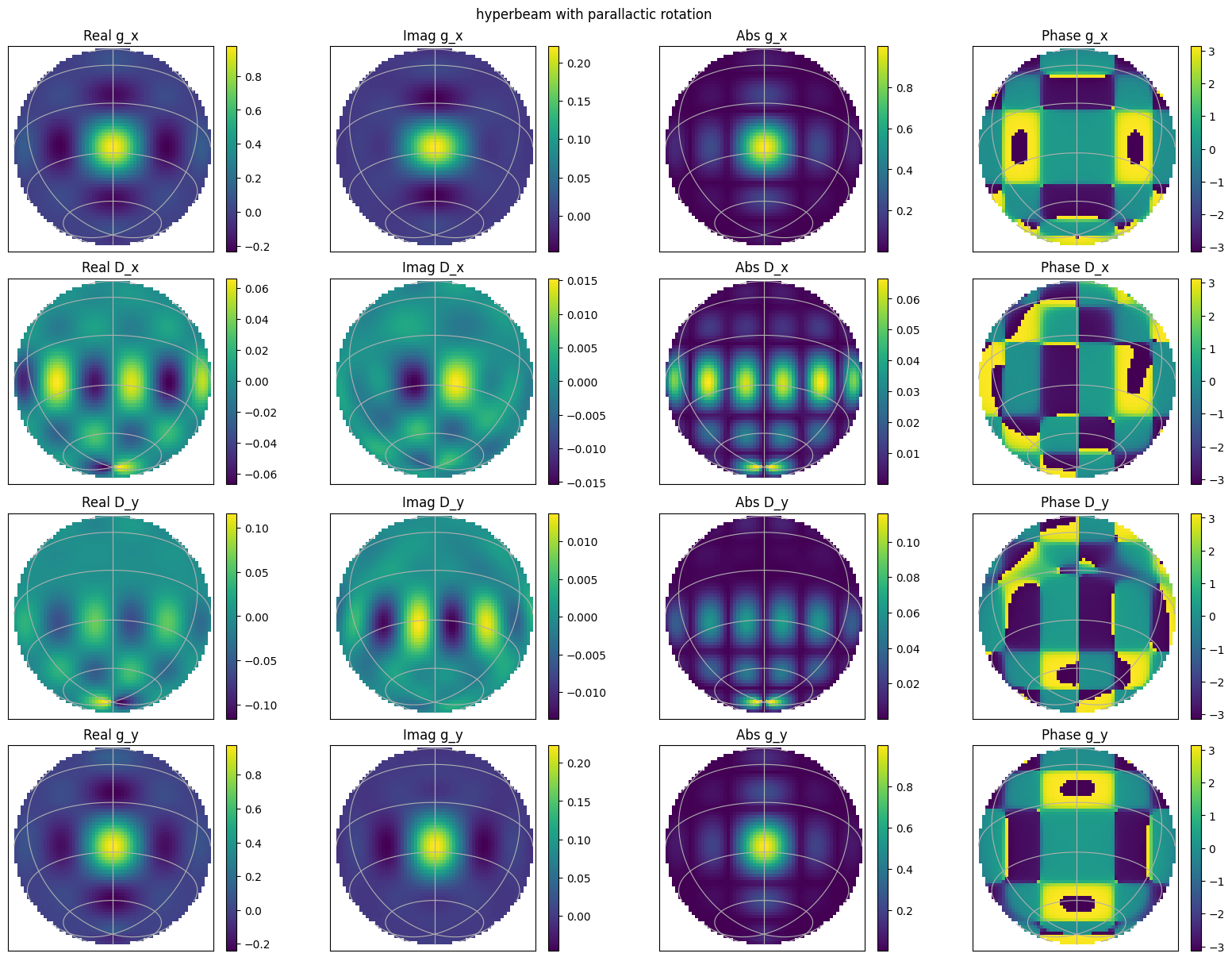

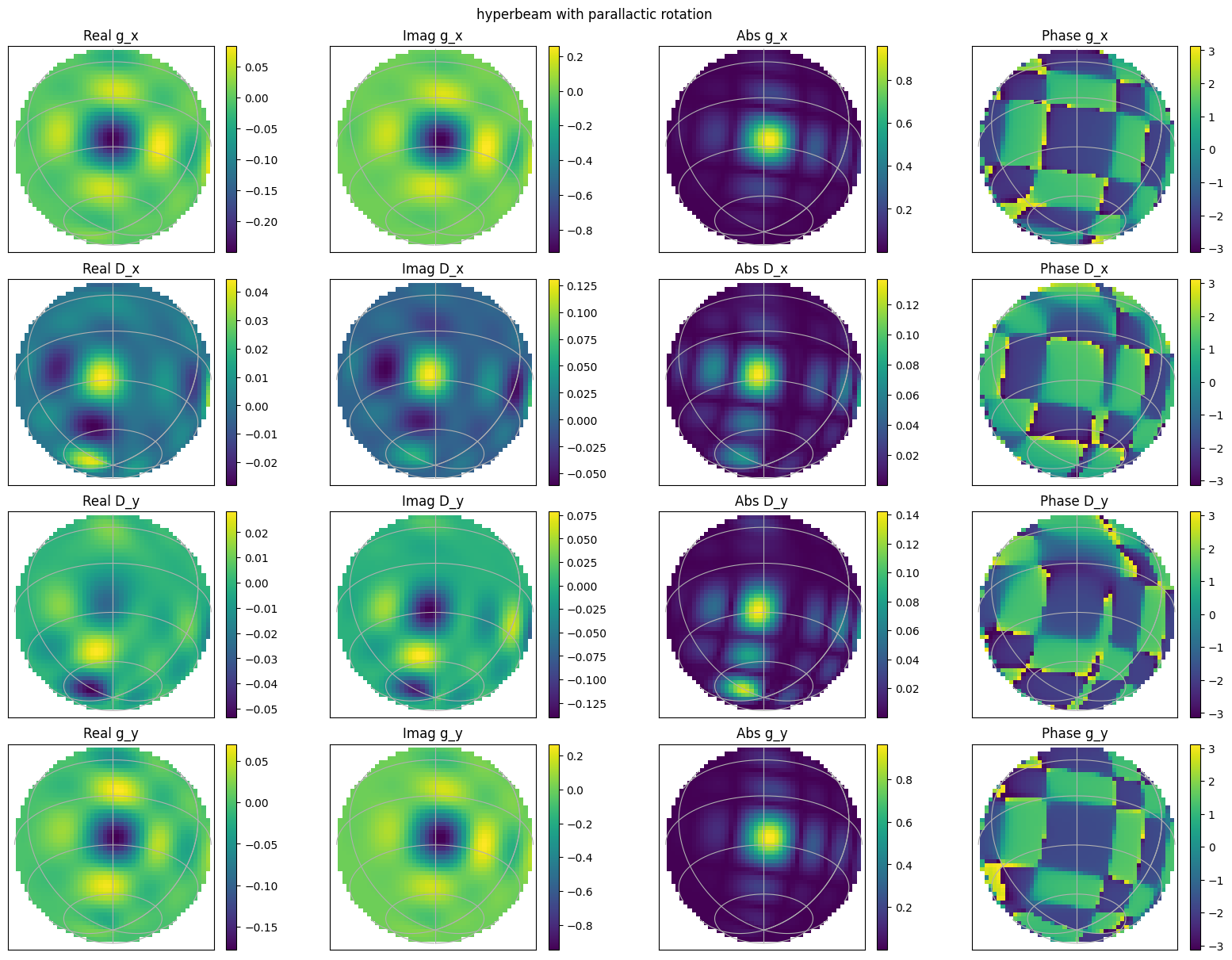

plot_jones_on_sky(all_gx_hyp, all_Dx_hyp, all_Dy_hyp, all_gy_hyp, wcs, title="hyperbeam with parallactic rotation")
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)

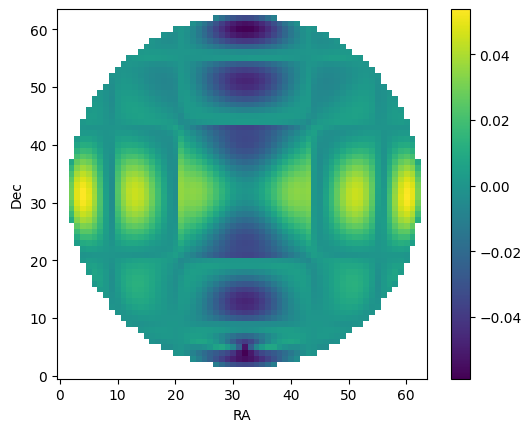

Do a sanity check that we have polarisations in the order that we want. North dipoles are most sensitive towards the East-West, so if we subtract Y from X, we should see a positive signal towards the East-West, and negative towards the North-South.
diff = np.abs(all_gx_hyp) - np.abs(all_gy_hyp)
im = plt.imshow(diff, origin='lower')
plt.colorbar(im)
plt.xlabel("RA")
plt.ylabel("Dec")
plt.show()
Aight, cool, we have a sensible beam patter benchmark to compare against.
EveryBeam MWA¶
Let’s now do the same with everybeam MWA and see how it compares. We’ll use the wodenpy.use_everybeam.run_everybeam function to do this, which is what the wodenpy sky model reading code uses. However, it’s a fairly slow function, so we’ll run it in parallel over a number of cores. To do this, we’ll use the helper function wodenpy.use_everybeam.run_everybeam_over_threads. This uses the same technique that run_woden.py uses to parallelise the sky model/beam calculations.
##Example MWA MS from the EveryBeam package
ms_path="MWA-single-timeslot.ms"
coeff_path=os.environ["MWA_FEE_HDF5"]
station_id = 0
station_ids = [0]
j2000_latitudes = [latitude_J2000]
j2000_lsts = [lst_J2000]
times = [observing_time]
freqs = [freq]
current_latitude = np.radians(MWA_LAT)
current_longitude = np.radians(MWA_LONG)
##The MWA everybeam model seems to pop out normalised beams
apply_beam_norms=False
use_differential_beam=False
##We need to turn on parallactic rotation in wodenpy as it doesn't exist for
##EveryBeam MWA. We also need to reorder the jones to get north-south first
parallactic_rotate=True
iau_order=True
##How many cores to split the work over
num_threads=8
all_jones = run_everybeam_over_threads(num_threads, ms_path,
coeff_path,
ras, decs,
np.radians(ra0), np.radians(dec0),
j2000_latitudes, j2000_lsts,
times, freqs, station_ids,
element_response_model='MWA',
apply_beam_norms=apply_beam_norms,
iau_order=iau_order,
parallactic_rotate=parallactic_rotate,
use_local_mwa=True)
beam_ind, time_ind, freq_ind = 0, 0, 0
all_gx_eb = all_jones[beam_ind, time_ind, freq_ind, :, 0, 0]
all_Dx_eb = all_jones[beam_ind, time_ind, freq_ind, :, 0, 1]
all_Dy_eb = all_jones[beam_ind, time_ind, freq_ind, :, 1, 0]
all_gy_eb = all_jones[beam_ind, time_ind, freq_ind, :, 1, 1]
all_gx_eb.shape = (nside, nside)
all_Dx_eb.shape = (nside, nside)
all_Dy_eb.shape = (nside, nside)
all_gy_eb.shape = (nside, nside)

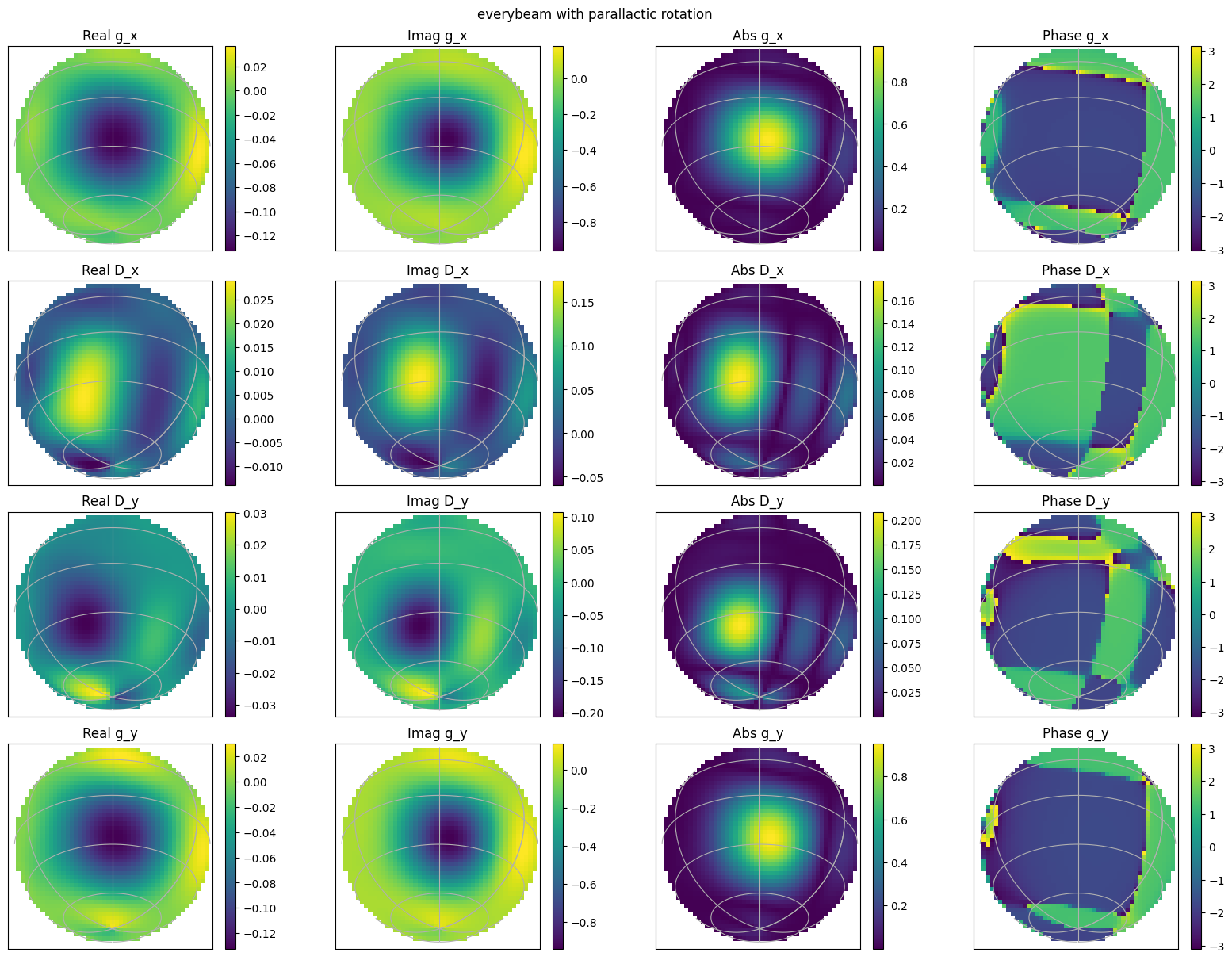

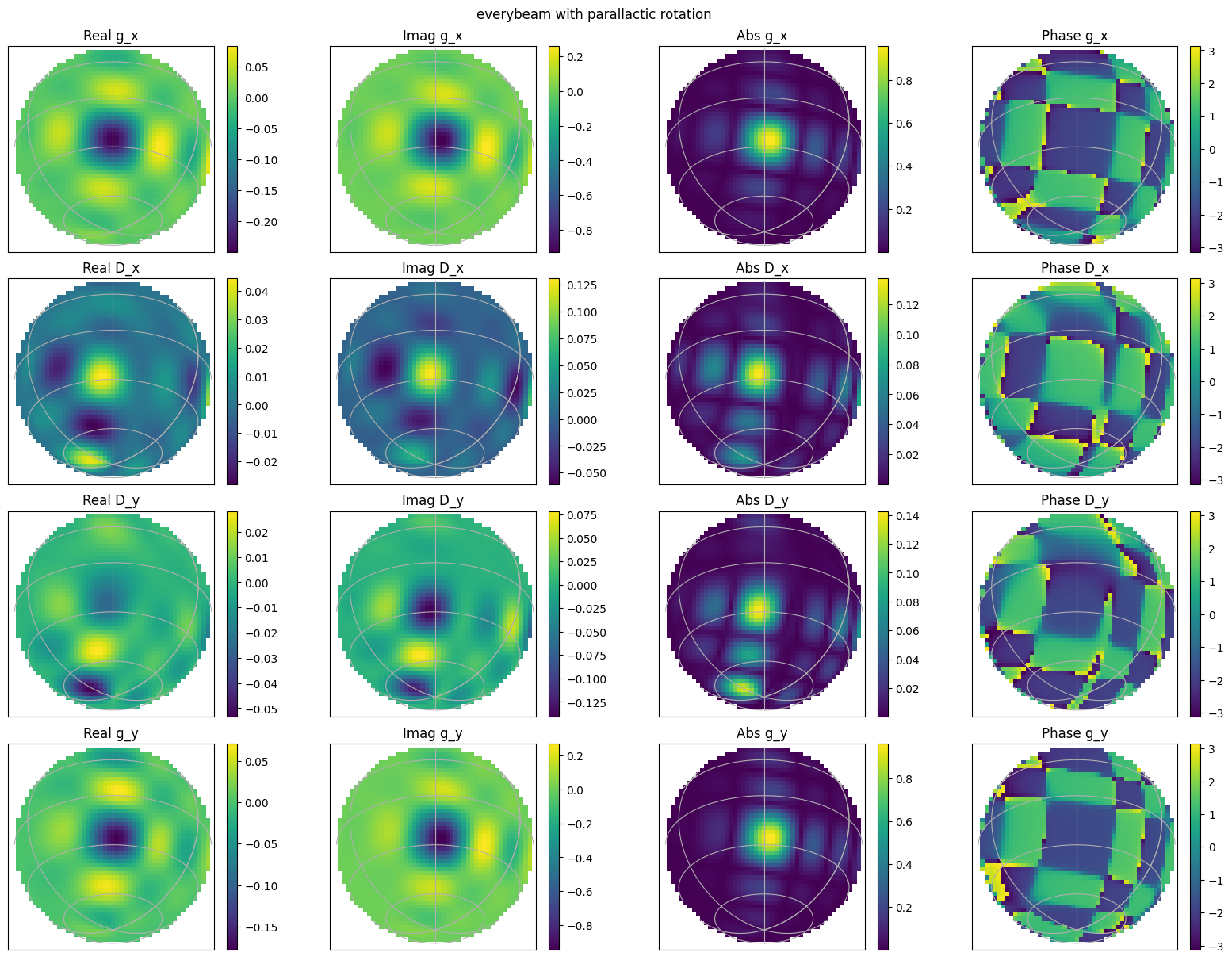

plot_jones_on_sky(all_gx_eb, all_Dx_eb, all_Dy_eb, all_gy_eb, wcs, 'Everybeam with parallactic rotation')
Thread 0 processing coords 0 to 512Thread 1 processing coords 512 to 1024Thread 2 processing coords 1024 to 1536Thread 4 processing coords 2048 to 2560Thread 3 processing coords 1536 to 2048
Thread 6 processing coords 3072 to 3584Thread 5 processing coords 2560 to 3072Thread 7 processing coords 3584 to 4096
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
Thread 5 finishedThread 3 finished
Thread 7 finished
Thread 0 finished
Thread 1 finished
Thread 6 finished
Thread 2 finished
Thread 4 finished
diff = np.abs(all_gx_eb) - np.abs(all_gy_eb)
im = plt.imshow(diff, origin='lower')
plt.colorbar(im)
plt.xlabel("RA")
plt.ylabel("Dec")
plt.show()
diff_gx = all_gx_eb - all_gx_hyp
diff_Dx = all_Dx_eb - all_Dx_hyp
diff_Dy = all_Dy_eb - all_Dy_hyp
diff_gy = all_gy_eb - all_gy_hyp

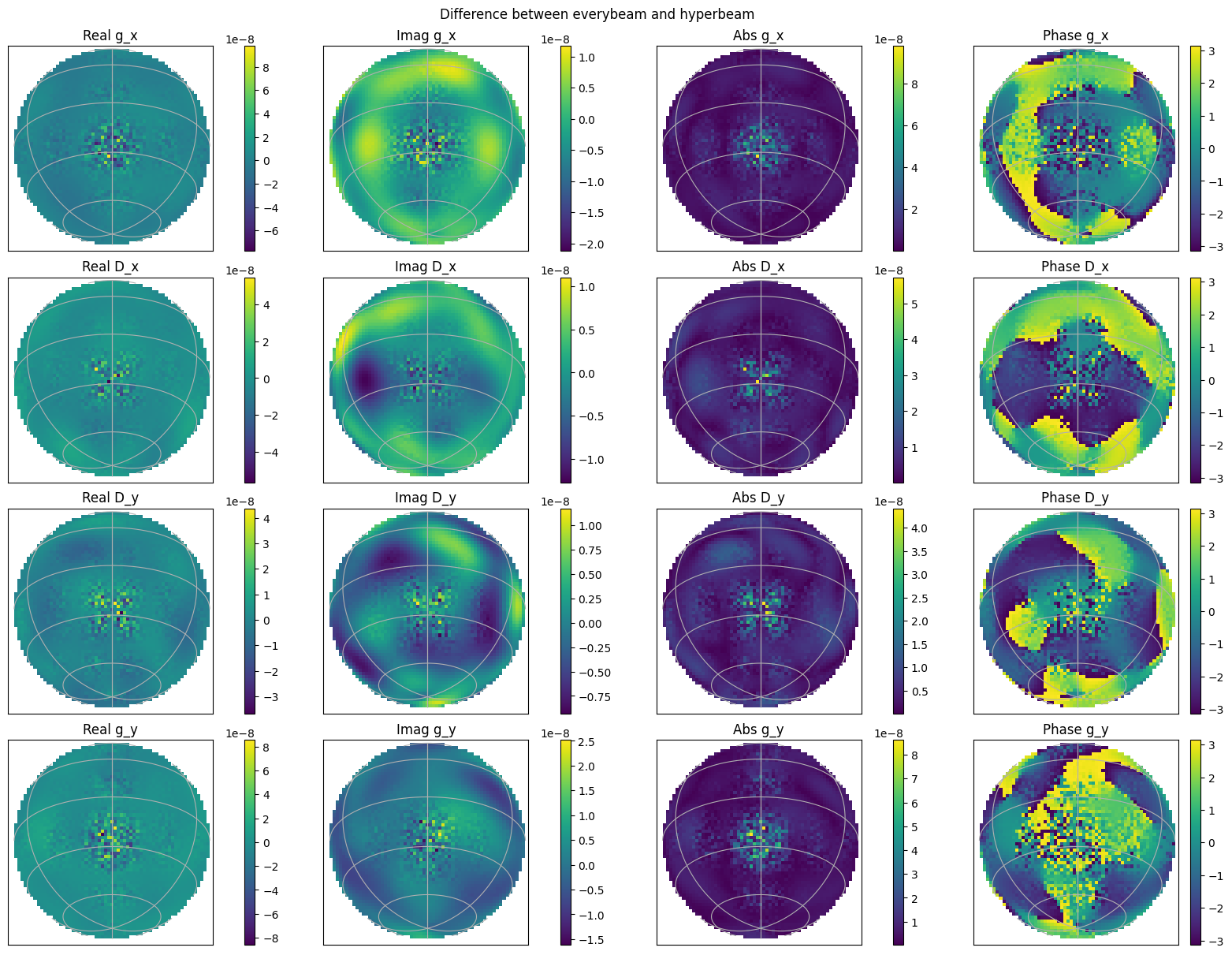

plot_jones_on_sky(diff_gx, diff_Dx, diff_Dy, diff_gy, wcs, 'Difference between everybeam and hyperbeam')
Lovely. Things are looking extremely similar, which is great.
Stokes recovery¶

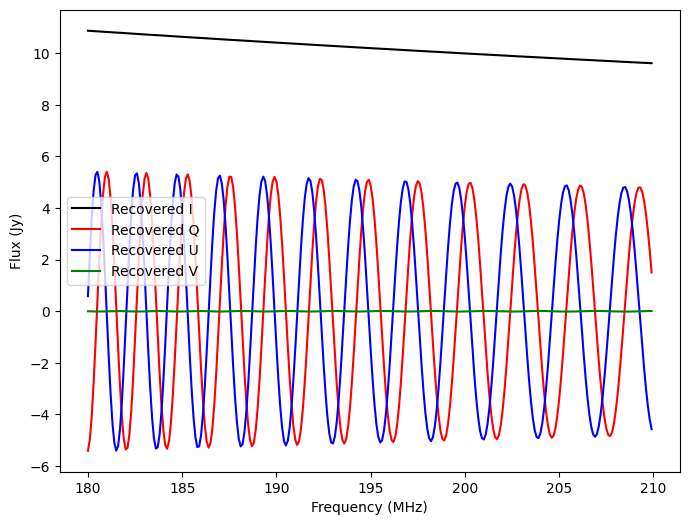

Now let’s check that we can recover the Stokes parameters from the beam. We’ll just test a single point source at zenith, where the gains should essentially be 1.0 and leakage zero. We’ll run all Stokes of I, Q, U, V through the full simulator, recombine the linear polarisations, and check we get back what we put in.
First, make our sky models. We’ll make 4 Stokes I models, where each has either I, Q, U, V = 1, and all other Stokes are zero. To make that happen for Q/U, make the component a list type so explicitly set one or the other to zero.
make_sky_models(ra0, dec0)
Keep the simulations tiny by making a 3 ant array
np.random.seed(234987)
##make a random array layout. Source is at phase centre, so the visibilities
##should all be full real and just be set by the flux in the sky
num_antennas = 3
east = np.random.uniform(-1000, 1000, num_antennas)
north = np.random.uniform(-1000, 1000, num_antennas)
height = np.zeros(num_antennas)
array = np.empty((num_antennas, 3))
array[:,0] = east
array[:,1] = north
array[:,2] = height
array_name = "eg_array.txt"
np.savetxt(array_name, array)
Run the 4 different Stokes sky models through hyperbeam first as a point of comparison. We’re avoiding using metafits here to be as apples to apples with EveryBeam as possible.
##parameters for the simulation; setting the date sets an LST of about 0 deg
##to match the phase centre
freq_reso = 1e+6
low_freq = 180e+6
high_freq = 210e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "MWA_FEE"
for pol in ['I', 'Q', 'U', 'V']:
uvfits_name = f"stokes{pol}_{primary_beam}"
cat_name = f'{pol}_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--array_layout={array_name} '
cmd += f'--date={date} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--MWA_FEE_delays=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] '
cmd += f'--num_threads=1 '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-02-27 09:49:03 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:03 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:03 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:03 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:03 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:03 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:03 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:03 - INFO - Precessing array layout to J2000
2025-02-27 09:49:03 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-02-27 09:49:03 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:03 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:03 - INFO - Have read in 1 components
2025-02-27 09:49:03 - INFO - After cropping there are 1 components
2025-02-27 09:49:03 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:04 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:04 - INFO - Reading set 0 sky models
2025-02-27 09:49:04 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:04 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:04 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-02-27 09:49:04 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:04 - INFO - Finished all rounds of processing
2025-02-27 09:49:04 - INFO - Full run took 0:00:01.498153
2025-02-27 09:49:04 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-02-27 09:49:05 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:05 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:05 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:06 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:06 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:06 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:06 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:06 - INFO - Precessing array layout to J2000
2025-02-27 09:49:06 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-02-27 09:49:06 - INFO - Doing the initial mapping of sky model
2025-02-27 09:49:06 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:06 - INFO - Have read in 1 components
2025-02-27 09:49:06 - INFO - After cropping there are 1 components
2025-02-27 09:49:06 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:06 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:06 - INFO - Reading set 0 sky models
2025-02-27 09:49:06 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:06 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:06 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-02-27 09:49:06 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:06 - INFO - Finished all rounds of processing
2025-02-27 09:49:06 - INFO - Full run took 0:00:01.447683
2025-02-27 09:49:06 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-02-27 09:49:07 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:07 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:08 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:08 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:08 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:08 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:08 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:08 - INFO - Precessing array layout to J2000
2025-02-27 09:49:08 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-02-27 09:49:08 - INFO - Doing the initial mapping of sky model
2025-02-27 09:49:08 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:08 - INFO - Have read in 1 components
2025-02-27 09:49:08 - INFO - After cropping there are 1 components
2025-02-27 09:49:08 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:08 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:08 - INFO - Reading set 0 sky models
2025-02-27 09:49:08 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:08 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:09 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-02-27 09:49:09 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:09 - INFO - Finished all rounds of processing
2025-02-27 09:49:09 - INFO - Full run took 0:00:01.485568
2025-02-27 09:49:09 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-02-27 09:49:10 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:10 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 30
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:10 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:10 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:10 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:10 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:10 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:10 - INFO - Precessing array layout to J2000
2025-02-27 09:49:10 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-02-27 09:49:10 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:10 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:10 - INFO - Have read in 1 components
2025-02-27 09:49:10 - INFO - After cropping there are 1 components
2025-02-27 09:49:10 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:10 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:10 - INFO - Reading set 0 sky models
2025-02-27 09:49:10 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:11 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:11 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-02-27 09:49:11 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:11 - INFO - Finished all rounds of processing
2025-02-27 09:49:11 - INFO - Full run took 0:00:01.450182
2025-02-27 09:49:11 - INFO - WODEN is done. Closing logging handlers. S'later
Tests are defined in eb_testing_code.py, which just asserts that whichever Stokes param we set to one comes out as one, and everything else is zero. Make the absolute tolerance of the test something to toggle, because real beam has leakage, and we don’t have the beam at exactly the phase centre for hyperbeam. The Stokes recovery is only really legit when the XX and YY beams are the same, so it’s good at phase centre and zenith.
Do the actual tests for MWA FEE beam
for pol in ['I', 'Q', 'U', 'V']:
test_stokes_recovery(pol, 'MWA_FEE', atol=5e-3)
Testing Stokes I
Stokes I passed
Testing Stokes Q
Stokes Q passed
Testing Stokes U
Stokes U passed
Testing Stokes V
Stokes V passed
Right, try and do the same thing with EveryBeam
##parameters for the simulation; setting the date sets an LST of about 0 deg
##to match the phase centre
freq_reso = 1e+6
low_freq = 180e+6
high_freq = 210e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "everybeam_MWA"
# print("WHAT DIS", os.environ["MWA_FEE_HDF5"])
for pol in ['I', 'Q', 'U', 'V']:
uvfits_name = f"stokes{pol}_{primary_beam}"
cat_name = f'{pol}_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--array_layout={array_name} '
cmd += f'--date={date} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--beam_ms_path={ms_path} '
cmd += f'--station_id=0 '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--num_threads=1 '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table MWA-single-timeslot.ms: 24 columns, 2628 rows
Successful readonly open of default-locked table MWA-single-timeslot.ms/SPECTRAL_WINDOW: 15 columns, 1 rows
2025-02-27 09:49:12 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:12 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 30.720 MHz
Num channels per coarse band: 30
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:12 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:12 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:12 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:12 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:12 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:12 - INFO - Precessing array layout to J2000
2025-02-27 09:49:12 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
MWA-single-timeslot.ms
2025-02-27 09:49:12 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:12 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:12 - INFO - Have read in 1 components
2025-02-27 09:49:12 - INFO - After cropping there are 1 components
2025-02-27 09:49:12 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:13 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:13 - INFO - Reading set 0 sky models
2025-02-27 09:49:13 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:13 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:49:13 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:13 - INFO - Sky set 0 has returned from the GPU after 0.3 seconds
2025-02-27 09:49:13 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:13 - INFO - Finished all rounds of processing
2025-02-27 09:49:13 - INFO - Full run took 0:00:01.544071
2025-02-27 09:49:13 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table MWA-single-timeslot.ms: 24 columns, 2628 rows
Successful readonly open of default-locked table MWA-single-timeslot.ms/SPECTRAL_WINDOW: 15 columns, 1 rows
2025-02-27 09:49:14 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:14 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 30.720 MHz
Num channels per coarse band: 30
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:15 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:15 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:15 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:15 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:15 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:15 - INFO - Precessing array layout to J2000
2025-02-27 09:49:15 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
MWA-single-timeslot.ms
2025-02-27 09:49:15 - INFO - Doing the initial mapping of sky model
2025-02-27 09:49:15 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:15 - INFO - Have read in 1 components
2025-02-27 09:49:15 - INFO - After cropping there are 1 components
2025-02-27 09:49:15 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:15 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:15 - INFO - Reading set 0 sky models
2025-02-27 09:49:15 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:15 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:49:15 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:16 - INFO - Sky set 0 has returned from the GPU after 0.3 seconds
2025-02-27 09:49:16 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:16 - INFO - Finished all rounds of processing
2025-02-27 09:49:16 - INFO - Full run took 0:00:01.524006
2025-02-27 09:49:16 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table MWA-single-timeslot.ms: 24 columns, 2628 rows
Successful readonly open of default-locked table MWA-single-timeslot.ms/SPECTRAL_WINDOW: 15 columns, 1 rows
2025-02-27 09:49:17 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:17 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 30.720 MHz
Num channels per coarse band: 30
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:17 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:17 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:17 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:17 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:17 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:17 - INFO - Precessing array layout to J2000
2025-02-27 09:49:17 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
MWA-single-timeslot.ms
2025-02-27 09:49:17 - INFO - Doing the initial mapping of sky model
2025-02-27 09:49:17 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:17 - INFO - Have read in 1 components
2025-02-27 09:49:17 - INFO - After cropping there are 1 components
2025-02-27 09:49:17 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:17 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:17 - INFO - Reading set 0 sky models
2025-02-27 09:49:18 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:18 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:49:18 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:18 - INFO - Sky set 0 has returned from the GPU after 0.3 seconds
2025-02-27 09:49:18 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:18 - INFO - Finished all rounds of processing
2025-02-27 09:49:18 - INFO - Full run took 0:00:01.543934
2025-02-27 09:49:18 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table MWA-single-timeslot.ms: 24 columns, 2628 rows
Successful readonly open of default-locked table MWA-single-timeslot.ms/SPECTRAL_WINDOW: 15 columns, 1 rows
2025-02-27 09:49:19 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:19 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 30.720 MHz
Num channels per coarse band: 30
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:20 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:20 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:20 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:20 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:20 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:20 - INFO - Precessing array layout to J2000
2025-02-27 09:49:20 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
MWA-single-timeslot.ms
2025-02-27 09:49:20 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:20 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:20 - INFO - Have read in 1 components
2025-02-27 09:49:20 - INFO - After cropping there are 1 components
2025-02-27 09:49:20 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:20 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:20 - INFO - Reading set 0 sky models
2025-02-27 09:49:20 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:20 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:49:20 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:20 - INFO - Sky set 0 has returned from the GPU after 0.3 seconds
2025-02-27 09:49:20 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:20 - INFO - Finished all rounds of processing
2025-02-27 09:49:21 - INFO - Full run took 0:00:01.534458
2025-02-27 09:49:21 - INFO - WODEN is done. Closing logging handlers. S'later
for pol in ['I', 'Q', 'U', 'V']:
test_stokes_recovery(pol, 'everybeam_MWA', atol=5e-3)
# #Uncomment to print out example values
# uvfits_name = f"stokes{pol}_everybeam_MWA"
# XX, XY, YX, YY = read_uvfits(f'{uvfits_name}_band01.uvfits')
# ##pick a random baseline to plot, they should all be the sam
# baseline = 0
# recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline])
# print(f"{pol}, {recover_I[0].real:.2f}, {recover_Q[0].real:.2f}, {recover_U[0].real:.2f}, {recover_V[0].real:.2f}")
Testing Stokes I
Stokes I passed
Testing Stokes Q
Stokes Q passed
Testing Stokes U
Stokes U passed
Testing Stokes V
Stokes V passed

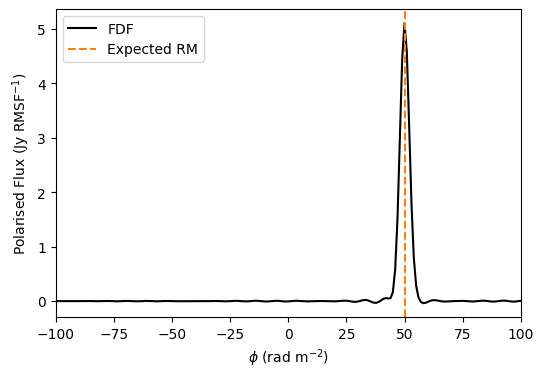

Now test an RM recovery¶
Check we recover the correct RM and sign for a linearly polarised source. First of all, make the sky model.
phi_RM, pol_frac = make_RM_skymodel(ra0, dec0)
Run that through WODEN using hyperbeam to check the test is working.
freq_reso = 0.1e+6
low_freq = 180e+6
high_freq = 210e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "MWA_FEE"
uvfits_name = f"rm_source_{primary_beam}"
cat_name = 'RM_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--array_layout={array_name} '
cmd += f'--date={date} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--MWA_FEE_delays=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] '
cmd += f'--num_threads=1 '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-02-27 09:49:21 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:21 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 300
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:22 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:22 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:22 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:22 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:22 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:22 - INFO - Precessing array layout to J2000
2025-02-27 09:49:22 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-02-27 09:49:22 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:22 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:22 - INFO - Have read in 1 components
2025-02-27 09:49:22 - INFO - After cropping there are 1 components
2025-02-27 09:49:22 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:22 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:22 - INFO - Reading set 0 sky models
2025-02-27 09:49:22 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:23 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:23 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-02-27 09:49:23 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:23 - INFO - Finished all rounds of processing
2025-02-27 09:49:23 - INFO - Full run took 0:00:01.418511
2025-02-27 09:49:23 - INFO - WODEN is done. Closing logging handlers. S'later
0
Have a look and check our visis make sense
XX, XY, YX, YY = read_uvfits('rm_source_MWA_FEE_band01.uvfits')
baseline = 0
recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline])
freqs = np.arange(low_freq, high_freq, freq_reso)
fig, axs = plt.subplots(1, 1, figsize=(8, 6))
axs.plot(freqs / 1e+6, recover_I.real, 'k-', label='Recovered I')
axs.plot(freqs / 1e+6, recover_Q.real, 'r', label='Recovered Q')
axs.plot(freqs / 1e+6, recover_U.real, 'b', label='Recovered U')
axs.plot(freqs / 1e+6, recover_V.real, 'g', label='Recovered V')
axs.legend()
axs.set_xlabel('Frequency (MHz)')
axs.set_ylabel('Flux (Jy)')
plt.show()
# fig, axs = plt.subplots(1, 1, figsize=(8, 6))
# axs.plot(freqs / 1e+6, recover_I.real, 'k-', label='Polarisation Fraction')
Now define a test, using a bunch of Emil’s RM synthesis code.
test_RM_recovery(uvfits_name, phi_RM, pol_frac, freqs)
Recovered RM: 50.0 Expected RM: 50
Recovered Pol. Fraction: 0.49999538 Expected Pol Fraction 0.5
Loverly, works a treat. Now let’s do that with EveryBeam.
freq_reso = 0.1e+6
low_freq = 180e+6
high_freq = 210e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "everybeam_MWA"
uvfits_name = f"rm_source_{primary_beam}"
cat_name = 'RM_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--array_layout={array_name} '
cmd += f'--date={date} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--beam_ms_path={ms_path} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--station_id=0 '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--num_threads=1 '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table MWA-single-timeslot.ms: 24 columns, 2628 rows
Successful readonly open of default-locked table MWA-single-timeslot.ms/SPECTRAL_WINDOW: 15 columns, 1 rows
2025-02-27 09:49:24 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:24 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 30.720 MHz
Num channels per coarse band: 300
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 3 antenna positions from array layout file: eg_array.txt
2025-02-27 09:49:25 - INFO - Setting phase centre RA,DEC 0.00455deg -26.70332deg
2025-02-27 09:49:25 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-02-27 09:49:25 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-02-27 09:49:25 - INFO - Setting initial mjd to 60512.8423726853
2025-02-27 09:49:25 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-02-27 09:49:25 - INFO - Precessing array layout to J2000
2025-02-27 09:49:25 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
MWA-single-timeslot.ms
2025-02-27 09:49:25 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:25 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:25 - INFO - Have read in 1 components
2025-02-27 09:49:25 - INFO - After cropping there are 1 components
2025-02-27 09:49:25 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:25 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:25 - INFO - Reading set 0 sky models
2025-02-27 09:49:25 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:25 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:49:25 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:26 - INFO - Sky set 0 has returned from the GPU after 0.3 seconds
2025-02-27 09:49:26 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:26 - INFO - Finished all rounds of processing
2025-02-27 09:49:26 - INFO - Full run took 0:00:01.539139
2025-02-27 09:49:26 - INFO - WODEN is done. Closing logging handlers. S'later
0
XX, XY, YX, YY = read_uvfits('rm_source_everybeam_MWA_band01.uvfits')
baseline = 0
recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline])
freqs = np.arange(low_freq, high_freq, freq_reso)
fig, axs = plt.subplots(1, 1, figsize=(8, 6))
axs.plot(freqs / 1e+6, recover_I.real, 'k-', label='Recovered I')
axs.plot(freqs / 1e+6, recover_Q.real, 'r', label='Recovered Q')
axs.plot(freqs / 1e+6, recover_U.real, 'b', label='Recovered U')
axs.plot(freqs / 1e+6, recover_V.real, 'g', label='Recovered V')
axs.legend()
axs.set_xlabel('Frequency (MHz)')
axs.set_ylabel('Flux (Jy)')
plt.show()
Looks good!
test_RM_recovery(uvfits_name, phi_RM, pol_frac, freqs)
Recovered RM: 50.0 Expected RM: 50
Recovered Pol. Fraction: 0.49999532 Expected Pol Fraction 0.5
Yup works woot
Test antenna locations¶

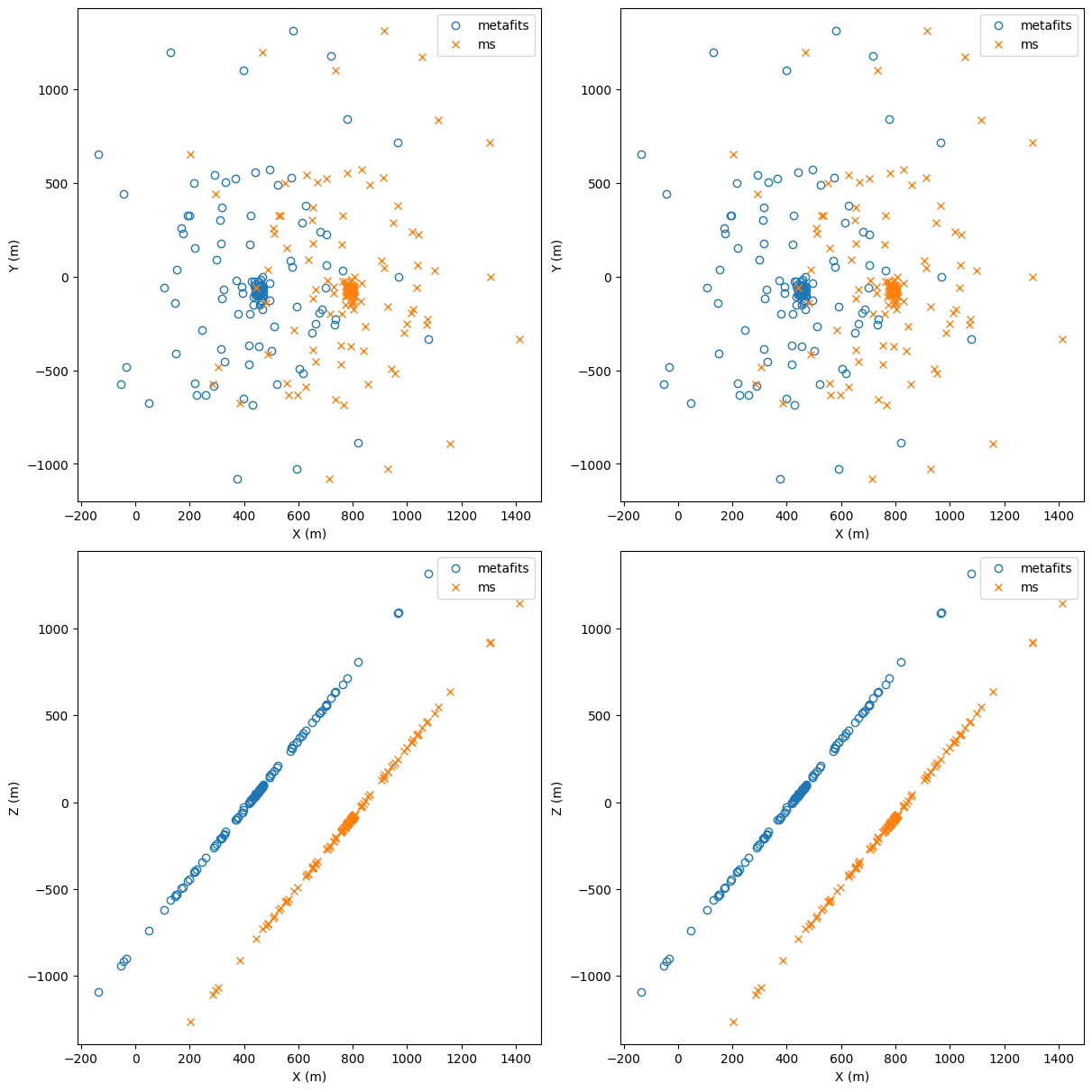

Now check to see if the antenna locations are read in correctly from a measurement set. We’ll run WODEN using the a metafits file first, and then using a measurement set that came out of hyperdrive which is calibrated data that matches the observation of the metafits. Hopefully they match up.
phi_RM, pol_frac = make_RM_skymodel(ra0, dec0)
ra0 = 60.0
date = "2015-09-10T19:44:15"
freq_reso = 0.1e+6
low_freq = 180e+6
num_freq_chans = 1
primary_beam = "MWA_FEE"
uvfits_name = f"ant_locs_{primary_beam}"
cat_name = 'RM_source.fits'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--date={date} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--metafits_filename=../../examples/metafits/1125949472_metafits.fits '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--MWA_FEE_delays=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] '
cmd += f'--num_threads=1 '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
2025-02-27 09:49:27 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:27 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 1
Start date: 2015-09-10T19:44:15
Time resolution: 2.0 (s)
Num time steps: 1
Have read 128 antenna positions from metafits file: ../../examples/metafits/1125949472_metafits.fits
2025-02-27 09:49:27 - INFO - Setting phase centre RA,DEC 60.00000deg -26.70332deg
2025-02-27 09:49:27 - INFO - Obs epoch initial LST was 42.2620215148 deg
2025-02-27 09:49:27 - INFO - Setting initial J2000 LST to 42.0911874758 deg
2025-02-27 09:49:27 - INFO - Setting initial mjd to 57275.8224074073
2025-02-27 09:49:27 - INFO - After precession initial latitude of the array is -26.7665041369 deg
2025-02-27 09:49:27 - INFO - Precessing array layout to J2000
2025-02-27 09:49:27 - INFO - Using MWA primary beam via hyperbeam with the following parameters:
hdf5 file: /home/jack-line/software/mwa_beam_files/mwa_full_embedded_element_pattern.h5
delays: [0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
setting all dipole amplitudes to 1.0
will not flag any dipoles
2025-02-27 09:49:27 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:27 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:27 - INFO - Have read in 1 components
2025-02-27 09:49:27 - INFO - After cropping there are 1 components
2025-02-27 09:49:27 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:28 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:49:28 - INFO - Reading set 0 sky models
2025-02-27 09:49:28 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:28 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:28 - INFO - Sky set 0 has returned from the GPU after 0.1 seconds
2025-02-27 09:49:28 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:28 - INFO - Finished all rounds of processing
2025-02-27 09:49:28 - INFO - Full run took 0:00:01.411345
2025-02-27 09:49:28 - INFO - WODEN is done. Closing logging handlers. S'later
0
primary_beam = "everybeam_MWA"
uvfits_name = f"ant_locs_{primary_beam}"
cat_name = 'RM_source.fits'
ms_path = '/home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms'
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--date={date} '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--beam_ms_path={ms_path} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=1 '
cmd += f'--IAU_order '
cmd += f'--station_id=0 '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table /home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms: 23 columns, 115584 rows
Successful readonly open of default-locked table /home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms/SPECTRAL_WINDOW: 15 columns, 1 rows
Successful readonly open of default-locked table /home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms/ANTENNA: 13 columns, 128 rows
2025-02-27 09:49:29 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:29 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 180.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 30.720 MHz
Num channels per coarse band: 1
Start date: 2015-09-10T19:44:15
Time resolution: 2.0 (s)
Num time steps: 1
Have read 128 antenna positions from measurement set: /home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms
2025-02-27 09:49:30 - INFO - Setting phase centre RA,DEC 60.00000deg -26.70332deg
2025-02-27 09:49:30 - INFO - Obs epoch initial LST was 42.2620215148 deg
2025-02-27 09:49:30 - INFO - Setting initial J2000 LST to 42.0911874758 deg
2025-02-27 09:49:30 - INFO - Setting initial mjd to 57275.8224074073
2025-02-27 09:49:30 - INFO - After precession initial latitude of the array is -26.7665041369 deg
2025-02-27 09:49:30 - INFO - Precessing array layout to J2000
2025-02-27 09:49:30 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
/home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms
2025-02-27 09:49:30 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:30 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:30 - INFO - Have read in 1 components
2025-02-27 09:49:30 - INFO - After cropping there are 1 components
2025-02-27 09:49:30 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:30 - INFO - Running in GPU mode.
Will read sky model using 8 threads
There are 1 sets of sky models to run
2025-02-27 09:49:30 - INFO - Reading set 0 sky models
2025-02-27 09:49:30 - INFO - From sky set 0 thread num 1 reading 0 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:30 - WARNING - Sky model reading thread 1 has no work to do
2025-02-27 09:49:30 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:30 - INFO - From sky set 0 thread num 2 reading 0 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:30 - WARNING - Sky model reading thread 2 has no work to do
2025-02-27 09:49:30 - INFO - From sky set 0 thread num 3 reading 0 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:30 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:49:30 - WARNING - Sky model reading thread 3 has no work to do
2025-02-27 09:49:30 - INFO - From sky set 0 thread num 7 reading 0 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:30 - INFO - From sky set 0 thread num 4 reading 0 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:30 - WARNING - Sky model reading thread 7 has no work to do
2025-02-27 09:49:30 - WARNING - Sky model reading thread 4 has no work to do
2025-02-27 09:49:30 - INFO - From sky set 0 thread num 5 reading 0 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:30 - WARNING - Sky model reading thread 5 has no work to do
2025-02-27 09:49:30 - INFO - From sky set 0 thread num 6 reading 0 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:30 - WARNING - Sky model reading thread 6 has no work to do
2025-02-27 09:49:30 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:31 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-02-27 09:49:31 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:49:31 - INFO - Finished all rounds of processing
2025-02-27 09:49:31 - INFO - Full run took 0:00:01.586906
2025-02-27 09:49:31 - INFO - WODEN is done. Closing logging handlers. S'later
0
Read in the XYZ positions from the resultant uvfits files, as well as the uvw coordinates.
def read_xyz_uvfits(uvfits_name):
with fits.open(uvfits_name) as hdu:
xyz = hdu[1].data['STABXYZ']
uu = hdu[0].data['UU']*C
vv = hdu[0].data['VV']*C
ww = hdu[0].data['WW']*C
return xyz, uu, vv, ww
xyz_meta, uu_meta, vv_meta, ww_meta = read_xyz_uvfits('ant_locs_MWA_FEE_band01.uvfits')
xyz_ms, uu_ms, vv_ms, ww_ms = read_xyz_uvfits('ant_locs_everybeam_MWA_band01.uvfits')
First up compare the XYZ coords
def plot(xyz, ax1, ax2, marker, label):
ax1.plot(xyz[:,0], xyz[:,1], marker, mfc='none', label=label)
ax2.plot(xyz[:,0], xyz[:,2], marker, mfc='none', label=label)
fig, axs = plt.subplots(2, 2, figsize=(12, 12), layout='constrained')
plot(xyz_meta, axs[0,0], axs[1,0], 'o', 'metafits')
plot(xyz_ms, axs[0,0], axs[1,0], 'x', 'ms')
plot(xyz_meta, axs[0,1], axs[1,1], 'o', 'metafits')
plot(xyz_ms, axs[0,1], axs[1,1], 'x', 'ms')
for ax in axs.flatten():
ax.legend()
axs[0,0].set_xlabel('X (m)')
axs[0,0].set_ylabel('Y (m)')
axs[0,1].set_xlabel('X (m)')
axs[0,1].set_ylabel('Y (m)')
axs[1,0].set_xlabel('X (m)')
axs[1,0].set_ylabel('Z (m)')
axs[1,1].set_xlabel('X (m)')
axs[1,1].set_ylabel('Z (m)')
plt.show()
Ah bummer there is some kind of central positional shift in the XYZs. It is unclear if this is a WODEN or a hyperdrive issue. The layouts are exactly the same, just offset.
np.allclose(xyz_meta, xyz_ms, atol=1e-3, rtol=1e-6)
False
Now compare the uv coords.
fig, axs = plt.subplots(1, 2, figsize=(12, 6), layout='constrained')
for ax in axs:
ax.plot(uu_meta, vv_meta, 'C0o', mfc='none', label='metafits')
# ax.plot(-uu_meta, -vv_meta, 'C0o', mfc='none')
ax.plot(uu_ms, vv_ms, 'C1x', mfc='none', label='ms')
# ax.plot(-uu_ms, -vv_ms, 'C1x', mfc='none')
ax.set_xlabel('UU (m)')
ax.set_ylabel('VV (m)')
ax.legend()
axs[1].set_xlim(-100, 100)
axs[1].set_ylim(-100, 100)
plt.show()

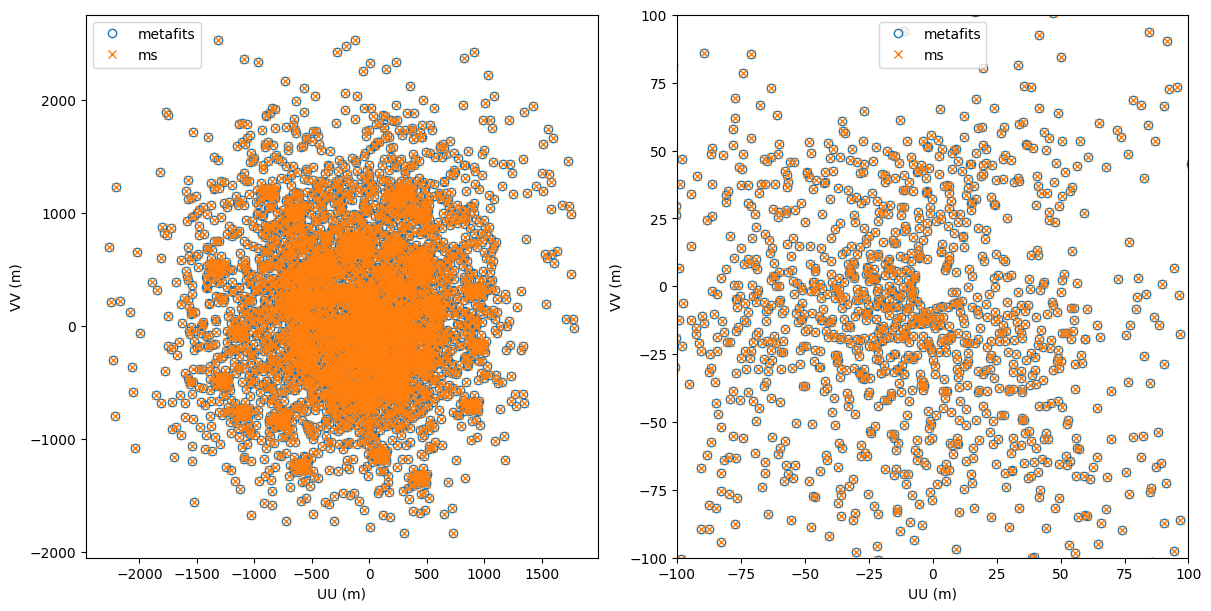

print(f"u coords max, mean diff {np.max(np.abs(uu_meta - uu_ms)):.2e}, {np.mean(np.abs(uu_meta - uu_ms)):.2e} (metres)")
print(f"v coords max, mean diff {np.max(np.abs(vv_meta - vv_ms)):.2e}, {np.mean(np.abs(vv_meta - vv_ms)):.2e} (metres)")
print(f"w coords max, mean diff {np.max(np.abs(ww_meta - ww_ms)):.2e}, {np.mean(np.abs(ww_meta - ww_ms)):.2e} (metres)")
u coords max, mean diff 8.79e-03, 3.11e-04 (metres)
v coords max, mean diff 8.01e-03, 2.91e-04 (metres)
w coords max, mean diff 2.32e-03, 9.60e-05 (metres)
The layout might be shifted, but the layout is pretty much indentical, as we end up with the same uv coordinates. So that’s good.
Test source positions¶
With the array offset seen, we need to check that the source positions are still coming out correctly. Make a simulation with a grid of sources, and check that the source positions are coming out correctly.
nside=5
half_width = 5
ra0 = 60.0
dec0 = -30.0
ras = np.linspace(ra0 - half_width, ra0 + half_width, nside)
decs = np.linspace(dec0 - half_width, dec0 + half_width, nside)
ras, decs = np.meshgrid(ras, decs)
ras, decs = ras.flatten(), decs.flatten()
num_comps = len(ras)
ras = ras.flatten()
decs = decs.flatten()
c_ids = Column(data=np.array(['source']*num_comps), name='UNQ_SOURCE_ID', dtype='|S20')
c_names = Column(data=np.array([f'source_C{i:04d}' for i in range(num_comps)]), name='NAME', dtype='|S20')
##Component position
c_ras = Column(data=ras, name='RA')
c_decs = Column(data=decs, name='DEC')
##This says we have a point source
c_comp_types = Column(data=np.array(['P']*num_comps, dtype='|S1'), name="COMP_TYPE", dtype='|S1')
##This says we have a Stokes I power-law SED
c_mod_types = Column(data=np.array(['pl']*num_comps, dtype='|S3'), name="MOD_TYPE", dtype='|S3')
##Set everything as a flat spectrum 1 Jy stokes I source. That way we can image it and see the beam pattern
c_stokes_I_ref = Column(data=np.ones(num_comps), name='NORM_COMP_PL')
c_stokes_I_SI = Column(data=np.zeros(num_comps), name='ALPHA_PL')
cols = [c_ids, c_names, c_ras, c_decs, c_comp_types, c_mod_types, c_stokes_I_ref, c_stokes_I_SI]
main_table = Table(cols)
cat_name = 'check_positions.fits'
main_table.write(cat_name, format='fits', overwrite=True)
primary_beam = "everybeam_MWA"
uvfits_name = f"check_positions_{primary_beam}"
cat_name = 'check_positions.fits'
ms_path = '/home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms'
num_freq_chans = 10
freq_reso = 100e+3
low_freq = 150e+6
ra0 = 60.0
dec0 = -30.0
cmd = 'run_woden.py '
cmd += f'--ra0={ra0} '
cmd += f'--dec0={dec0} '
cmd += f'--metafits_filename=../../examples/metafits/1125949472_metafits.fits '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--beam_ms_path={ms_path} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps=5 '
cmd += f'--IAU_order '
cmd += f'--station_id=0 '
cmd += f'--cat_filename={cat_name} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table /home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms/ANTENNA: 13 columns, 128 rows
2025-02-27 09:49:33 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:49:33 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 150.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 10
Start date: 2015-09-10T19:44:15
Time resolution: 2.0 (s)
Num time steps: 5
Have read 128 antenna positions from measurement set: /home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms
2025-02-27 09:49:33 - INFO - Setting phase centre RA,DEC 60.00000deg -30.00000deg
2025-02-27 09:49:33 - INFO - Obs epoch initial LST was 42.2620215148 deg
2025-02-27 09:49:33 - INFO - Setting initial J2000 LST to 42.0911874758 deg
2025-02-27 09:49:33 - INFO - Setting initial mjd to 57275.8224074073
2025-02-27 09:49:33 - INFO - After precession initial latitude of the array is -26.7665041369 deg
2025-02-27 09:49:33 - INFO - Precessing array layout to J2000
2025-02-27 09:49:33 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
/home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms
2025-02-27 09:49:33 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:49:33 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:49:33 - INFO - Have read in 25 components
2025-02-27 09:49:33 - INFO - After cropping there are 25 components
2025-02-27 09:49:33 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:49:34 - INFO - Running in GPU mode.
Will read sky model using 8 threads
There are 1 sets of sky models to run
2025-02-27 09:49:34 - INFO - Reading set 0 sky models
2025-02-27 09:49:34 - INFO - From sky set 0 thread num 0 reading 4 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:34 - INFO - From sky set 0 thread num 2 reading 4 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:34 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:49:34 - INFO - From sky set 0 thread num 1 reading 4 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:34 - INFO - Finshed sky set 0 reading thread num 2 in 0.0 seconds
2025-02-27 09:49:34 - INFO - Finshed sky set 0 reading thread num 1 in 0.0 seconds
2025-02-27 09:49:34 - INFO - From sky set 0 thread num 5 reading 4 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:34 - INFO - From sky set 0 thread num 4 reading 4 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:34 - INFO - Finshed sky set 0 reading thread num 5 in 0.0 seconds
2025-02-27 09:49:34 - INFO - From sky set 0 thread num 3 reading 4 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:34 - INFO - From sky set 0 thread num 6 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:34 - INFO - From sky set 0 thread num 7 reading 0 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:49:34 - WARNING - Sky model reading thread 7 has no work to do
2025-02-27 09:49:34 - INFO - Finshed sky set 0 reading thread num 4 in 0.0 seconds
2025-02-27 09:49:34 - INFO - Finshed sky set 0 reading thread num 3 in 0.0 seconds
2025-02-27 09:49:34 - INFO - Finshed sky set 0 reading thread num 6 in 0.0 seconds
2025-02-27 09:49:34 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:49:37 - INFO - Sky set 0 has returned from the GPU after 3.2 seconds
2025-02-27 09:49:37 - INFO - Have completed 25 of 25 components calcs (100.0%)
2025-02-27 09:49:37 - INFO - Finished all rounds of processing
2025-02-27 09:49:37 - INFO - Full run took 0:00:04.843823
2025-02-27 09:49:37 - INFO - WODEN is done. Closing logging handlers. S'later
0
cmd = "woden_uv2ms.py "
cmd += " --uvfits_prepend=check_positions_everybeam_MWA_band "
cmd += " --band_nums=1 "
call(cmd, shell=True)
cmd = "wsclean -name check_positions_everybeam_MWA -size 2048 2048 -niter 2000 "
cmd += " -auto-threshold 0.5 -auto-mask 3 "
cmd += " -pol I -multiscale -weight briggs 0 -scale 0.01 -j 12 -mgain 0.85 "
cmd += " -no-update-model-required "
cmd += " check_positions_everybeam_MWA_band*.ms "
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/woden_uv2ms.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
The telescope frame is set to '????', which generally indicates ignorance. Defaulting the frame to 'itrs', but this may lead to other warnings or errors.
Writing in the MS file that the units of the data are uncalib, although some CASA process will ignore this and assume the units are all in Jy (or may not know how to handle data in these units).
WSClean version 3.4 (2023-10-11)
This software package is released under the GPL version 3.
Author: André Offringa (offringa@gmail.com).
No corrected data in first measurement set: tasks will be applied on the data column.
=== IMAGING TABLE ===
# Pol Ch JG ²G FG FI In Freq(MHz)
| Independent group:
+-+-J- 0 I 0 0 0 0 0 0 150-151 (10)
Reordering check_positions_everybeam_MWA_band01.ms into 1 x 1 parts.
Reordering: 0%....10%....20%....30%....40%....50%....60%....70%....80%....90%....100%
Initializing model visibilities: 0%....10%....20%....30%....40%....50%....60%....70%....80%....90%....100%
== Constructing PSF ==
Precalculating weights for Briggs'(0) weighting...
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Detected 62.7 GB of system memory, usage not limited.
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Determining min and max w & theoretical beam size... DONE (w=[6.6711e-05:337.434] lambdas, maxuvw=1446.37 lambda)
Theoretic beam = 2.38'
Minimal inversion size: 1243 x 1243, using optimal: 1260 x 1260
Loading data in memory...
Gridding 40640 rows...
Gridded visibility count: 406400
Fitting beam... major=4.11', minor=3.41', PA=106.37 deg, theoretical=2.38'.
Writing psf image... DONE
== Constructing image ==
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Loading data in memory...
Gridding 40640 rows...
Gridded visibility count: 406400
Writing dirty image...
== Deconvolving (1) ==
Estimated standard deviation of background noise: 26.55 mJy
Scale info:
- Scale 0, bias factor=1, psfpeak=1, gain=0.1, kernel peak=0.0471759
- Scale 16, bias factor=1.7, psfpeak=0.414879, gain=0.241034, kernel peak=0.014288
- Scale 32, bias factor=2.8, psfpeak=0.166796, gain=0.599533, kernel peak=0.00396995
- Scale 63, bias factor=4.6, psfpeak=0.0661288, gain=1.5122, kernel peak=0.00104919
- Scale 127, bias factor=7.7, psfpeak=0.0323536, gain=3.09084, kernel peak=0.000269884
- Scale 254, bias factor=12.9, psfpeak=0.0129898, gain=7.69833, kernel peak=6.94583e-05
- Scale 507, bias factor=21.4, psfpeak=0.00352564, gain=28.3636, kernel peak=1.7493e-05
- Scale 1014, bias factor=35.7, psfpeak=0.00079668, gain=125.521, kernel peak=4.39054e-06
RMS per scale: {0: 28.66 mJy, 16: 15.28 mJy, 32: 9.26 mJy, 63: 6.04 mJy, 127: 4.1 mJy, 254: 2.1 mJy, 507: 781.75 µJy, 1014: 539.06 µJy}
Starting multi-scale cleaning. Start peak=985.55 mJy, major iteration threshold=147.83 mJy
Iteration 19, scale 0 px : 782.56 mJy at 808,1022
Iteration 56, scale 0 px : 621.81 mJy at 1456,1014
Iteration 109, scale 0 px : 497 mJy at 1477,1513
Iteration 164, scale 0 px : 395.69 mJy at 1445,765
Iteration 216, scale 0 px : 316.3 mJy at 614,516
Iteration 272, scale 0 px : 252.42 mJy at 1476,1514
Iteration 328, scale 0 px : 201.22 mJy at 819,522
Iteration 385, scale 0 px : 160.83 mJy at 1251,1521
Subminor loop is near minor loop threshold. Initiating countdown.
(11) Iteration 411, scale 0 px : 147.9 mJy at 1433,516
(10) Iteration 412, scale 0 px : 147.02 mJy at 1229,523
Minor loop finished, continuing cleaning after inversion/prediction round.
Assigning from 1 to 1 channels...
== Converting model image to visibilities ==
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Predicting 40640 rows...
Writing...
== Constructing image ==
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Loading data in memory...
Gridding 40640 rows...
Gridded visibility count: 406400
== Deconvolving (2) ==
Estimated standard deviation of background noise: 5.36 mJy
Scale info:
- Scale 0, bias factor=1, psfpeak=1, gain=0.1, kernel peak=0.0471759
- Scale 16, bias factor=1.7, psfpeak=0.414879, gain=0.241034, kernel peak=0.014288
- Scale 32, bias factor=2.8, psfpeak=0.166796, gain=0.599533, kernel peak=0.00396995
- Scale 63, bias factor=4.6, psfpeak=0.0661288, gain=1.5122, kernel peak=0.00104919
- Scale 127, bias factor=7.7, psfpeak=0.0323536, gain=3.09084, kernel peak=0.000269884
- Scale 254, bias factor=12.9, psfpeak=0.0129898, gain=7.69833, kernel peak=6.94583e-05
- Scale 507, bias factor=21.4, psfpeak=0.00352564, gain=28.3636, kernel peak=1.7493e-05
- Scale 1014, bias factor=35.7, psfpeak=0.00079668, gain=125.521, kernel peak=4.39054e-06
RMS per scale: {0: 5.72 mJy, 16: 2.78 mJy, 32: 1.65 mJy, 63: 1.08 mJy, 127: 734.21 µJy, 254: 381.49 µJy, 507: 150.56 µJy, 1014: 92.92 µJy}
Starting multi-scale cleaning. Start peak=194.25 mJy, major iteration threshold=29.14 mJy
Iteration 426, scale 0 px : 155.02 mJy at 603,765
Iteration 467, scale 0 px : 123.77 mJy at 1024,525
Iteration 516, scale 0 px : 98.73 mJy at 820,522
Iteration 569, scale 0 px : 78.84 mJy at 1245,1272
Iteration 622, scale 0 px : 62.76 mJy at 808,1022
Iteration 679, scale 0 px : 50.04 mJy at 1457,1014
Iteration 732, scale 0 px : 40.02 mJy at 1024,525
Iteration 792, scale 0 px : -32.81 mJy at 816,769
Subminor loop is near minor loop threshold. Initiating countdown.
(11) Iteration 828, scale 0 px : -29.27 mJy at 1091,153
(10) Iteration 830, scale 0 px : 29.04 mJy at 801,1272
Minor loop finished, continuing cleaning after inversion/prediction round.
Assigning from 1 to 1 channels...
== Converting model image to visibilities ==
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Predicting 40640 rows...
Writing...
== Constructing image ==
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Loading data in memory...
Gridding 40640 rows...
Gridded visibility count: 406400
== Deconvolving (3) ==
Estimated standard deviation of background noise: 1.54 mJy
Scale info:
- Scale 0, bias factor=1, psfpeak=1, gain=0.1, kernel peak=0.0471759
- Scale 16, bias factor=1.7, psfpeak=0.414879, gain=0.241034, kernel peak=0.014288
- Scale 32, bias factor=2.8, psfpeak=0.166796, gain=0.599533, kernel peak=0.00396995
- Scale 63, bias factor=4.6, psfpeak=0.0661288, gain=1.5122, kernel peak=0.00104919
- Scale 127, bias factor=7.7, psfpeak=0.0323536, gain=3.09084, kernel peak=0.000269884
- Scale 254, bias factor=12.9, psfpeak=0.0129898, gain=7.69833, kernel peak=6.94583e-05
- Scale 507, bias factor=21.4, psfpeak=0.00352564, gain=28.3636, kernel peak=1.7493e-05
- Scale 1014, bias factor=35.7, psfpeak=0.00079668, gain=125.521, kernel peak=4.39054e-06
RMS per scale: {0: 1.61 mJy, 16: 465.73 µJy, 32: 242.16 µJy, 63: 155.3 µJy, 127: 107.99 µJy, 254: 60.49 µJy, 507: 27.38 µJy, 1014: 13.22 µJy}
Starting multi-scale cleaning. Start peak=44.23 mJy, major iteration threshold=6.63 mJy
Iteration 837, scale 0 px : 35.07 mJy at 1240,1022
Iteration 869, scale 0 px : -29.69 mJy at 816,770
Iteration 912, scale 0 px : -23.91 mJy at 575,1514
Iteration 972, scale 0 px : 19.11 mJy at 1024,1023
Iteration 1048, scale 0 px : -15.42 mJy at 1479,1510
Iteration 1154, scale 0 px : -13.21 mJy at 1474,1517
Iteration 1262, scale 0 px : -11.06 mJy at 599,766
Iteration 1415, scale 0 px : -9.17 mJy at 1024,520
Iteration 1724, scale 0 px : -7.74 mJy at 1016,1024
Subminor loop is near minor loop threshold. Initiating countdown.
(11) Iteration 2000, scale 0 px : -6.98 mJy at 1255,1524
Cleaning finished because maximum number of iterations was reached.
Auto-masking threshold reached; continuing next major iteration with deeper threshold and mask.
Maximum number of minor deconvolution iterations was reached: not continuing deconvolution.
Assigning from 1 to 1 channels...
Writing model image...
== Converting model image to visibilities ==
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Predicting 40640 rows...
Writing...
== Constructing image ==
Opening reordered part 0 spw 0 for check_positions_everybeam_MWA_band01.ms
Loading data in memory...
Gridding 40640 rows...
Gridded visibility count: 406400
3 major iterations were performed.
Rendering sources to restored image (beam=3.41'-4.11', PA=106.37 deg)... DONE
Writing restored image... DONE
Multi-scale cleaning summary:
- Scale 0 px, nr of components cleaned: 2000 (19.27 Jy)
- Scale 16 px, nr of components cleaned: 0 (0 Jy)
- Scale 32 px, nr of components cleaned: 0 (0 Jy)
- Scale 63 px, nr of components cleaned: 0 (0 Jy)
- Scale 127 px, nr of components cleaned: 0 (0 Jy)
- Scale 254 px, nr of components cleaned: 0 (0 Jy)
- Scale 507 px, nr of components cleaned: 0 (0 Jy)
- Scale 1014 px, nr of components cleaned: 0 (0 Jy)
Total: 2000 components (19.27 Jy)
Inversion: 00:00:02.511806, prediction: 00:00:01.258375, deconvolution: 00:00:11.941956
Cleaning up temporary files...
0
with fits.open('check_positions_everybeam_MWA-image.fits') as hdu:
image = np.squeeze(hdu[0].data)
wcs = WCS(hdu[0].header).celestial
fig, axs = plt.subplots(1, 1, figsize=(12, 8), subplot_kw={'projection': wcs})
im = axs.imshow(image, origin='lower', cmap='Blues_r')#, vmin=0, vmax=1.0)
plt.colorbar(im, ax=axs, label='Jy/beam')
# half_width = 600
# axs.set_xlim(1024-half_width, 1024+half_width)
# axs.set_ylim(1024-half_width, 1024+half_width)
plt.grid(alpha=0.5)
plt.show()

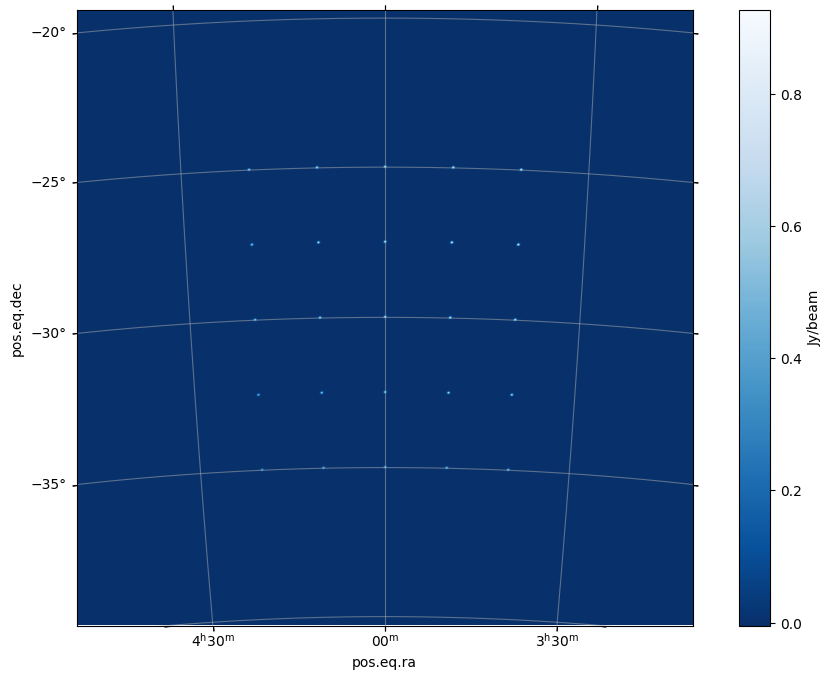

WARNING: FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 57275.822407 from DATE-OBS'. [astropy.wcs.wcs]
Everything seems to be in the correct RA/Dec position, so that’s schweet.
Try off zenith pointings¶
Now we’ll test whether we can do off-zenith pointings. We’ll also test that we can run multiple time steps and frequencies. The measurement set I’m using is real calibrated data from the MWA. Unfortunately, it’s 2GB, so there’s no good way to include that with the WODEN repo. If you want to run this test, you should be able to get some data from the MWA ASVO https://asvo.mwatelescope.org/, and then convert that into a measurement set using pyuvdata for example.
ra0 = 60.0
dec0 = -30.0
date = "2015-09-10T19:44:15"
observing_time = Time(date, scale='utc', location=mwa_location)
##Setup a grid of RA/Dec on the sky
nside=50
radec_reso = 120/nside
header, wcs = create_WCS(ra0, dec0, nside, radec_reso)
x_mesh, y_mesh = np.meshgrid(np.arange(nside), np.arange(nside))
ras, decs = wcs.all_pix2world(x_mesh, y_mesh, 0)
ras = np.radians(ras.flatten())
decs = np.radians(decs.flatten())
num_comps = len(ras)
##Do a single freqs and time and beam
all_freqs = np.array([100e+6, 200e+6])
all_times = np.array([observing_time, observing_time + TimeDelta(2*3600.0, format='sec')])
num_beams = 1
station_ids = [0]
lsts = []
latitudes = []
for obs_time in all_times:
LST = obs_time.sidereal_time('mean')
lst_current = np.radians(LST.value*15)
lst_J2000, latitude_J2000 = RTS_Precess_LST_Lat_to_J2000(
lst_current,
np.radians(MWA_LAT),
obs_time.mjd)
lsts.append(lst_J2000)
latitudes.append(latitude_J2000)
coeff_path= os.environ["MWA_FEE_HDF5"]
ms_path = '/home/jack-line/Dropbox/work/test_WODEN/everybeam/run_MWA_beam/hypcal_1125949472.ms'
apply_beam_norms = False
reorder_jones = True
parallactic_rotate = True
num_threads = 8
all_jones = run_everybeam_over_threads(num_threads, ms_path,
coeff_path,
ras, decs,
np.radians(ra0), np.radians(dec0),
latitudes, lsts,
all_times, all_freqs, station_ids,
apply_beam_norms=apply_beam_norms,
iau_order=iau_order,
parallactic_rotate=parallactic_rotate)
Thread 0 processing coords 0 to 313Thread 1 processing coords 313 to 626Thread 3 processing coords 939 to 1252Thread 2 processing coords 626 to 939Thread 5 processing coords 1565 to 1878
Thread 4 processing coords 1252 to 1565Thread 6 processing coords 1878 to 2191Thread 7 processing coords 2191 to 2504
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
Thread 7 finished
Thread 6 finished
Thread 5 finished
Thread 4 finished
Thread 0 finished
Thread 1 finished
Thread 2 finished
Thread 3 finished
beam_ind = 0
for time_ind in range(len(all_times)):
for freq_ind in range(len(all_freqs)):
this_gx = all_jones[beam_ind, time_ind, freq_ind, :, 0, 0]
this_Dx = all_jones[beam_ind, time_ind, freq_ind, :, 0, 1]
this_Dy = all_jones[beam_ind, time_ind, freq_ind, :, 1, 0]
this_gy = all_jones[beam_ind, time_ind, freq_ind, :, 1, 1]
this_gx.shape = (nside, nside)
this_Dx.shape = (nside, nside)
this_Dy.shape = (nside, nside)
this_gy.shape = (nside, nside)
plot_jones_on_sky(this_gx, this_Dx, this_Dy, this_gy, wcs, title="everybeam with parallactic rotation")

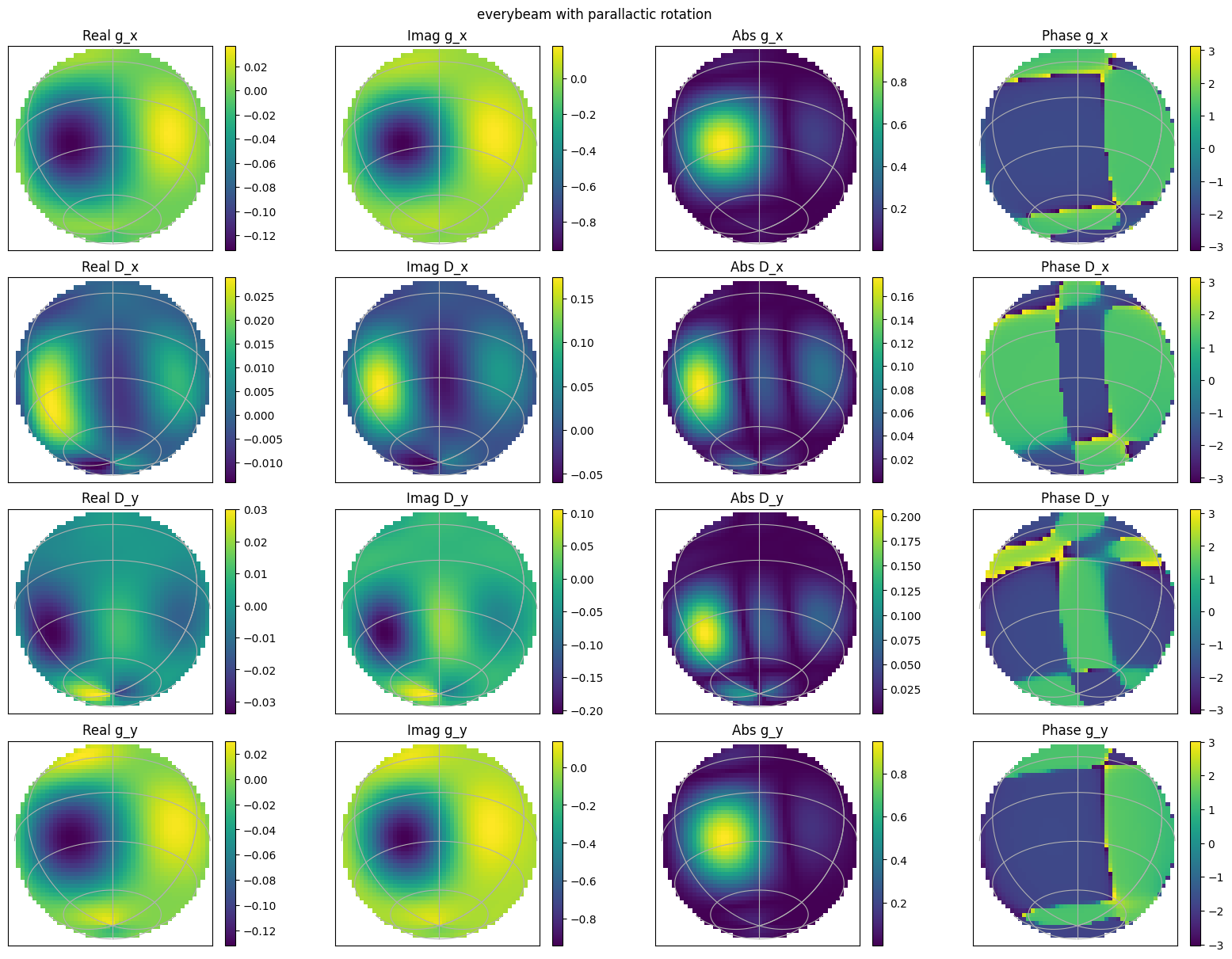

Double check what it should look like using hyperdrive, where we can explicitly put the delays that we want in.
##use this erfa function to convert to azimuth and elevation
##were using degrees, but erfa uses rads, so convert here
for this_time in all_times:
for freq in all_freqs:
has = np.radians(this_time.sidereal_time('mean').value*15.0) - ras
az_grid, els = erfa.hd2ae(has, decs, np.radians(MWA_LAT))
za_grid = np.pi/2 - els
beam = mwa_hyperbeam.FEEBeam(hdf5_file=os.environ["MWA_FEE_HDF5"])
parallactic_rotation = True
delays = [0,2,4,6,0,2,4,6,0,2,4,6,0,2,4,6]
jones = beam.calc_jones_array(az_grid, za_grid, freq, delays, [1]*16, True, np.radians(MWA_LAT), parallactic_rotation)
all_gx = jones[:,0]
all_Dx = jones[:,1]
all_Dy = jones[:,2]
all_gy = jones[:,3]
all_gx.shape = (nside, nside)
all_Dx.shape = (nside, nside)
all_Dy.shape = (nside, nside)
all_gy.shape = (nside, nside)
plot_jones_on_sky(all_gx, all_Dx, all_Dy, all_gy, wcs, title="hyperbeam with parallactic rotation")
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)
/home/jack-line/software/WODEN_dev/woden_dev/lib/python3.12/site-packages/erfa/core.py:18088: RuntimeWarning: invalid value encountered in hd2ae
az, el = ufunc.hd2ae(ha, dec, phi)

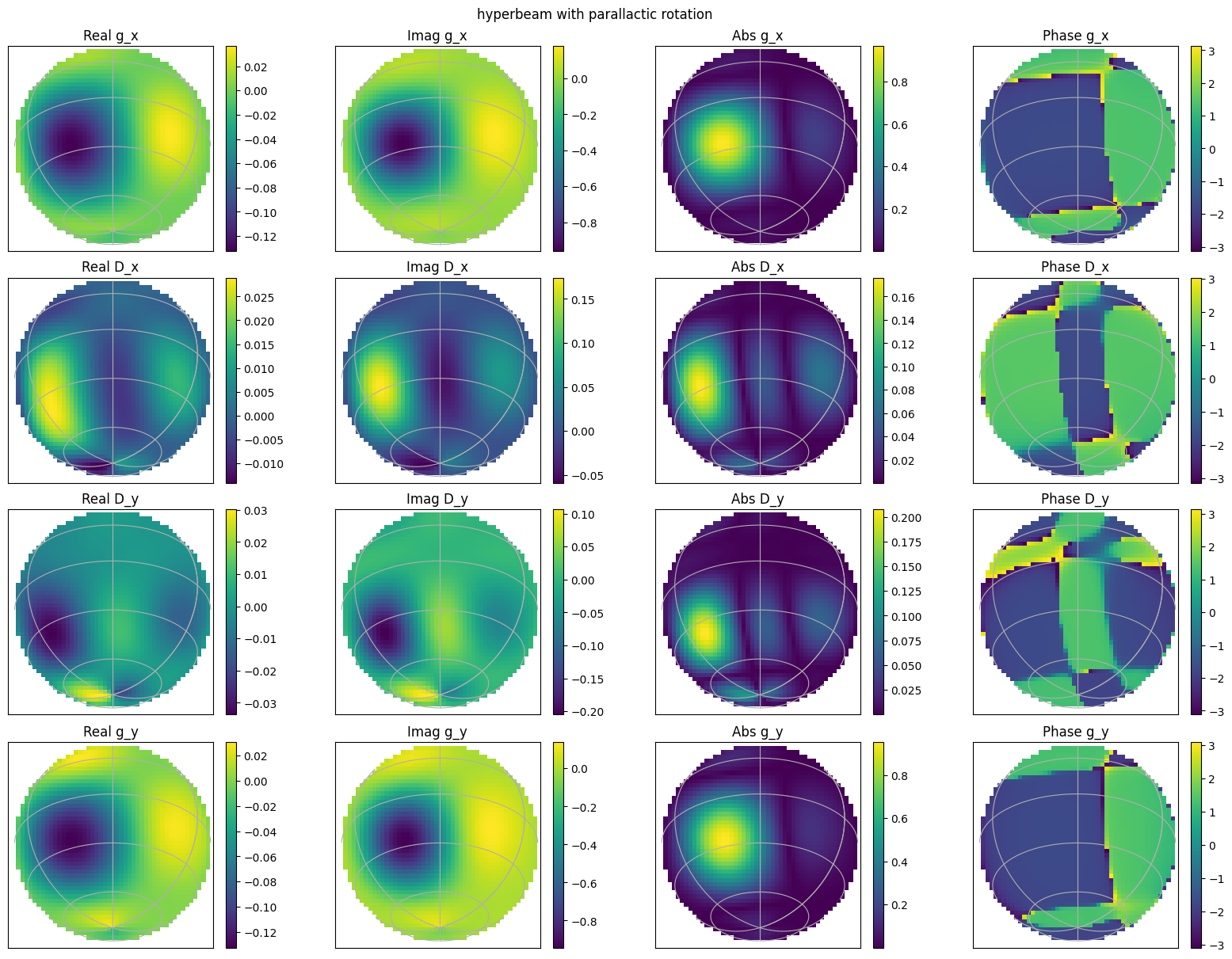

Interpolated beam¶
Can we use the interpolated Daniel Ung .h5 file for highband? Let’s try it.
from astropy.table import Column, Table
import numpy as np
import os
sing_ra = 15.0
sing_dec = -40.0
ras = [sing_ra]
decs = [sing_dec]
num_comps = len(ras)
c_ids = Column(data=np.array(['source']*num_comps), name='UNQ_SOURCE_ID', dtype='|S20')
c_names = Column(data=np.array([f'source_C{i:04d}' for i in range(num_comps)]), name='NAME', dtype='|S20')
##Component position
c_ras = Column(data=ras, name='RA')
c_decs = Column(data=decs, name='DEC')
##This says we have a point source
c_comp_types = Column(data=np.array(['P']*num_comps, dtype='|S1'), name="COMP_TYPE", dtype='|S1')
##This says we have a Stokes I power-law SED
c_mod_types = Column(data=np.array(['pl']*num_comps, dtype='|S3'), name="MOD_TYPE", dtype='|S3')
##Set everything as a flat spectrum 1 Jy stokes I source. That way we can image it and see the beam pattern
c_stokes_I_ref = Column(data=np.ones(num_comps), name='NORM_COMP_PL')
c_stokes_I_SI = Column(data=np.zeros(num_comps), name='ALPHA_PL')
cols = [c_ids, c_names, c_ras, c_decs, c_comp_types, c_mod_types, c_stokes_I_ref, c_stokes_I_SI]
main_table = Table(cols)
single_cat = 'single_point.fits'
main_table.write(single_cat, format='fits', overwrite=True)
ra0=0.0
dec0=-26.7
date="2024-07-21T20:13:00"
primary_beam="everybeam_MWA"
num_times=1
num_freq_chans=390
low_freq=167e+6
ms_path="MWA-single-timeslot.ms"
uvfits_name="interp_run_woden"
freq_reso=80e+3
args = []
interp_h5 = os.environ['MWA_FEE_HDF5_INTERP']
cmd = 'run_woden.py '
cmd += f'--ra0={sing_ra} '
cmd += f'--dec0={-sing_dec} '
cmd += f'--metafits_filename=../../examples/metafits/1125949472_metafits.fits '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--beam_ms_path={ms_path} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps={num_times} '
cmd += f'--IAU_order '
cmd += f'--station_id=0 '
cmd += f'--cat_filename={single_cat} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--num_threads=1 '
cmd += f'--hdf5_beam_path={interp_h5} '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table MWA-single-timeslot.ms/ANTENNA: 8 columns, 128 rows
2025-02-27 09:50:57 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:50:57 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 167.000 MHz
Channel frequency resolution: 80.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 390
Start date: 2015-09-10T19:44:15
Time resolution: 2.0 (s)
Num time steps: 1
Have read 128 antenna positions from measurement set: MWA-single-timeslot.ms
2025-02-27 09:50:58 - INFO - Setting phase centre RA,DEC 15.00000deg 40.00000deg
2025-02-27 09:50:58 - INFO - Obs epoch initial LST was 42.2620215148 deg
2025-02-27 09:50:58 - INFO - Setting initial J2000 LST to 42.0911874758 deg
2025-02-27 09:50:58 - INFO - Setting initial mjd to 57275.8224074073
2025-02-27 09:50:58 - INFO - After precession initial latitude of the array is -26.7665041369 deg
2025-02-27 09:50:58 - INFO - Precessing array layout to J2000
2025-02-27 09:50:58 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
MWA-single-timeslot.ms
2025-02-27 09:50:58 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:50:58 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:50:58 - INFO - Have read in 1 components
2025-02-27 09:50:58 - INFO - After cropping there are 1 components
2025-02-27 09:50:58 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:50:58 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:50:58 - INFO - Reading set 0 sky models
2025-02-27 09:50:58 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:50:58 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:50:59 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:51:02 - INFO - Sky set 0 has returned from the GPU after 3.4 seconds
2025-02-27 09:51:02 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:51:02 - INFO - Finished all rounds of processing
2025-02-27 09:51:03 - INFO - Full run took 0:00:05.783925
2025-02-27 09:51:03 - INFO - WODEN is done. Closing logging handlers. S'later
0
coarse_h5 = os.environ['MWA_FEE_HDF5']
uvfits_name = 'coarse_run_woden'
cmd = 'run_woden.py '
cmd += f'--ra0={sing_ra} '
cmd += f'--dec0={-sing_dec} '
cmd += f'--metafits_filename=../../examples/metafits/1125949472_metafits.fits '
cmd += f'--output_uvfits_prepend={uvfits_name} '
cmd += f'--primary_beam={primary_beam} '
cmd += f'--beam_ms_path={ms_path} '
cmd += f'--freq_res={freq_reso} '
cmd += f'--band_nums=1 '
cmd += f'--num_time_steps={num_times} '
cmd += f'--IAU_order '
cmd += f'--station_id=0 '
cmd += f'--cat_filename={single_cat} '
cmd += f'--lowest_channel_freq={low_freq} '
cmd += f'--num_freq_channels={num_freq_chans} '
cmd += f'--time_res=2 '
cmd += f'--num_threads=1 '
cmd += f'--hdf5_beam_path={coarse_h5} '
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table MWA-single-timeslot.ms/ANTENNA: 8 columns, 128 rows
2025-02-27 09:51:04 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 09:51:04 - INFO - Input arguments after parsing:
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 167.000 MHz
Channel frequency resolution: 80.000 kHz
Coarse band bandwidth: 1.280 MHz
Num channels per coarse band: 390
Start date: 2015-09-10T19:44:15
Time resolution: 2.0 (s)
Num time steps: 1
Have read 128 antenna positions from measurement set: MWA-single-timeslot.ms
2025-02-27 09:51:04 - INFO - Setting phase centre RA,DEC 15.00000deg 40.00000deg
2025-02-27 09:51:04 - INFO - Obs epoch initial LST was 42.2620215148 deg
2025-02-27 09:51:04 - INFO - Setting initial J2000 LST to 42.0911874758 deg
2025-02-27 09:51:04 - INFO - Setting initial mjd to 57275.8224074073
2025-02-27 09:51:04 - INFO - After precession initial latitude of the array is -26.7665041369 deg
2025-02-27 09:51:04 - INFO - Precessing array layout to J2000
2025-02-27 09:51:04 - INFO - Will run with EveryBeam MWA primary beam, based on this measurement set:
MWA-single-timeslot.ms
2025-02-27 09:51:04 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 09:51:04 - INFO - Sky model mapping took 0.0 mins
2025-02-27 09:51:04 - INFO - Have read in 1 components
2025-02-27 09:51:04 - INFO - After cropping there are 1 components
2025-02-27 09:51:04 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 09:51:05 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 09:51:05 - INFO - Reading set 0 sky models
2025-02-27 09:51:05 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 09:51:05 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 09:51:05 - INFO - Sending Sky set 0 to the GPU
2025-02-27 09:51:07 - INFO - Sky set 0 has returned from the GPU after 1.3 seconds
2025-02-27 09:51:07 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 09:51:07 - INFO - Finished all rounds of processing
2025-02-27 09:51:08 - INFO - Full run took 0:00:03.735559
2025-02-27 09:51:08 - INFO - WODEN is done. Closing logging handlers. S'later
0
xx_interp, xy_interp, yx_interp, yy_interp = read_uvfits('interp_run_woden_band01.uvfits')
xx_coarse, xy_coarse, yx_coarse, yy_coarse = read_uvfits('coarse_run_woden_band01.uvfits')
freqs = np.arange(low_freq, low_freq + num_freq_chans*freq_reso, freq_reso)
xx_abs = np.abs(xx_coarse[0])
plt.plot(freqs/1e+6, xx_abs, label='Coarse h5 file')
xx_abs = np.abs(xx_interp[0])
plt.plot(freqs/1e+6, xx_abs, label='Interpolated h5 file')
plt.xlabel('Frequency (MHz)')
plt.ylabel('XX Amplitude')
plt.legend()
plt.show()

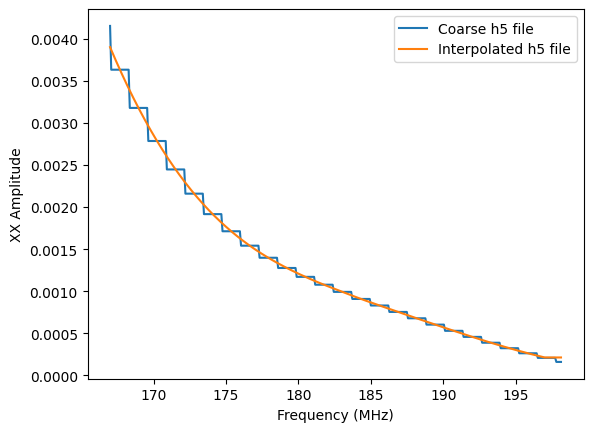

Yup, seems like we can indeed. It is over 10x slower however. I’m calling EveryBeam the exact same number of times, but EveryBeam is smart enough to cache repeated values, so the coarse h5 file runs faster.
