EveryBeam LOFAR HBA integration tests¶
These tests are all setup and explained in test_OSKAR-MWA.ipynb, so check that out first if you haven’t already.
Goes without saying, but the test here rely on WODEN being compiled with Everybeam support.
from subprocess import call
from astropy.io import fits
import numpy as np
from astropy.table import Column, Table
from astropy.time import Time
from astropy.coordinates import SkyCoord
from astropy.coordinates import EarthLocation
from astropy import units as u
import matplotlib.pyplot as plt
import numpy.testing as npt
from astropy.constants import c
from astropy.wcs import WCS
import erfa
##A bunch of test and plotting code lives here so we can use it in multile notebooks
from wodenpy.primary_beam.use_everybeam import run_everybeam, run_everybeam_over_threads
##A bunch of test and plotting code lives here so we can use it in multile notebooks
from eb_testing_code import create_WCS, plot_jones_on_sky, plot_everybeam_on_sky, make_sky_models, read_uvfits, convert_inst_to_stokes, test_stokes_recovery, getFDF, findpeaks, test_RM_recovery, make_RM_skymodel
from wodenpy.array_layout.precession import RTS_Precess_LST_Lat_to_J2000
C = c.to('m/s').value
ra0 = 0
dec0 = 53
lofar_lat = 52.905329712
lofar_long = 6.867996528
##pick a time/date that sticks our phase centre overhead
date = "2024-07-21T03:35:00"
##Assume that the OSKAR telescope is near the MWA??
lofar_location = EarthLocation(lat=lofar_lat*u.deg,
lon=lofar_long*u.deg)
observing_time = Time(date, scale='utc', location=lofar_location)
##Grab the LST
LST = observing_time.sidereal_time('mean')
LST_deg = LST.value*15
print(f"LST: {LST_deg} deg, RA: {ra0}")
LST: 0.01862197128531748 deg, RA: 0
OK, so the most efficient way I’ve found of calling EveryBeam for LOFAR does not allow you to directly control the beam pointing. Instead, you have to edit the underlying Measurement Set (MS) to change the pointing. So we’ll do that now.
from wodenpy.primary_beam.use_everybeam import create_filtered_ms
create_filtered_ms("LOFAR_HBA_MOCK.ms", "pointed_HBA.ms", np.radians(ra0), np.radians(dec0))
ms_path = "pointed_HBA.ms"
Successful readonly open of default-locked table LOFAR_HBA_MOCK.ms: 24 columns, 2485 rows
Successful read/write open of default-locked table pointed_HBA.ms::FIELD: 10 columns, 1 rows
(1, 1, 2)
Image the beam on the sky¶

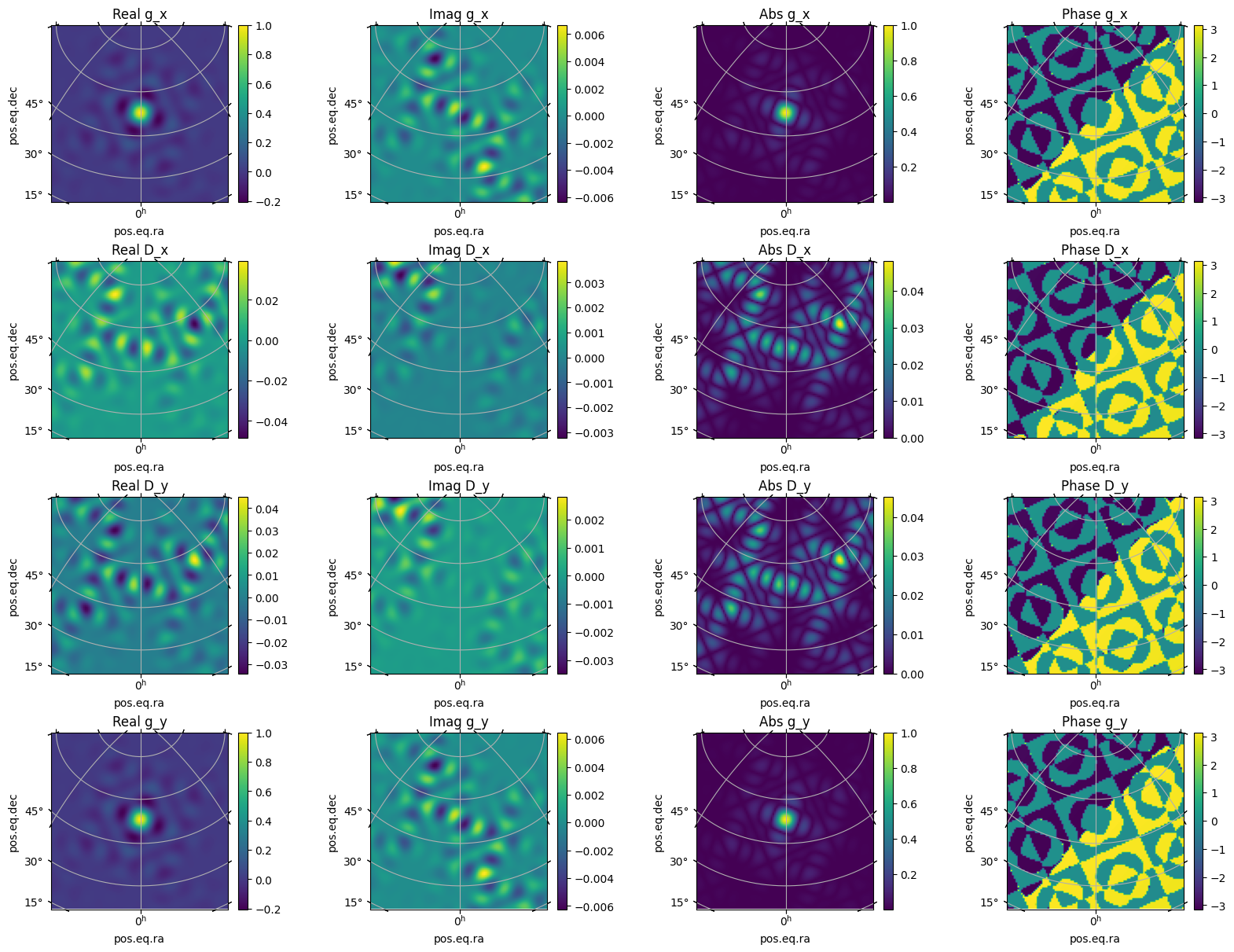

First up, let’s see if we can just plot a LOFAR station beam to check it looks sensible.
##setup coords
nside = 100
radec_reso = 60 / nside
header, wcs = create_WCS(ra0, dec0, nside, radec_reso)
x_mesh, y_mesh = np.meshgrid(np.arange(nside), np.arange(nside))
ras, decs = wcs.all_pix2world(x_mesh, y_mesh, 0)
ras = np.radians(ras.flatten())
decs = np.radians(decs.flatten())
freq = 150e+6
station_id = 0
##Technically we don't need to do this here, but in WODEN proper, we
##precess the array back to J2000 rather than precessing the sky forward
##So doing it here to show you what is happening under the hood
mjd_current = observing_time.mjd
lst_J2000, latitude_J2000 = RTS_Precess_LST_Lat_to_J2000(np.radians(LST_deg),
np.radians(lofar_lat),
mjd_current)
##Stick all our variables in lists as `run_everybeam` is designed to be
## run over multiple times/frequencies
j2000_latitudes = [latitude_J2000]
j2000_lsts = [lst_J2000]
times = [observing_time]
freqs = [freq]
station_ids = [0]
##Everybeam doesn't need a coeff path for this beam
coeff_path=""
##We'll run EveryBeam in parallel to speed things up
num_threads=8
all_jones = run_everybeam_over_threads(num_threads, ms_path,
coeff_path,
ras, decs,
np.radians(ra0), np.radians(dec0),
j2000_latitudes, j2000_lsts,
times, freqs, station_ids,
apply_beam_norms=True,
iau_order=True,
parallactic_rotate=True)
beam_ind, time_ind, freq_ind = 0, 0, 0
all_gx = all_jones[beam_ind, time_ind, freq_ind, :, 0, 0]
all_Dx = all_jones[beam_ind, time_ind, freq_ind, :, 0, 1]
all_Dy = all_jones[beam_ind, time_ind, freq_ind, :, 1, 0]
all_gy = all_jones[beam_ind, time_ind, freq_ind, :, 1, 1]
all_gx.shape = (nside, nside)
all_Dx.shape = (nside, nside)
all_Dy.shape = (nside, nside)
all_gy.shape = (nside, nside)
plot_jones_on_sky(all_gx, all_Dx, all_Dy, all_gy, wcs)
Thread 0 processing coords 0 to 1250Thread 1 processing coords 1250 to 2500Thread 4 processing coords 5000 to 6250
Thread 3 processing coords 3750 to 5000
Thread 2 processing coords 2500 to 3750
Thread 5 processing coords 6250 to 7500Thread 7 processing coords 8750 to 10000Thread 6 processing coords 7500 to 8750
Thread 2 finished
Thread 0 finished
Thread 7 finished
Thread 5 finished
Thread 3 finished
Thread 4 finished
Thread 1 finishedThread 6 finished
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:28 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
This looks decent, gains look way stronger than the leakages because I’ve set up the run_everybeam function to do a normalistion towards the beam phase centre. Same as LOFAR HBA, these dipoles are not aligned with the cardinal directions. The maths of all this is detailed in test_installation/everybeam/test_LOFAR_LBA.ipynb. We’ll do the same testing here as in that notebook.
Stokes recovery with off cardinal dipoles¶

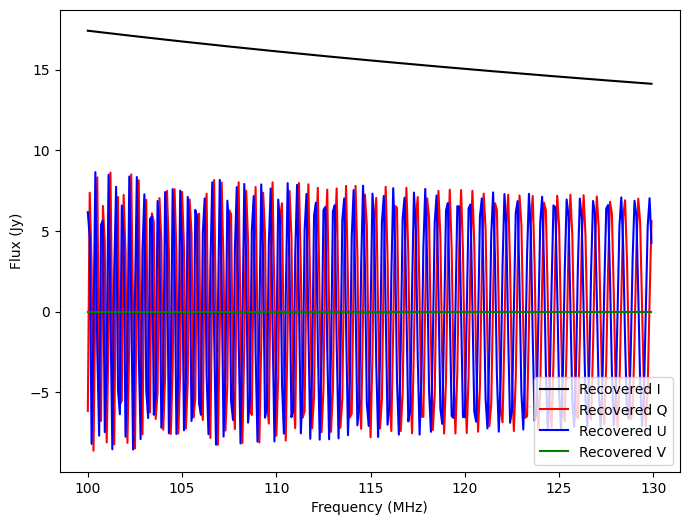

Let’s try to recover single point source of either Stokes I, Q, U or V.
make_sky_models(ra0, dec0)
freq_reso=1e+6
low_freq=100e+6
high_freq = 150e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "everybeam_LOFAR"
for pol in ['I', 'Q', 'U', 'V']:
# for pol in ['I']:
uvfits_name = f"stokes{pol}_{primary_beam}"
cat_name = f'{pol}_source.fits'
cmd = f'run_woden.py --ra0={ra0} --dec0={dec0} '
cmd += f'--latitude={lofar_lat} --longitude={lofar_long} '
cmd += f'--date={date} --output_uvfits_prepend={uvfits_name} '
cmd += f'--cat_filename={cat_name} --primary_beam={primary_beam} '
cmd += f'--lowest_channel_freq={low_freq} --freq_res={freq_reso} '
cmd += f'--num_freq_channels={num_freq_chans} --band_nums=1 '
cmd += f'--time_res=2 --num_time_steps=1 --IAU_order --num_threads=1 '
cmd += f' --station_id=0 '
cmd += f'--beam_ms_path=pointed_HBA.ms'
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table pointed_HBA.ms: 24 columns, 2485 rows
Successful readonly open of default-locked table pointed_HBA.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful readonly open of default-locked table pointed_HBA.ms/ANTENNA: 10 columns, 70 rows
2025-02-27 10:43:37 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 10:43:37 - INFO - Input arguments after parsing:
Array central latitude: 52.905 deg
Array central longitude: 6.868 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 0.183 MHz
Num channels per coarse band: 50
Start date: 2024-07-21T03:35:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 70 antenna positions from measurement set: pointed_HBA.ms
2025-02-27 10:43:38 - INFO - Setting phase centre RA,DEC 0.00000deg 53.00000deg
2025-02-27 10:43:38 - INFO - Obs epoch initial LST was 0.0228000546 deg
2025-02-27 10:43:38 - INFO - Setting initial J2000 LST to 359.7122369008 deg
2025-02-27 10:43:38 - INFO - Setting initial mjd to 60512.1493171296
2025-02-27 10:43:38 - INFO - After precession initial latitude of the array is 52.7688502802 deg
2025-02-27 10:43:38 - INFO - Precessing array layout to J2000
2025-02-27 10:43:38 - INFO - Will run with EveryBeam LOFAR primary beam, based on this measurement set:
pointed_HBA.ms
2025-02-27 10:43:38 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 10:43:38 - INFO - Sky model mapping took 0.0 mins
2025-02-27 10:43:38 - INFO - Have read in 1 components
2025-02-27 10:43:38 - INFO - After cropping there are 1 components
2025-02-27 10:43:38 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 10:43:38 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 10:43:38 - INFO - Reading set 0 sky models
2025-02-27 10:43:38 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:43:38 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 10:43:38 - INFO - Sending Sky set 0 to the GPU
2025-02-27 00:43:39 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:39 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:39 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 10:43:39 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-02-27 10:43:39 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 10:43:39 - INFO - Finished all rounds of processing
2025-02-27 10:43:39 - INFO - Full run took 0:00:01.832301
2025-02-27 10:43:39 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table pointed_HBA.ms: 24 columns, 2485 rows
Successful readonly open of default-locked table pointed_HBA.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful readonly open of default-locked table pointed_HBA.ms/ANTENNA: 10 columns, 70 rows
2025-02-27 10:43:40 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 10:43:40 - INFO - Input arguments after parsing:
Array central latitude: 52.905 deg
Array central longitude: 6.868 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 0.183 MHz
Num channels per coarse band: 50
Start date: 2024-07-21T03:35:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 70 antenna positions from measurement set: pointed_HBA.ms
2025-02-27 10:43:41 - INFO - Setting phase centre RA,DEC 0.00000deg 53.00000deg
2025-02-27 10:43:41 - INFO - Obs epoch initial LST was 0.0228000546 deg
2025-02-27 10:43:41 - INFO - Setting initial J2000 LST to 359.7122369008 deg
2025-02-27 10:43:41 - INFO - Setting initial mjd to 60512.1493171296
2025-02-27 10:43:41 - INFO - After precession initial latitude of the array is 52.7688502802 deg
2025-02-27 10:43:41 - INFO - Precessing array layout to J2000
2025-02-27 10:43:41 - INFO - Will run with EveryBeam LOFAR primary beam, based on this measurement set:
pointed_HBA.ms
2025-02-27 10:43:41 - INFO - Doing the initial mapping of sky model
2025-02-27 10:43:41 - INFO - Sky model mapping took 0.0 mins
2025-02-27 10:43:41 - INFO - Have read in 1 components
2025-02-27 10:43:41 - INFO - After cropping there are 1 components
2025-02-27 10:43:41 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 10:43:41 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 10:43:41 - INFO - Reading set 0 sky models
2025-02-27 10:43:41 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:43:41 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 10:43:41 - INFO - Sending Sky set 0 to the GPU
2025-02-27 00:43:42 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:42 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:42 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 10:43:41 - INFO - Sky set 0 has returned from the GPU after 0.2 seconds
2025-02-27 10:43:41 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 10:43:41 - INFO - Finished all rounds of processing
2025-02-27 10:43:42 - INFO - Full run took 0:00:01.572355
2025-02-27 10:43:42 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table pointed_HBA.ms: 24 columns, 2485 rows
Successful readonly open of default-locked table pointed_HBA.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful readonly open of default-locked table pointed_HBA.ms/ANTENNA: 10 columns, 70 rows
2025-02-27 10:43:42 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 10:43:42 - INFO - Input arguments after parsing:
Array central latitude: 52.905 deg
Array central longitude: 6.868 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 0.183 MHz
Num channels per coarse band: 50
Start date: 2024-07-21T03:35:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 70 antenna positions from measurement set: pointed_HBA.ms
2025-02-27 10:43:43 - INFO - Setting phase centre RA,DEC 0.00000deg 53.00000deg
2025-02-27 10:43:43 - INFO - Obs epoch initial LST was 0.0228000546 deg
2025-02-27 10:43:43 - INFO - Setting initial J2000 LST to 359.7122369008 deg
2025-02-27 10:43:43 - INFO - Setting initial mjd to 60512.1493171296
2025-02-27 10:43:43 - INFO - After precession initial latitude of the array is 52.7688502802 deg
2025-02-27 10:43:43 - INFO - Precessing array layout to J2000
2025-02-27 10:43:43 - INFO - Will run with EveryBeam LOFAR primary beam, based on this measurement set:
pointed_HBA.ms
2025-02-27 10:43:43 - INFO - Doing the initial mapping of sky model
2025-02-27 10:43:43 - INFO - Sky model mapping took 0.0 mins
2025-02-27 10:43:43 - INFO - Have read in 1 components
2025-02-27 10:43:43 - INFO - After cropping there are 1 components
2025-02-27 10:43:43 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 10:43:43 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 10:43:43 - INFO - Reading set 0 sky models
2025-02-27 10:43:43 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:43:43 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 10:43:44 - INFO - Sending Sky set 0 to the GPU
2025-02-27 00:43:44 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:44 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:44 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 10:43:44 - INFO - Sky set 0 has returned from the GPU after 0.3 seconds
2025-02-27 10:43:44 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 10:43:44 - INFO - Finished all rounds of processing
2025-02-27 10:43:44 - INFO - Full run took 0:00:01.882719
2025-02-27 10:43:44 - INFO - WODEN is done. Closing logging handlers. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table pointed_HBA.ms: 24 columns, 2485 rows
Successful readonly open of default-locked table pointed_HBA.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful readonly open of default-locked table pointed_HBA.ms/ANTENNA: 10 columns, 70 rows
2025-02-27 10:43:45 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 10:43:45 - INFO - Input arguments after parsing:
Array central latitude: 52.905 deg
Array central longitude: 6.868 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 0.183 MHz
Num channels per coarse band: 50
Start date: 2024-07-21T03:35:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 70 antenna positions from measurement set: pointed_HBA.ms
2025-02-27 10:43:46 - INFO - Setting phase centre RA,DEC 0.00000deg 53.00000deg
2025-02-27 10:43:46 - INFO - Obs epoch initial LST was 0.0228000546 deg
2025-02-27 10:43:46 - INFO - Setting initial J2000 LST to 359.7122369008 deg
2025-02-27 10:43:46 - INFO - Setting initial mjd to 60512.1493171296
2025-02-27 10:43:46 - INFO - After precession initial latitude of the array is 52.7688502802 deg
2025-02-27 10:43:46 - INFO - Precessing array layout to J2000
2025-02-27 10:43:46 - INFO - Will run with EveryBeam LOFAR primary beam, based on this measurement set:
pointed_HBA.ms
2025-02-27 10:43:46 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 10:43:46 - INFO - Sky model mapping took 0.0 mins
2025-02-27 10:43:46 - INFO - Have read in 1 components
2025-02-27 10:43:46 - INFO - After cropping there are 1 components
2025-02-27 10:43:46 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 10:43:46 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 10:43:46 - INFO - Reading set 0 sky models
2025-02-27 10:43:46 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:43:46 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 10:43:46 - INFO - Sending Sky set 0 to the GPU
2025-02-27 00:43:47 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:47 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:47 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 10:43:47 - INFO - Sky set 0 has returned from the GPU after 0.3 seconds
2025-02-27 10:43:47 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 10:43:47 - INFO - Finished all rounds of processing
2025-02-27 10:43:47 - INFO - Full run took 0:00:01.566853
2025-02-27 10:43:47 - INFO - WODEN is done. Closing logging handlers. S'later
for pol in ['I', 'Q', 'U', 'V']:
uvfits_name = f"stokes{pol}_everybeam_LOFAR"
XX, XY, YX, YY = read_uvfits(f'{uvfits_name}_band01.uvfits')
test_stokes_recovery(pol, primary_beam, atol=5e-2, on_cardinal=False)
# ##uncomment to print responses
# ##pick a random baseline to plot, they should all be the sam
# baseline = 0
# ##Supplu on_cardinal=False to use the right maths
# recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline],
# on_cardinal=False)
# print(f"Input {pol}, Recover I {recover_I[0].real:.2f}, Q {recover_Q[0].real:.2f}, U {recover_U[0].real:.2f}, V {recover_V[0].real:.2f}")
Testing Stokes I
Stokes I passed
Testing Stokes Q
Stokes Q passed
Testing Stokes U
Stokes U passed
Testing Stokes V
Stokes V passed
Booya, works perfectly. Now to test the RM recovery.

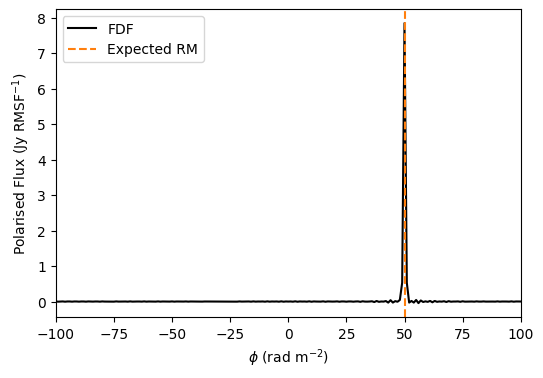

RM recovery¶
phi_RM, pol_frac = make_RM_skymodel(ra0, dec0)
freq_reso = 0.1e+6
low_freq = 100e+6
high_freq = 130e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "everybeam_LOFAR"
uvfits_name = f"rm_source_{primary_beam}"
cat_name = 'RM_source.fits'
##The command to run WODEN
command = f'run_woden.py --ra0={ra0} --dec0={dec0} '
command += f'--date={date} --output_uvfits_prepend={uvfits_name} '
command += f'--latitude={lofar_lat} --longitude={lofar_long} '
command += f'--cat_filename={cat_name} --primary_beam={primary_beam} '
command += f'--lowest_channel_freq={low_freq} --freq_res={freq_reso} '
command += f'--num_freq_channels={num_freq_chans} --band_nums=1 '
command += f'--time_res=2 --num_time_steps=1 --IAU_order --num_threads=1 '
command += f' --station_id=0 '
command += f'--beam_ms_path=LOFAR_HBA_MOCK.ms'
call(command, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table LOFAR_HBA_MOCK.ms: 24 columns, 2485 rows
Successful readonly open of default-locked table LOFAR_HBA_MOCK.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful readonly open of default-locked table LOFAR_HBA_MOCK.ms/ANTENNA: 10 columns, 70 rows
2025-02-27 10:43:48 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 10:43:48 - INFO - Input arguments after parsing:
Array central latitude: 52.905 deg
Array central longitude: 6.868 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 0.183 MHz
Num channels per coarse band: 300
Start date: 2024-07-21T03:35:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 70 antenna positions from measurement set: LOFAR_HBA_MOCK.ms
2025-02-27 10:43:48 - INFO - Setting phase centre RA,DEC 0.00000deg 53.00000deg
2025-02-27 10:43:48 - INFO - Obs epoch initial LST was 0.0228000546 deg
2025-02-27 10:43:48 - INFO - Setting initial J2000 LST to 359.7122369008 deg
2025-02-27 10:43:48 - INFO - Setting initial mjd to 60512.1493171296
2025-02-27 10:43:48 - INFO - After precession initial latitude of the array is 52.7688502802 deg
2025-02-27 10:43:48 - INFO - Precessing array layout to J2000
2025-02-27 10:43:48 - INFO - Will run with EveryBeam LOFAR primary beam, based on this measurement set:
LOFAR_HBA_MOCK.ms
2025-02-27 10:43:48 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 10:43:48 - INFO - Sky model mapping took 0.0 mins
2025-02-27 10:43:48 - INFO - Have read in 1 components
2025-02-27 10:43:48 - INFO - After cropping there are 1 components
2025-02-27 10:43:48 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 10:43:49 - INFO - Running in GPU mode.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-02-27 10:43:49 - INFO - Reading set 0 sky models
2025-02-27 10:43:49 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:43:49 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 10:43:49 - INFO - Sending Sky set 0 to the GPU
2025-02-27 00:43:50 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:50 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:50 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 10:43:50 - INFO - Sky set 0 has returned from the GPU after 0.4 seconds
2025-02-27 10:43:50 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-02-27 10:43:50 - INFO - Finished all rounds of processing
2025-02-27 10:43:50 - INFO - Full run took 0:00:02.404599
2025-02-27 10:43:50 - INFO - WODEN is done. Closing logging handlers. S'later
0
XX, XY, YX, YY = read_uvfits('rm_source_everybeam_LOFAR_band01.uvfits')
baseline = 0
recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline],
on_cardinal=False)
freqs = np.arange(low_freq, high_freq, freq_reso)
fig, axs = plt.subplots(1, 1, figsize=(8, 6))
axs.plot(freqs / 1e+6, recover_I.real, 'k-', label='Recovered I')
axs.plot(freqs / 1e+6, recover_Q.real, 'r', label='Recovered Q')
axs.plot(freqs / 1e+6, recover_U.real, 'b', label='Recovered U')
axs.plot(freqs / 1e+6, recover_V.real, 'g', label='Recovered V')
axs.legend()
axs.set_xlabel('Frequency (MHz)')
axs.set_ylabel('Flux (Jy)')
plt.show()
test_RM_recovery(uvfits_name, phi_RM, pol_frac, freqs, atol=0.02)
Recovered RM: 50.0 Expected RM: 50
Recovered Pol. Fraction: 0.5 Expected Pol Fraction 0.5
Looks good.
Test unique primary beam per station¶
run_everybeam (which is called by run_everybeam_over_threads) has been setup to run any given number of stations, times, frequencies and directions. Here we’ll test things are returned in the expecting order by running two times and two frequencies. As waiting around is boring, we’ll also run things across multiple threads; this is a mircocosm of what happens in run_woden.py, as we split the sky model reading and beam calculations across threads.
from astropy.time import TimeDelta
from wodenpy.primary_beam.use_everybeam import get_num_stations
ms_path="pointed_HBA.ms"
##Setup a grid of RA/Dec on the sky
nside=128
radec_reso = 100/nside
##lock frame to first LST, so we can see if beam is locked to RA/Dec
header, wcs = create_WCS(ra0, dec0, nside, radec_reso)
x_mesh, y_mesh = np.meshgrid(np.arange(nside), np.arange(nside))
ras, decs = wcs.all_pix2world(x_mesh, y_mesh, 0)
ras = np.radians(ras.flatten())
decs = np.radians(decs.flatten())
num_comps = len(ras)
num_beams = get_num_stations(ms_path)
##Do a couple of frequencies to check mapping is working
all_freqs = np.array([100e+6, 150e+6])
##Do two times, 4 hours apart to check things move on the sky
##Our obs frame is locked to beam phase, so should still be centred, but it'll
##be elongated due to projection effects/pointing
all_times = np.array([observing_time, observing_time + TimeDelta(4*3600, format='sec')])
station_ids = np.arange(num_beams)
num_threads=8
j2000_latitudes = []
j2000_lsts = []
for time in all_times:
LST_deg = time.sidereal_time('mean').value*15
mjd_current = time.mjd
lst_J2000, latitude_J2000 = RTS_Precess_LST_Lat_to_J2000(np.radians(LST_deg),
np.radians(lofar_lat),
mjd_current)
j2000_latitudes.append(latitude_J2000)
j2000_lsts.append(lst_J2000)
##Everybeam doesn't need a coeff path for this beam
coeff_path=""
##We'll run EveryBeam in parallel to speed things up
num_threads=8
all_jones = run_everybeam_over_threads(num_threads, ms_path,
coeff_path,
ras, decs,
np.radians(ra0), np.radians(dec0),
j2000_latitudes, j2000_lsts,
all_times, all_freqs, station_ids,
apply_beam_norms=True,
iau_order=False,
parallactic_rotate=True)
Successful readonly open of default-locked table pointed_HBA.ms/ANTENNA: 10 columns, 70 rows
Thread 0 processing coords 0 to 2048
Thread 1 processing coords 2048 to 4096Thread 2 processing coords 4096 to 6144
Thread 4 processing coords 8192 to 10240Thread 3 processing coords 6144 to 8192
Thread 6 processing coords 12288 to 14336Thread 5 processing coords 10240 to 12288
Thread 7 processing coords 14336 to 16384
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:43:52 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
Thread 2 finished
Thread 6 finished
Thread 5 finished
Thread 3 finished
Thread 1 finished
Thread 7 finished
Thread 4 finished
Thread 0 finished
OK, now setup code to plot the the absolute values of the first polarisation for the first 36 stations, per time, per freq, to check our outputs.
def plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs):
fig, axs = plt.subplots(6, 6, figsize=(12, 12), layout='constrained',
subplot_kw={'projection': wcs})
for col in range(6):
for row in range(6):
beam_ind = col*6 + row
gx = all_jones[beam_ind, time_ind, freq_ind, :, 0,0]
gx.shape = (nside, nside)
im = axs[row, col].imshow(np.abs(gx), origin='lower', vmax=1, vmin=0)
axs[row, col].grid(alpha=0.5)
lon = axs[row, col].coords[0]
lat = axs[row, col].coords[1]
lon.set_ticks_visible(False)
lat.set_ticks_visible(False)
lon.set_axislabel(' ')
lat.set_axislabel(' ')
if col > 0:
lat.set_ticklabel_visible(False)
if row < 5:
lon.set_ticklabel_visible(False)
if col == 5:
plt.colorbar(im, ax=axs[row, col])
fig.suptitle(f"Time: {all_times[time_ind].isot}, Freq: {all_freqs[freq_ind]/1e+6} MHz")
plt.show()
time_ind = 0
freq_ind = 0
plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs)

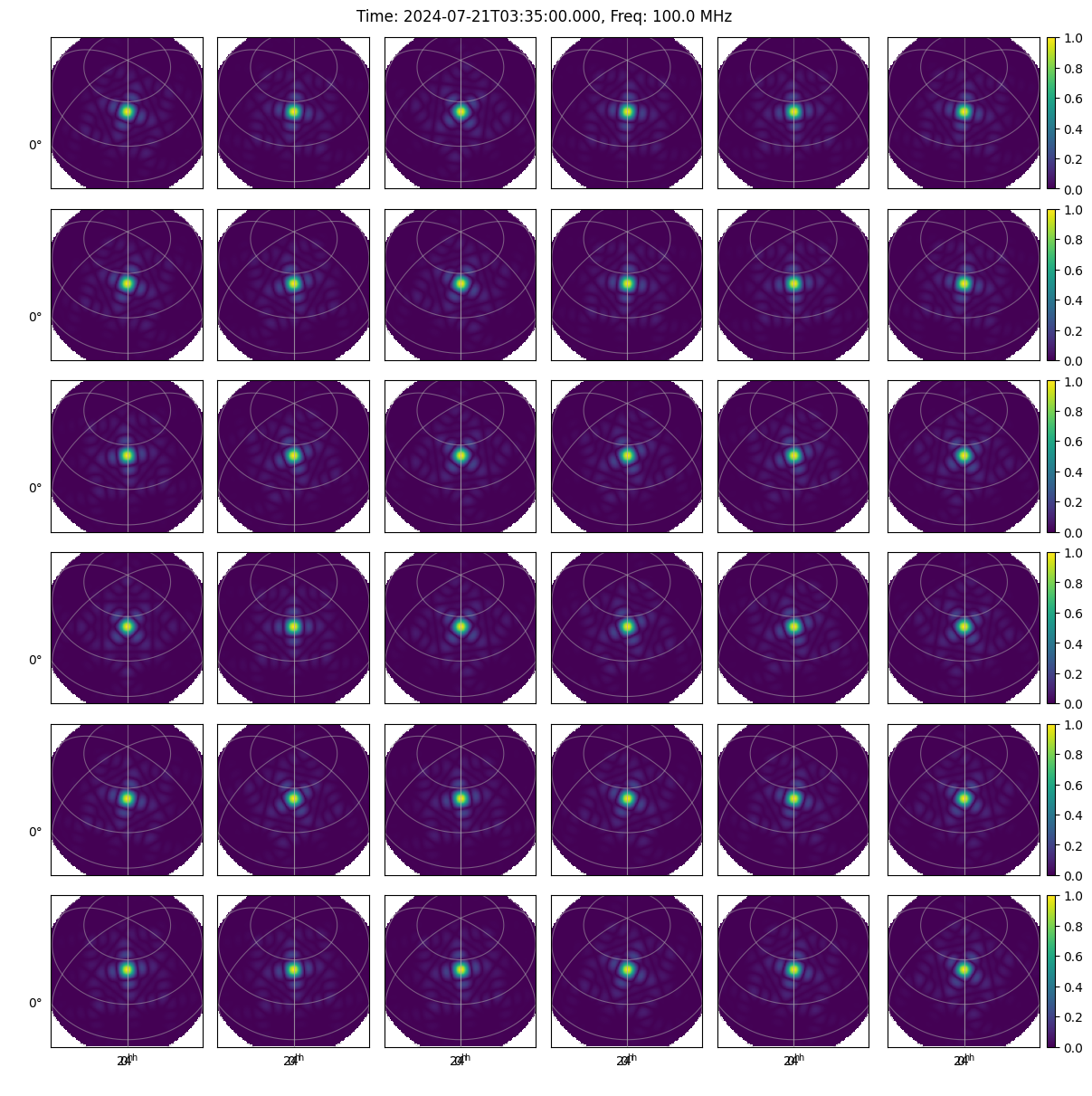

Cool, we get a different primary beam shape for each station, they’re all normalised to 1. So far so good.
time_ind = 0
freq_ind = 1
plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs)

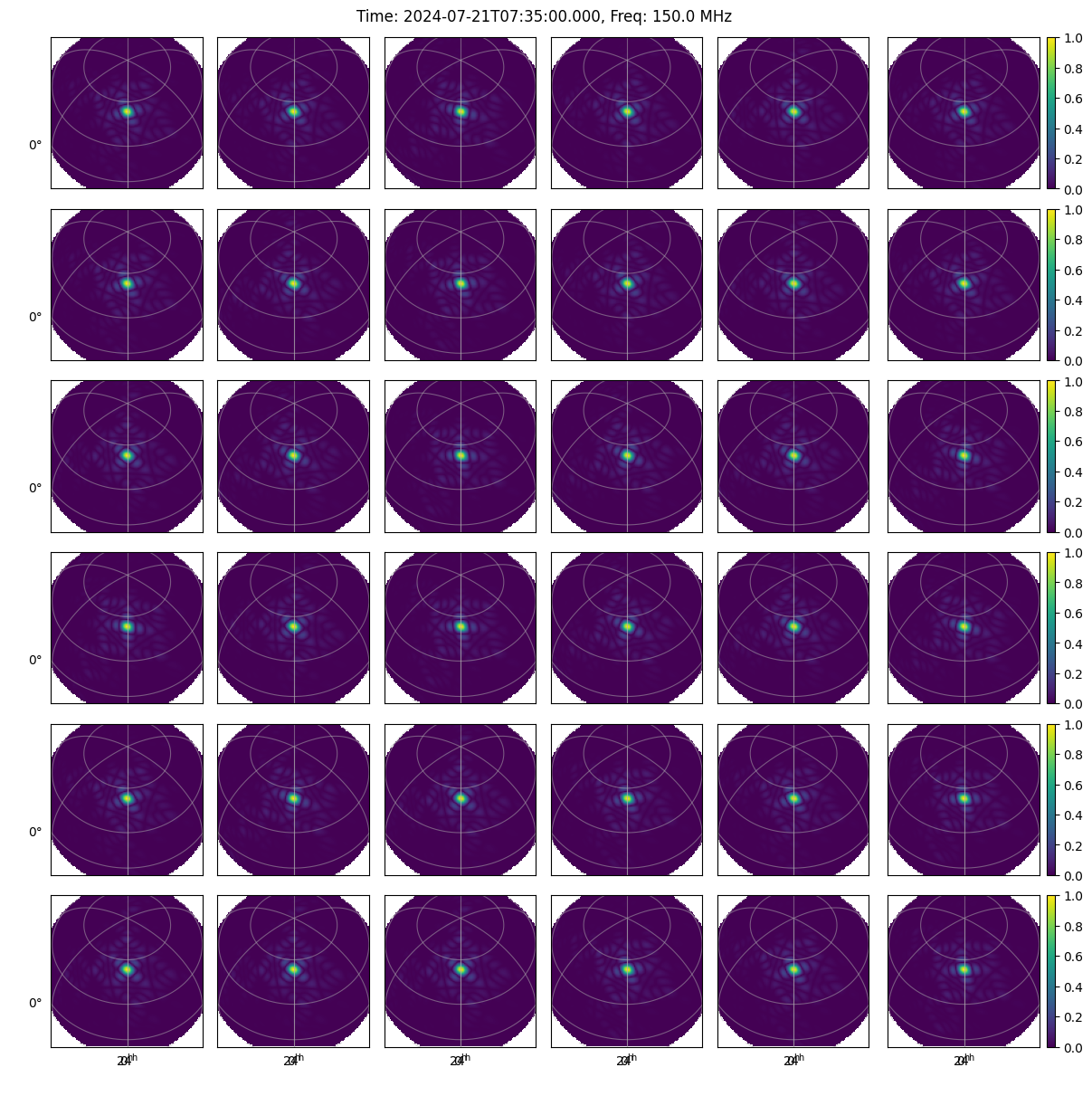

Yup, if we switch from 100 to 150MHz the beam gets smaller on the sky, happy days.
time_ind = 1
freq_ind = 0
plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs)

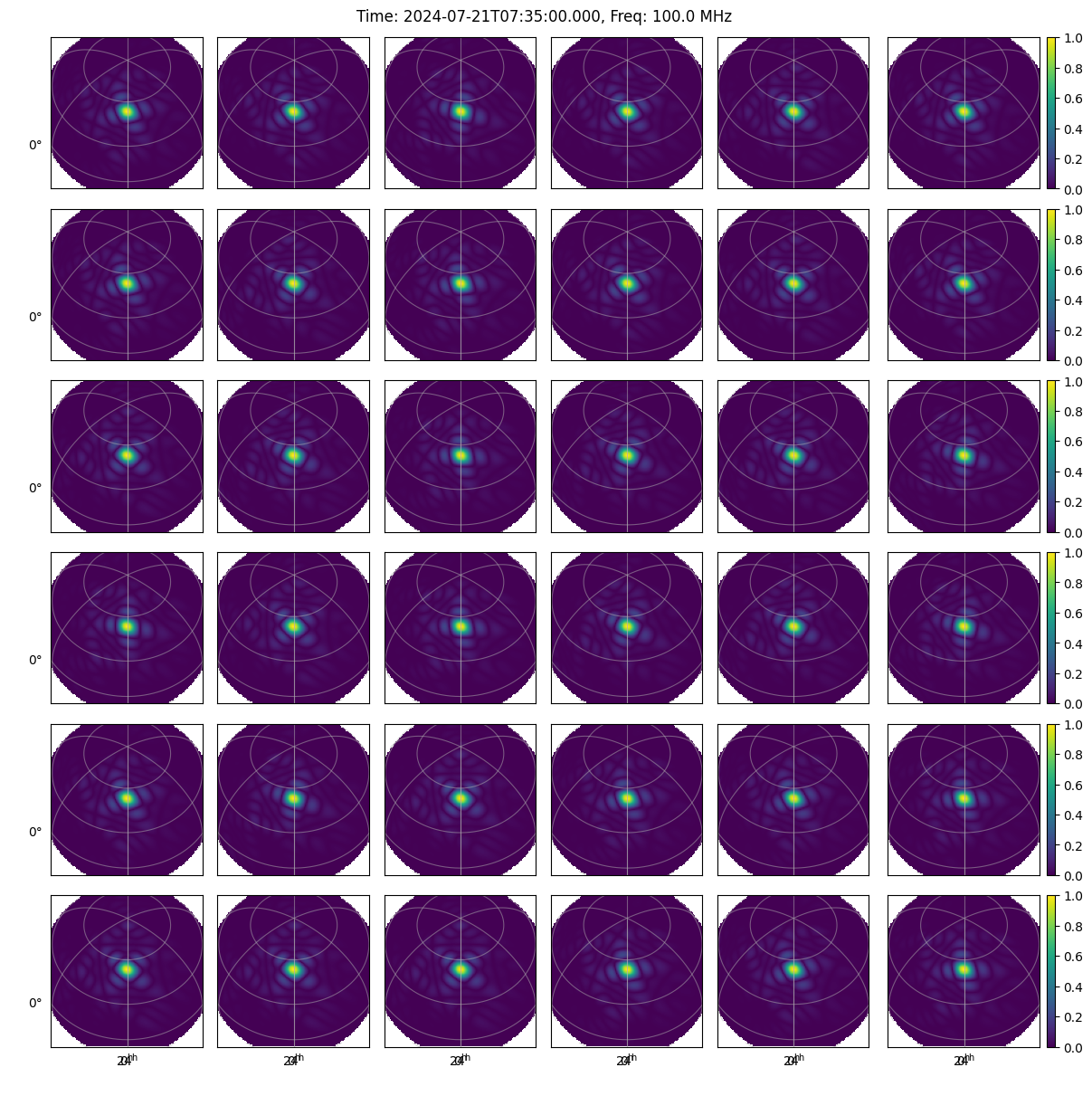

Now we’ve gone from beam at zenith to 4 hours off zenith. We’re still plotting with RA/Dec centred on beam, but we can see projection effects so we are defo off zenith.
time_ind = 1
freq_ind = 1
plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs)
And again changing freq changes size. Things are looking good.
Averaging over stations¶

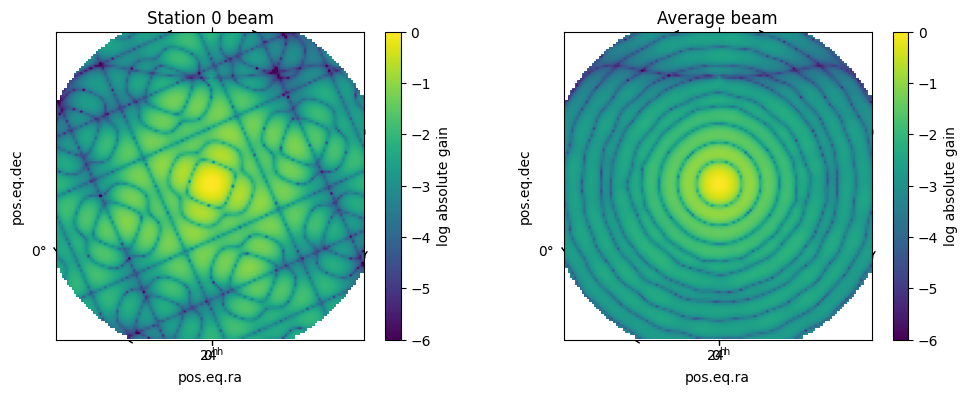

As I’m an MWA person, I’m interested to see what happens to the sidelobes when we average over stations. Here we’ll average over all the stations and plot a single station vs the average.
freq_ind, time_ind = 0, 0
all_gx = all_jones[:, time_ind, freq_ind, :, 0, 0]
all_gx.shape = (num_beams, nside, nside)
avg_beams = np.mean(all_gx, axis=0)
fig, axs = plt.subplots(1, 2, figsize=(12, 4), subplot_kw={'projection': wcs})
im = axs[0].imshow(np.log10(np.abs(all_gx[0])), origin='lower', vmin=-6, vmax=0)
plt.colorbar(im, ax=axs[0], label='log absolute gain')
axs[0].set_title('Station 0 beam')
im = axs[1].imshow(np.log10(np.abs(avg_beams)), origin='lower', vmin=-6, vmax=0)
plt.colorbar(im, ax=axs[1], label='log absolute gain')
axs[1].set_title('Average beam')
plt.show()
Huh cool, essentially turns into an airy disk.
Check positions of components via image¶

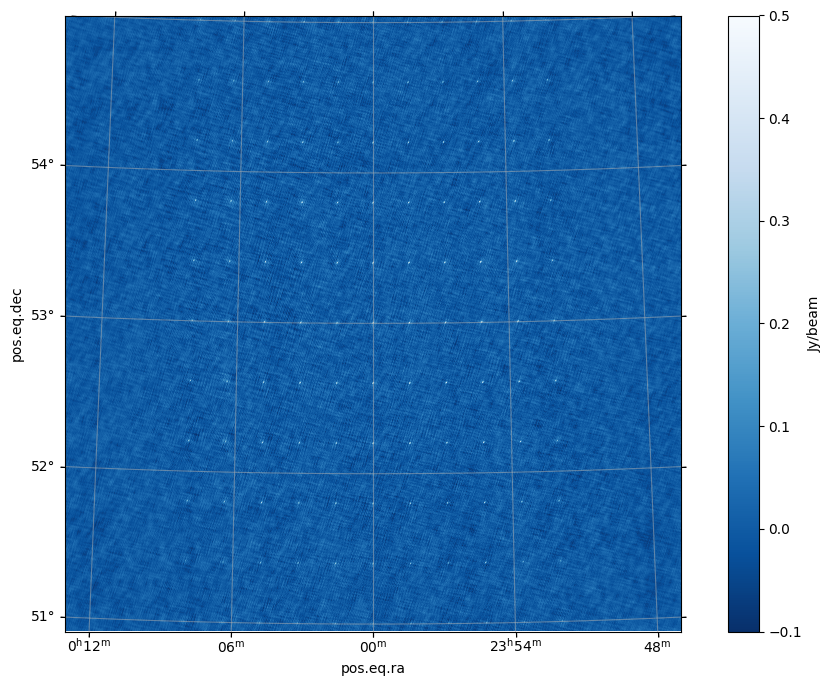

Let’s bung a grid of RA/Dec through the whole simulation code, so multiple frequencies and time steps. This should check we’re calling the above beam code correctly and integrating things into the code proper.
from astropy.table import Column, Table
nside=11
half_width = 2
ras = np.linspace(ra0 - half_width, ra0 + half_width, nside)
decs = np.linspace(dec0 - half_width, dec0 + half_width, nside)
ras, decs = np.meshgrid(ras, decs)
ras = ras.flatten()
decs = decs.flatten()
num_comps = len(ras)
c_ids = Column(data=np.array(['source']*num_comps), name='UNQ_SOURCE_ID', dtype='|S20')
c_names = Column(data=np.array([f'source_C{i:04d}' for i in range(num_comps)]), name='NAME', dtype='|S20')
##Component position
c_ras = Column(data=ras, name='RA')
c_decs = Column(data=decs, name='DEC')
##This says we have a point source
c_comp_types = Column(data=np.array(['P']*num_comps, dtype='|S1'), name="COMP_TYPE", dtype='|S1')
##This says we have a Stokes I power-law SED
c_mod_types = Column(data=np.array(['pl']*num_comps, dtype='|S3'), name="MOD_TYPE", dtype='|S3')
##Set everything as a flat spectrum 1 Jy stokes I source. That way we can image it and see the beam pattern
c_stokes_I_ref = Column(data=np.ones(num_comps), name='NORM_COMP_PL')
c_stokes_I_SI = Column(data=np.zeros(num_comps), name='ALPHA_PL')
cols = [c_ids, c_names, c_ras, c_decs, c_comp_types, c_mod_types, c_stokes_I_ref, c_stokes_I_SI]
main_table = Table(cols)
cat_name = 'check_positions.fits'
main_table.write(cat_name, format='fits', overwrite=True)
args = []
primary_beam="everybeam_LOFAR"
low_freq=130e+6
num_freq_chans=100
freq_reso=1e+4
uvfits_name=f"check_positions_{primary_beam}"
##The command to run WODEN
cmd = f'run_woden.py --ra0={ra0} --dec0={dec0} --latitude={lofar_lat} --longitude={lofar_long} '
cmd += f'--date={date} --output_uvfits_prepend={uvfits_name} --cat_filename=check_positions.fits '
cmd += f'--primary_beam={primary_beam} --lowest_channel_freq={low_freq} --freq_res={freq_reso} '
cmd += f'--num_freq_channels={num_freq_chans} --band_nums=1 --time_res=10 --num_time_steps=10 '
cmd += f'--IAU_order --num_threads=8 --station_id=0 --beam_ms_path=pointed_HBA.ms'
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
Successful readonly open of default-locked table pointed_HBA.ms: 24 columns, 2485 rows
Successful readonly open of default-locked table pointed_HBA.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful readonly open of default-locked table pointed_HBA.ms/ANTENNA: 10 columns, 70 rows
2025-02-27 10:45:03 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: a43c383
2025-02-27 10:45:03 - INFO - Input arguments after parsing:
Array central latitude: 52.905 deg
Array central longitude: 6.868 deg
Array central height: 377.827 m
Lowest channel frequency: 130.000 MHz
Channel frequency resolution: 10.000 kHz
Coarse band bandwidth: 0.183 MHz
Num channels per coarse band: 100
Start date: 2024-07-21T03:35:00
Time resolution: 10.0 (s)
Num time steps: 10
Have read 70 antenna positions from measurement set: pointed_HBA.ms
2025-02-27 10:45:03 - INFO - Setting phase centre RA,DEC 0.00000deg 53.00000deg
2025-02-27 10:45:03 - INFO - Obs epoch initial LST was 0.0395123880 deg
2025-02-27 10:45:03 - INFO - Setting initial J2000 LST to 359.7288967971 deg
2025-02-27 10:45:03 - INFO - Setting initial mjd to 60512.1493634259
2025-02-27 10:45:03 - INFO - After precession initial latitude of the array is 52.7688494985 deg
2025-02-27 10:45:03 - INFO - Precessing array layout to J2000
2025-02-27 10:45:03 - INFO - Will run with EveryBeam LOFAR primary beam, based on this measurement set:
pointed_HBA.ms
2025-02-27 10:45:03 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-02-27 10:45:03 - INFO - Sky model mapping took 0.0 mins
2025-02-27 10:45:03 - INFO - Have read in 121 components
2025-02-27 10:45:03 - INFO - After cropping there are 121 components
2025-02-27 10:45:03 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-02-27 10:45:04 - INFO - Running in GPU mode.
Will read sky model using 8 threads
There are 1 sets of sky models to run
2025-02-27 10:45:04 - INFO - Reading set 0 sky models
2025-02-27 10:45:04 - INFO - From sky set 0 thread num 0 reading 16 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:45:04 - INFO - Finshed sky set 0 reading thread num 0 in 0.0 seconds
2025-02-27 10:45:04 - INFO - From sky set 0 thread num 1 reading 16 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:45:04 - INFO - From sky set 0 thread num 3 reading 16 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:45:04 - INFO - From sky set 0 thread num 2 reading 16 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:45:04 - INFO - Finshed sky set 0 reading thread num 1 in 0.0 seconds
2025-02-27 10:45:04 - INFO - Finshed sky set 0 reading thread num 3 in 0.0 seconds
2025-02-27 10:45:04 - INFO - From sky set 0 thread num 5 reading 16 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:45:04 - INFO - Finshed sky set 0 reading thread num 2 in 0.0 seconds
2025-02-27 10:45:04 - INFO - From sky set 0 thread num 4 reading 16 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:45:04 - INFO - From sky set 0 thread num 6 reading 16 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:45:04 - INFO - From sky set 0 thread num 7 reading 9 points, 0 gauss, 0 shape, 0 shape coeffs
2025-02-27 10:45:04 - INFO - Finshed sky set 0 reading thread num 4 in 0.0 seconds
2025-02-27 10:45:04 - INFO - Finshed sky set 0 reading thread num 5 in 0.0 seconds
2025-02-27 10:45:04 - INFO - Finshed sky set 0 reading thread num 6 in 0.0 seconds
2025-02-27 10:45:04 - INFO - Finshed sky set 0 reading thread num 7 in 0.0 seconds
2025-02-27 10:45:04 - INFO - Sending Sky set 0 to the GPU
2025-02-27 00:45:05 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292) Leap second table TAI_UTC seems out-of-date.
2025-02-27 00:45:05 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ Until the table is updated (see the CASA documentation or your system admin),
2025-02-27 00:45:05 SEVERE MeasTable::dUTC(Double) (file ./measures/Measures/MeasTable.cc, line 4292)+ times and coordinates derived from UTC could be wrong by 1s or more.
2025-02-27 10:45:09 - INFO - Sky set 0 has returned from the GPU after 4.9 seconds
2025-02-27 10:45:09 - INFO - Have completed 121 of 121 components calcs (100.0%)
2025-02-27 10:45:09 - INFO - Finished all rounds of processing
2025-02-27 10:45:10 - INFO - Full run took 0:00:07.072121
2025-02-27 10:45:10 - INFO - WODEN is done. Closing logging handlers. S'later
0
cmd = "woden_uv2ms.py "
cmd += " --uvfits_prepend=check_positions_everybeam_LOFAR_band "
cmd += " --band_nums=1 "
call(cmd, shell=True)
cmd = "wsclean -name check_positions_everybeam_LOFAR -size 2048 2048 -niter 2000 "
cmd += " -auto-threshold 0.5 -auto-mask 3 "
cmd += " -pol I -multiscale -weight briggs 0 -scale 0.002 -j 12 -mgain 0.85 "
cmd += " -no-update-model-required "
cmd += " check_positions_everybeam_LOFAR_band*.ms "
# print(cmd)
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/woden_uv2ms.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.5.0')
The telescope frame is set to '????', which generally indicates ignorance. Defaulting the frame to 'itrs', but this may lead to other warnings or errors.
The uvw_array does not match the expected values given the antenna positions. The largest discrepancy is 60.72109692160302 meters. This is a fairly common situation but might indicate an error in the antenna positions, the uvws or the phasing.
The uvw_array does not match the expected values given the antenna positions. The largest discrepancy is 60.72109692160302 meters. This is a fairly common situation but might indicate an error in the antenna positions, the uvws or the phasing.
Writing in the MS file that the units of the data are uncalib, although some CASA process will ignore this and assume the units are all in Jy (or may not know how to handle data in these units).
WSClean version 3.4 (2023-10-11)
This software package is released under the GPL version 3.
Author: André Offringa (offringa@gmail.com).
No corrected data in first measurement set: tasks will be applied on the data column.
=== IMAGING TABLE ===
# Pol Ch JG ²G FG FI In Freq(MHz)
| Independent group:
+-+-J- 0 I 0 0 0 0 0 0 130-131 (100)
Reordering check_positions_everybeam_LOFAR_band01.ms into 1 x 1 parts.
Reordering: 0%....10%....20%....30%....40%....50%....60%....70%....80%....90%....100%
Initializing model visibilities: 0%....10%....20%....30%....40%....50%....60%....70%....80%....90%....100%
== Constructing PSF ==
Precalculating weights for Briggs'(0) weighting...
Opening reordered part 0 spw 0 for check_positions_everybeam_LOFAR_band01.ms
Detected 62.7 GB of system memory, usage not limited.
Opening reordered part 0 spw 0 for check_positions_everybeam_LOFAR_band01.ms
Determining min and max w & theoretical beam size... DONE (w=[2.72562e-05:112.589] lambdas, maxuvw=14838.8 lambda)
Theoretic beam = 13.9''
Small inversion enabled, but inversion resolution already smaller than beam size: not using optimization.
Loading data in memory...
Gridding 24150 rows...
Gridded visibility count: 1.60353e+06
Fitting beam... major=44.6'', minor=14.28'', PA=141.77 deg, theoretical=13.9''.
Writing psf image... DONE
== Constructing image ==
Opening reordered part 0 spw 0 for check_positions_everybeam_LOFAR_band01.ms
Loading data in memory...
Gridding 24150 rows...
Gridded visibility count: 1.60353e+06
Writing dirty image...
== Deconvolving (1) ==
Estimated standard deviation of background noise: 78.67 mJy
Scale info:
- Scale 0, bias factor=1, psfpeak=1, gain=0.1, kernel peak=0.138145
- Scale 8, bias factor=1.7, psfpeak=0.35128, gain=0.284673, kernel peak=0.0474309
- Scale 15, bias factor=2.8, psfpeak=0.253508, gain=0.394464, kernel peak=0.0143492
- Scale 31, bias factor=4.6, psfpeak=0.194133, gain=0.515111, kernel peak=0.00398499
- Scale 62, bias factor=7.7, psfpeak=0.114612, gain=0.872511, kernel peak=0.00111501
- Scale 124, bias factor=12.9, psfpeak=0.0424424, gain=2.35613, kernel peak=0.000287081
- Scale 247, bias factor=21.4, psfpeak=0.0140966, gain=7.09389, kernel peak=7.28489e-05
- Scale 494, bias factor=35.7, psfpeak=0.00485725, gain=20.5878, kernel peak=1.83501e-05
- Scale 988, bias factor=59.5, psfpeak=0.00126325, gain=79.1608, kernel peak=4.6235e-06
RMS per scale: {0: 84.82 mJy, 8: 55.51 mJy, 15: 48.56 mJy, 31: 40.21 mJy, 62: 29.47 mJy, 124: 17.93 mJy, 247: 7.84 mJy, 494: 3.52 mJy, 988: 2.65 mJy}
Starting multi-scale cleaning. Start peak=1.03 Jy, major iteration threshold=236.02 mJy (final)
Iteration 42, scale 62 px : 995.28 mJy at 1272,424
Iteration 92, scale 31 px : 858.86 mJy at 907,1023
Iteration 187, scale 0 px : 806.1 mJy at 653,427
Iteration 308, scale 62 px : 765.78 mJy at 1151,225
Iteration 376, scale 31 px : 673.2 mJy at 906,1023
Iteration 483, scale 0 px : 637.92 mJy at 1262,1225
Iteration 695, scale 62 px : 625.09 mJy at 517,31
Iteration 736, scale 62 px : 503.24 mJy at 1941,305
Iteration 989, scale 0 px : 515.85 mJy at 1496,1429
Iteration 1229, scale 124 px : 512.12 mJy at 62,1103
Iteration 1266, scale 31 px : 491.6 mJy at 1603,2031
Iteration 1332, scale 31 px : 398.51 mJy at 145,184
Iteration 1705, scale 124 px : 456.74 mJy at 1981,1749
Iteration 1762, scale 0 px : 413.91 mJy at 1632,832
Iteration 2000, scale 62 px : 439.37 mJy at 290,118
Cleaning finished because maximum number of iterations was reached.
Auto-masking threshold reached; continuing next major iteration with deeper threshold and mask.
Maximum number of minor deconvolution iterations was reached: not continuing deconvolution.
Assigning from 1 to 1 channels...
Writing model image...
== Converting model image to visibilities ==
Opening reordered part 0 spw 0 for check_positions_everybeam_LOFAR_band01.ms
Predicting 24150 rows...
Writing...
== Constructing image ==
Opening reordered part 0 spw 0 for check_positions_everybeam_LOFAR_band01.ms
Loading data in memory...
Gridding 24150 rows...
Gridded visibility count: 1.60353e+06
1 major iterations were performed.
Rendering sources to restored image (beam=14.28''-44.6'', PA=141.77 deg)... DONE
Writing restored image... DONE
Multi-scale cleaning summary:
- Scale 0 px, nr of components cleaned: 853 (44.1 Jy)
- Scale 8 px, nr of components cleaned: 0 (0 Jy)
- Scale 15 px, nr of components cleaned: 0 (0 Jy)
- Scale 31 px, nr of components cleaned: 641 (30.19 Jy)
- Scale 62 px, nr of components cleaned: 412 (24.76 Jy)
- Scale 124 px, nr of components cleaned: 94 (7.11 Jy)
- Scale 247 px, nr of components cleaned: 0 (0 Jy)
- Scale 494 px, nr of components cleaned: 0 (0 Jy)
- Scale 988 px, nr of components cleaned: 0 (0 Jy)
Total: 2000 components (106.16 Jy)
Inversion: 00:00:02.151397, prediction: 00:00:02.442737, deconvolution: 00:00:09.757975
Cleaning up temporary files...
0
with fits.open('check_positions_everybeam_LOFAR-image.fits') as hdu:
image = np.squeeze(hdu[0].data)
wcs = WCS(hdu[0].header).celestial
fig, axs = plt.subplots(1, 1, figsize=(12, 8), subplot_kw={'projection': wcs})
im = axs.imshow(image, origin='lower', cmap='Blues_r', vmin=-0.1, vmax=0.5)
plt.colorbar(im, ax=axs, label='Jy/beam')
plt.grid(alpha=0.5)
plt.show()
WARNING: FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 60512.149363 from DATE-OBS'. [astropy.wcs.wcs]

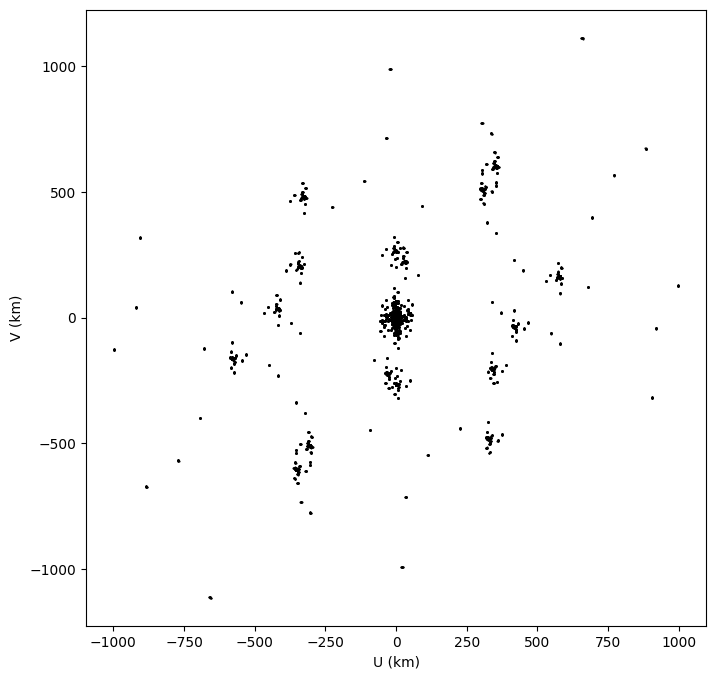

Fairly ratty image, but we defo have a grid of point source aligned with the celestial sphere, so we’re looking fine. I think lba.MS is a minimal example of the LBA array so the \(uv\) coverage probably isn’t great. Actually we can have a look at that:
with fits.open('check_positions_everybeam_LOFAR_band01.uvfits') as hdu:
uu = (hdu[0].data['UU']*c)/1e+3
vv = (hdu[0].data['VV']*c)/1e+3
fig, axs = plt.subplots(1, 1, figsize=(8, 8))
axs.plot(uu, vv, 'k.', ms=1)
axs.plot(-uu, -vv, 'k.', ms=1)
axs.set_xlabel('U (km)')
axs.set_ylabel('V (km)')
plt.show()
Yeah pretty patchy coverage. Amazing resolution though, blimey!
