FEE_primary_beam_cuda

Tests for the functions in WODEN/src/FEE_primary_beam_cuda.cu. The first single frequency function tests in depth whether the code is faithfully reproducing the MWA FEE beam for all directions on the sky, for a number of frequencies and delays. The multi-freq tests check that multiple frequencies are calculated in the same call, only for a few directions on the sky, as the accuracy is tested in depth in the single direction tests.

test_RTS_FEE_beam.c

This runs create_sky_model::test_RTS_CUDA_FEE_beam, which in turn calls the following functions:

• create_sky_model::get_HDFBeam_normalisation - get values to normalise to zenith

• create_sky_model::copy_FEE_primary_beam_to_GPU - move values from host to device

• create_sky_model::calc_CUDA_FEE_beam - calculate the MWA FEE beam response

• create_sky_model::free_FEE_primary_beam_from_GPU - free things from the device

after copying the MWA FEE beam values from the device back to the host for testing.

The MWA beam pointing direction on the sky is controlled by a set of 16 delays. In these tests, three different delays settings are tested at 50MHz, 150MHz, and 250MHz (a total of nine tests). Each test is run with ~5000 sky directions, spanning the whole sky. For each combination of settings, the beam gains output by test_RTS_CUDA_FEE_beam are compared to those stored in the header test_RTS_FEE_beam.h.

That header test_RTS_FEE_beam.h is stitched together from values stored in text files like hyperbeam_zenith_200.txt and hyperbeam_zenith_200_rot.txt, which are generated using the script compare_to_hyperdrive.py using the python package mwa_hyperbeam. Each text file stores the az/za, real and imaginary values for the gain and leakage for both the north-south and east-west dipoles, either with the parallactic angle rotation applied or not.

All delay and frequency combinations are run with both parallactic angle rotation applied and not. For the FLOAT precision, the real and imaginary must match the hyperbeam values to within a absolute tolerance of 3e-2. For DOUBLE, they must match to within 1e-13.

Note

Given that the accuracy of the FLOAT precision is <= 3%, I suggest if you are comparing simulated visibilities to real data, that DOUBLE is the only way to go (which is accurate to <= 0.00000000001%). However, if you are running some comparison simulations, the inaccuracy is a constant bias, and is still a good representation of the beam model, so is probably fine for internal comparison.

To convince yourself sensible values are stored in those test files, a very rough plotting script is included in as WODEN/cmake_testing/FEE_primary_beam_cuda/plot_beam_results.py, which converts the beam gains and leakages into Stokes XX and YY polarisations, assuming a fully Stokes I sky. The script can be used as:

python plot_beam_results.py hyperbeam_zenith_200_rot.txt

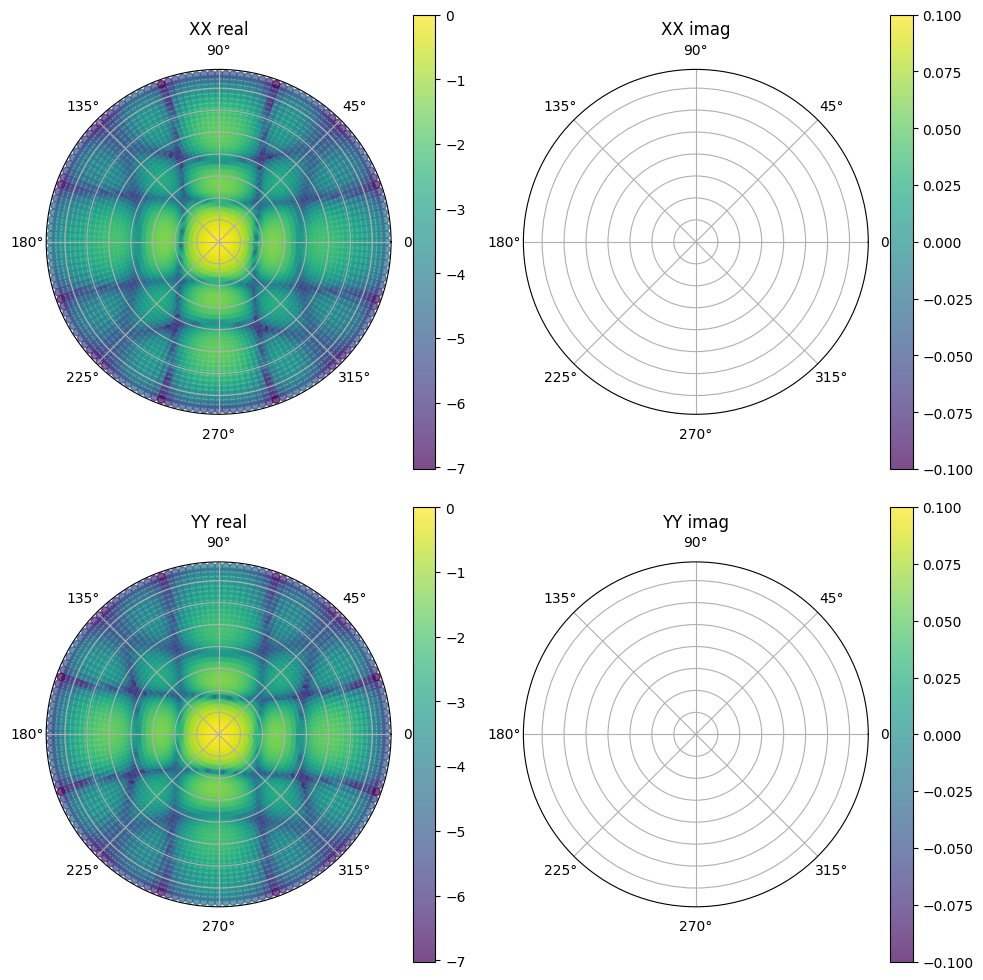

which will produce a plot like the below (this is log10(gain) for a parallactic rotated zenith pointing at 200 MHz).

(Plot looks a little warped purely because I’ve just done a scatter plot which is a quick and dirty way of showing the info).

If you are really interested in the differences, you can run:

$ source plot_all_beam_diffs.sh

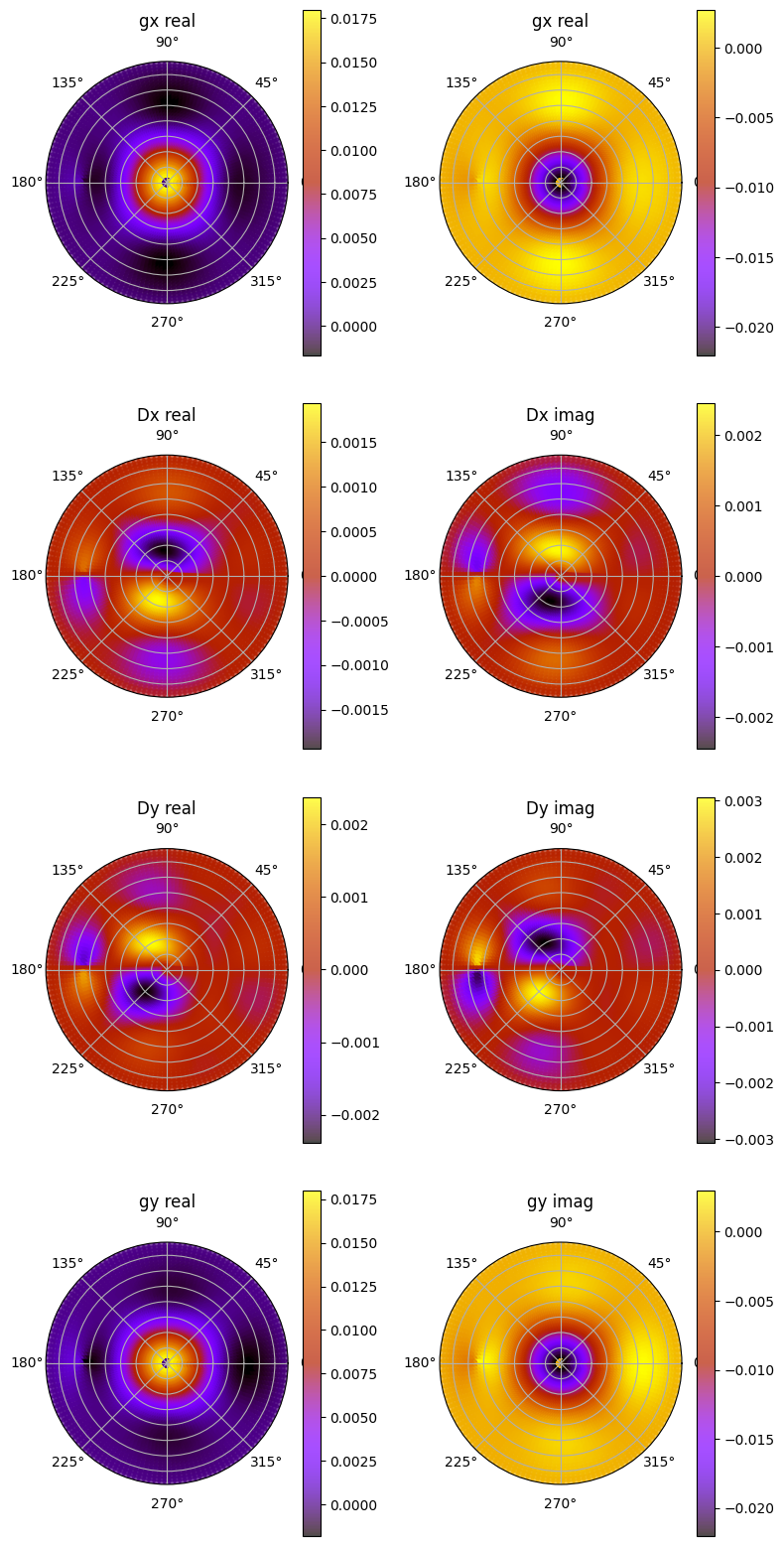

which will produce a bunch of plots in a directory WODEN/cmake_testing/FEE_primary_beam_cuda/beam_plots. Included are difference plots, showing the offset from the WODEN output to hyperbeam for real and imaginary in the gain and leakage terms of the Jones matrix. An example at FLOAT precision for zenith at 100MHz is (note this is the difference in gain, NOT log10(gain)):

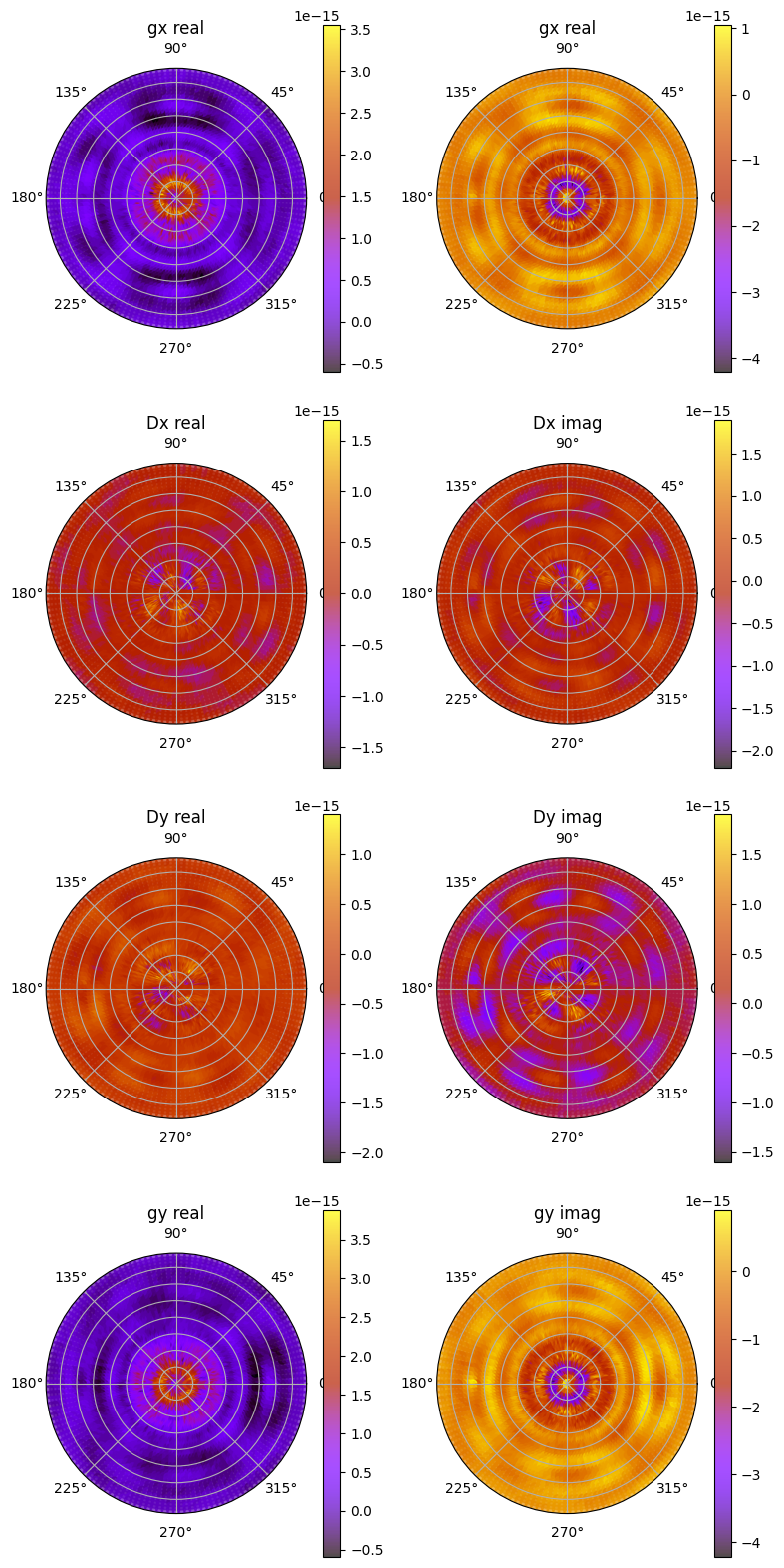

The equivalent plot for DOUBLE is shown below, showing the vast improvement in accuracy:

test_multifreq_get_MWAFEE_normalisation.c

Calls FEE_primary_beam_cuda::multifreq_get_MWAFEE_normalisation, which gets the normalisation values for the FEE beams for all frequencies when using the interpolated MWA FEE beam. Test runs for two different combinations of delays and frequencies. Just tests the real values come back as correct, as the full integration test in test_run_and_map_multifreq_calc_CUDA_FEE_beam.c tests everything.

test_map_FEE_beam_gains_multi_freq.c

Calls FEE_primary_beam_cuda::test_map_FEE_beam_gains_multi_freq, which tests the function FEE_primary_beam_cuda::map_FEE_beam_gains_multi_freq, which maps the outputs from FEE_primary_beam_cuda::multifreq_calc_CUDA_FEE_beam into the primary beam gain arrays as used by the rest of the GPU code. Tests by inputting a set of dummy gains where the gain is based on the time, sky direction, and frequency index. The test checks these gains end up in the expected order after applying the mapping

test_multifreq_calc_CUDA_FEE_beam.c

This calls FEE_primary_beam_cuda::test_multifreq_calc_CUDA_FEE_beam, which tests the function FEE_primary_beam_cuda::multifreq_calc_CUDA_FEE_beam, which calculates the interpolated MWA FEE for multiple directions and frequencies. Tests by running with two combinations of delays, frequencies, and sky directions, and compares to stored values. This is one step away from the full integration test below, but it doesn’t map the final gains into the 4 separate beam gain arrays used by the rest of the GPU code.

test_run_and_map_multifreq_calc_CUDA_FEE_beam.c

This calls FEE_primary_beam_cuda::test_run_and_map_multifreq_calc_CUDA_FEE_beam which in turn calls FEE_primary_beam_cuda:run_and_map_multifreq_calc_CUDA_FEE_beam. This function handles calculating the MWA FEE beam for a given number of frequencies. It takes an initialised array of RTS_MWA_FEE_beam_t types and gathers the normalisation factors, beam values in all directions, and normalises them and rotates by parallactic angle. The test code takes az/za as inputs and calculates the parallactic angle values from those. Three tests are run, with three different pointings and three different frequency ranges. The output values are then tested against values output by hyperdrive, with the FLOAT precision code tested to an absolute tolerance of 3e-2, and the DOUBLE a tolerance of 1e-13.

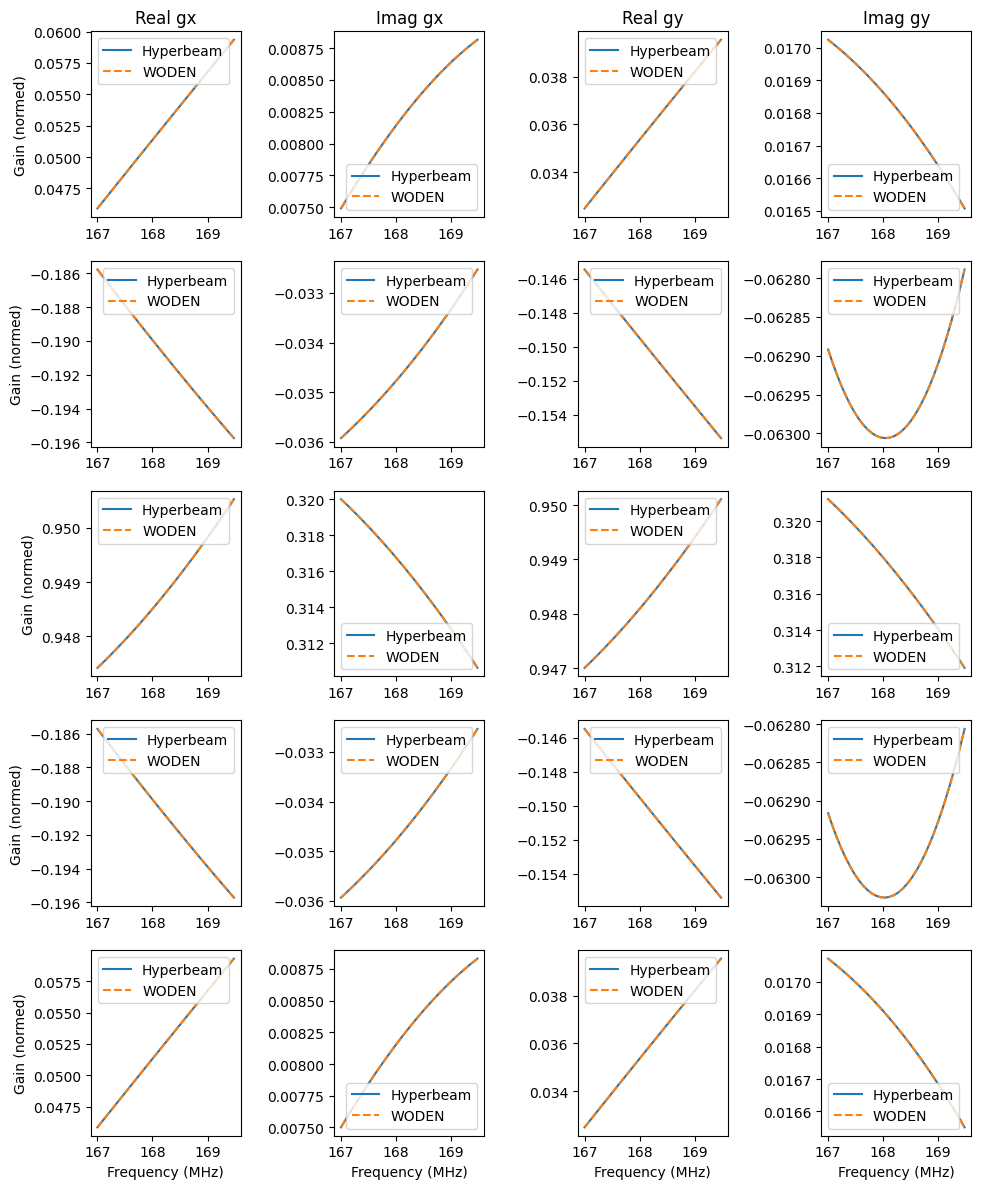

Only five coordinate directions are tested, as the accuracy of the beam across the sky is tested for many many directions by test_RTS_FEE_beam.c, which is using the same code. This test is really check that the correct frequencies are called. To visually compare the outputs of to hyperbeam, you can run the script plot_multifreq_comparison.sh, which yields output plots like this (for the DOUBLE code):
