EveryBeam OSKAR SKA integration tests¶
Not to put a dampener on WODEN, but if you’re using the the OSKAR primary beam, I would just use OSKAR to make visibilities. Sure, WODEN does precession, which OSKAR doesn’t, but OSKAR has a fully GPU version of the beam which is so much faster. The EveryBeam OSKAR implementation takes a large, large amount of time to run.
These tests are all setup and explained in test_MWA.ipynb. We’ll look a the beam shape, test Stokes recovery, and make an image from visibilities.
Goes without saying, but these tests rely on everybeam being installed.
import os
from subprocess import call
from astropy.io import fits
import numpy as np
from astropy.table import Column, Table
from astropy.time import Time
from astropy.coordinates import SkyCoord
from astropy.coordinates import EarthLocation
from astropy import units as u
import matplotlib.pyplot as plt
import numpy.testing as npt
from astropy.constants import c
from astropy.wcs import WCS
from wodenpy.primary_beam.use_everybeam import run_everybeam, run_everybeam_over_threads
import erfa
import mwa_hyperbeam
from wodenpy.use_libwoden.create_woden_struct_classes import Woden_Struct_Classes
from ctypes import c_double
from astropy.time import TimeDelta
from wodenpy.array_layout.precession import RTS_Precess_LST_Lat_to_J2000
from wodenpy.array_layout.create_array_layout import convert_ecef_to_enh
import sys
sys.path.append('../../scripts/')
from run_woden import main as run_woden
##A bunch of test and plotting code lives here so we can use it in multile notebooks
from eb_testing_code import create_WCS, plot_jones_on_sky, plot_everybeam_on_sky, make_sky_models, read_uvfits, convert_inst_to_stokes, test_stokes_recovery, getFDF, findpeaks, test_RM_recovery, make_RM_skymodel
# os.environ["MWA_BEAM_FILE"] = "/home/jline/software/MWA_beam_files/mwa_full_embedded_element_pattern.h5"
C = c.to('m/s').value
MWA_LAT=-26.703319405555554
MWA_LONG=116.67081523611111

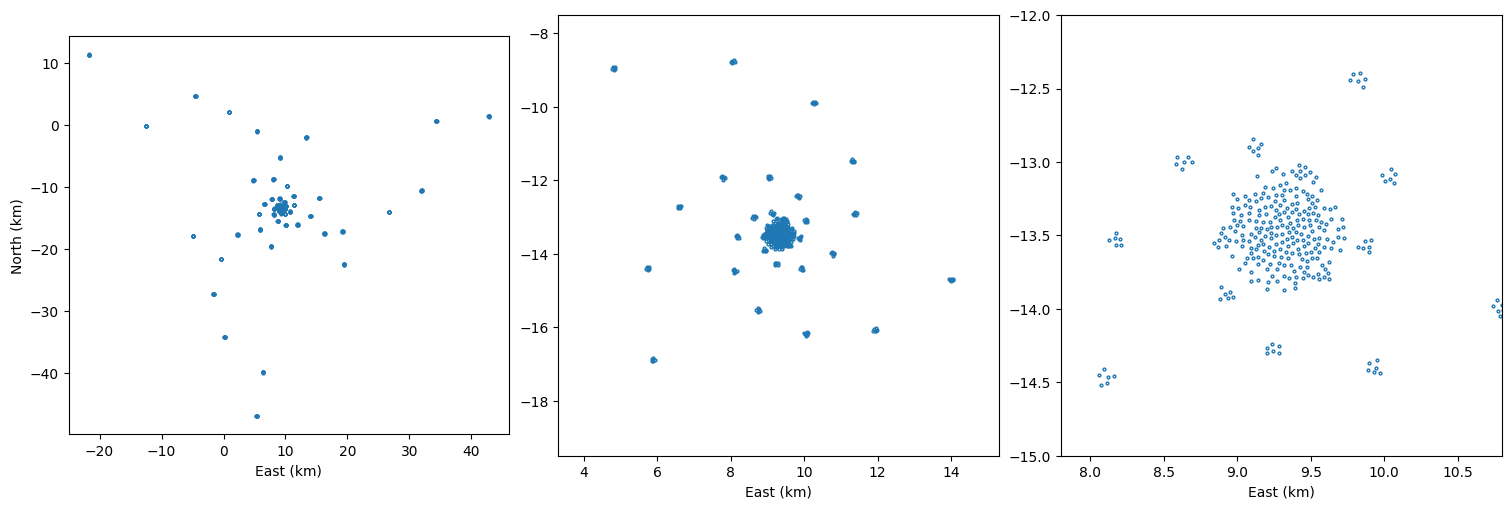

First up just quickly, let’s see what station layout I’m using. NOW using pycasacore is handy, but doing a pip install casacore will install a different underlying casacore library to the one we’ve linked to WODEN. If you try and run them in the same notebook kernel, you’ll get version conflicts. So in the following cell, I’m going to run a script via the command line to keep things separate.
from subprocess import call
call("python3 get_station_layouts.py", shell=True)
east, north, height = np.load('OSKAR-SKA-layout.npz').values()
east, north = east/1e3, north/1e3 #convert to km
fig, axs = plt.subplots(1, 3, figsize=(15, 5), layout='constrained')
for ax in axs:
ax.plot(east, north, 'o',mfc='none', ms=2)
edge = 6
x_cent = 9.3
y_cent = -13.5
axs[1].set_xlim(x_cent-edge, x_cent+edge)
axs[1].set_ylim(y_cent-edge, y_cent+edge)
edge = 1.5
axs[2].set_xlim(x_cent-edge, x_cent+edge)
axs[2].set_ylim(y_cent-edge, y_cent+edge)
for ax in axs:
ax.set_xlabel('East (km)')
ax.set_aspect('equal', 'box')
axs[0].set_ylabel('North (km)')
plt.show()
print(f"There are {len(east)} antennas in the OSKAR-SKA layout.")
Successful readonly open of default-locked table pointed_LBA.ms/ANTENNA: 10 columns, 37 rows
Successful readonly open of default-locked table pointed_LBA.ms::LOFAR_ANTENNA_FIELD: 9 columns, 37 rows
Successful readonly open of default-locked table pointed_LBA.ms/ANTENNA: 10 columns, 37 rows
Successful readonly open of default-locked table pointed_LBA.ms::LOFAR_ANTENNA_FIELD: 9 columns, 37 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/ANTENNA: 8 columns, 512 rows
There are 512 antennas in the OSKAR-SKA layout.

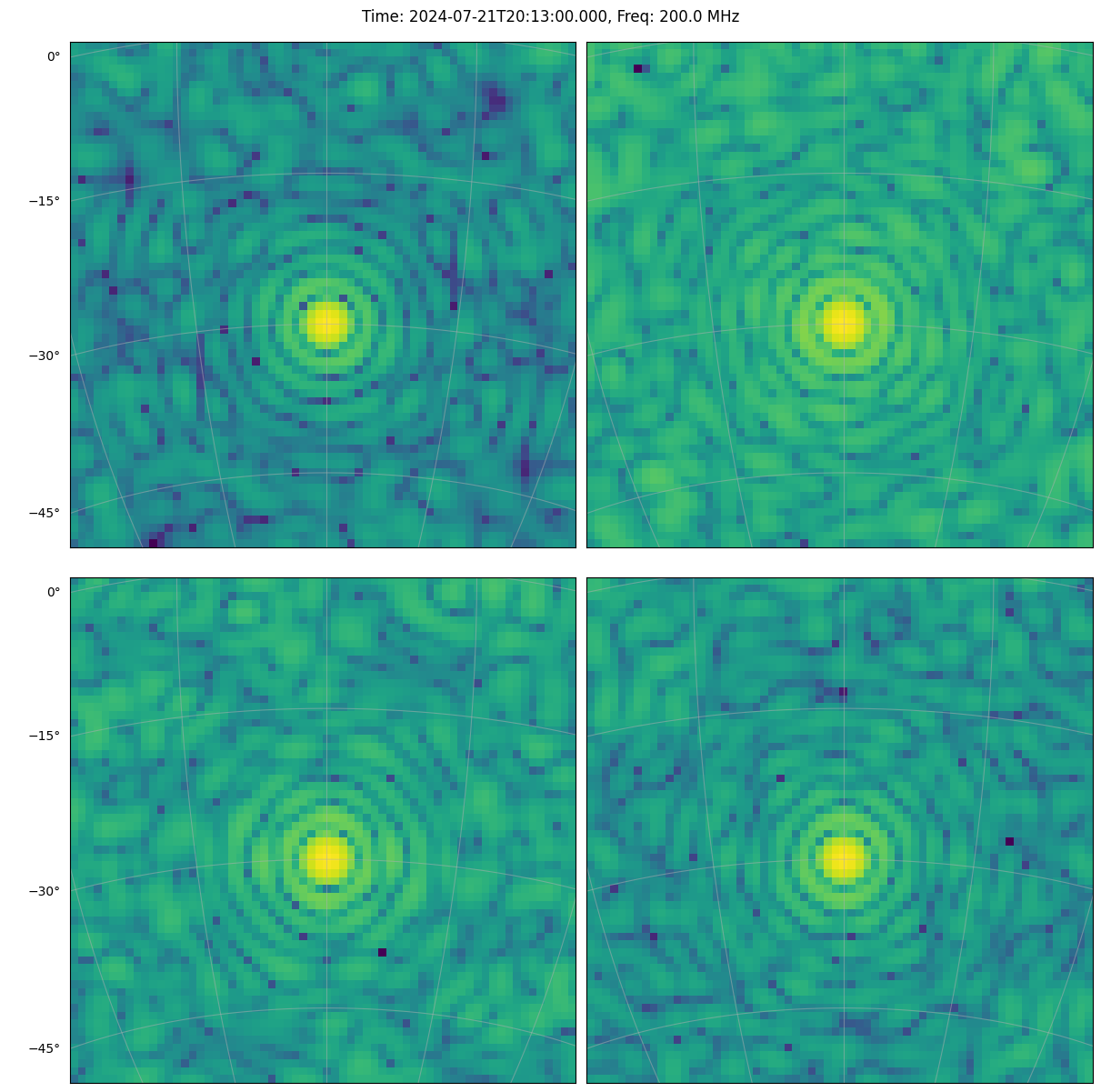

Image the beam on the sky¶

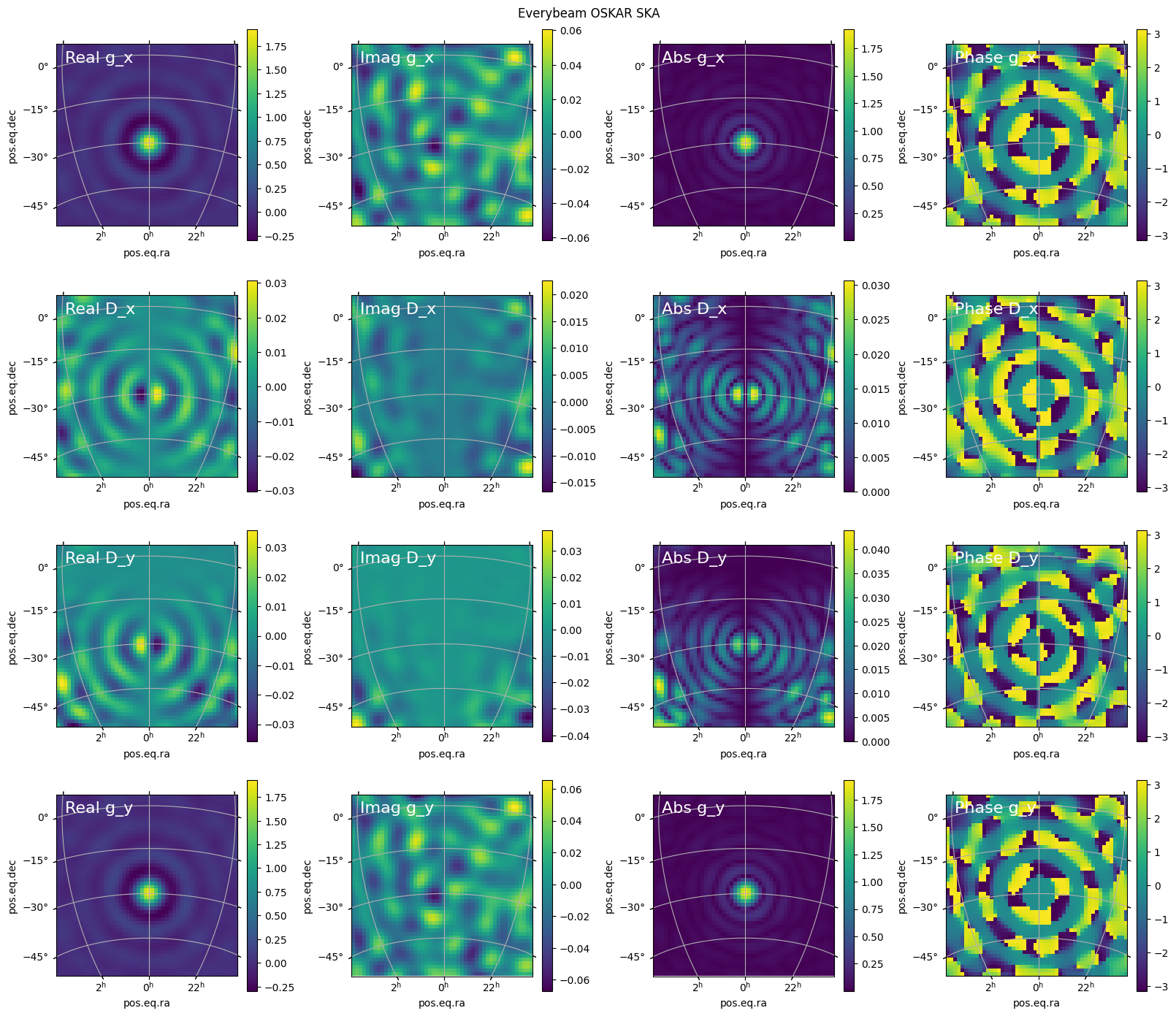

First up, let’s see if we can just plot an OSKAR SKA station beam to check it looks sensible.
##pick a time/date that sticks our phase centre overhead
date = "2024-07-21T20:13:00"
##Assume that the OSKAR telescope is near the MWA??
mwa_location = EarthLocation(lat=MWA_LAT*u.deg,
lon=MWA_LONG*u.deg,
height=377.827)
observing_time = Time(date, scale='utc', location=mwa_location)
##Grab the LST
LST = observing_time.sidereal_time('mean')
LST_deg = LST.value*15
print(f"LST: {LST_deg} deg")
LST: 0.0045520088542088475 deg
ms_path="create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms"
ra0 = LST_deg
dec0 = MWA_LAT
nside=50
radec_reso=60/nside
header, wcs = create_WCS(ra0, dec0, nside, radec_reso)
x_mesh, y_mesh = np.meshgrid(np.arange(nside), np.arange(nside))
ras, decs = wcs.all_pix2world(x_mesh, y_mesh, 0)
ras = np.radians(ras.flatten())
decs = np.radians(decs.flatten())
freq = 100e+6
coeff_path=""
station_ids = [0]
times = [observing_time]
freqs = [freq]
apply_beam_norms=True
parallactic_rotate=True
iau_order=True
element_response = "skala40_wave"
##How many cores to split the work over
num_threads=8
all_jones = run_everybeam_over_threads(num_threads,
ras, decs, freqs,
ms_path=ms_path,
times=times,
station_ids=station_ids,
beam_ra0=np.radians(ra0),beam_dec0=np.radians(dec0),
apply_beam_norms=apply_beam_norms,
iau_order=iau_order,
parallactic_rotate=parallactic_rotate,
element_response_model=element_response)
beam_ind, time_ind, freq_ind = 0, 0, 0
all_gx_eb = all_jones[beam_ind, time_ind, freq_ind, :, 0, 0]
all_Dx_eb = all_jones[beam_ind, time_ind, freq_ind, :, 0, 1]
all_Dy_eb = all_jones[beam_ind, time_ind, freq_ind, :, 1, 0]
all_gy_eb = all_jones[beam_ind, time_ind, freq_ind, :, 1, 1]
all_gx_eb.shape = (nside, nside)
all_Dx_eb.shape = (nside, nside)
all_Dy_eb.shape = (nside, nside)
all_gy_eb.shape = (nside, nside)
plot_jones_on_sky(all_gx_eb, all_Dx_eb, all_Dy_eb, all_gy_eb, wcs, 'Everybeam OSKAR SKA')
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead

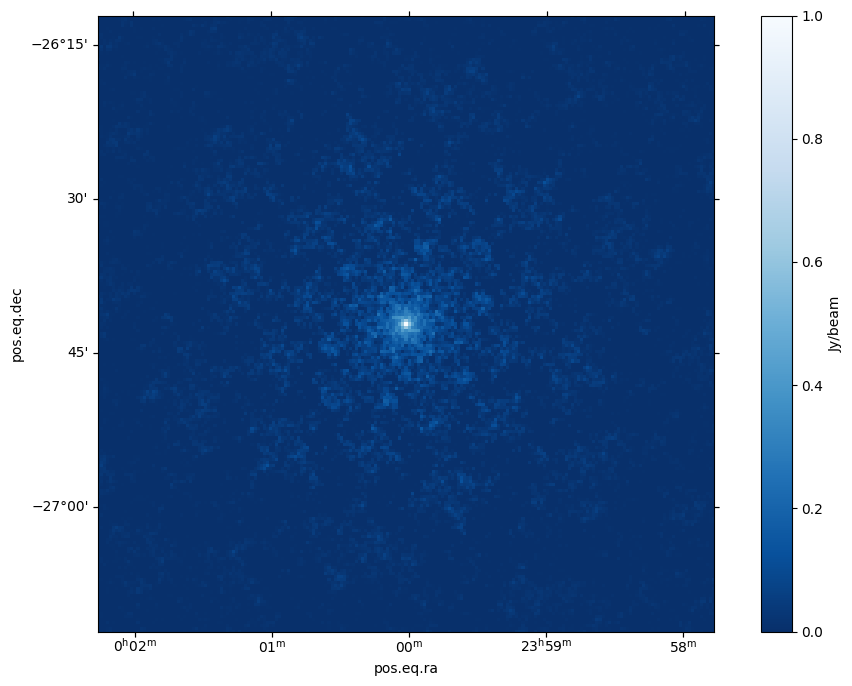

Stokes recovery¶
Now try to recover single point source of either Stokes I, Q, U or V.
make_sky_models(ra0, dec0)
freq_reso = 1e+6
# low_freq = 180e+6
# high_freq = 210e+6
low_freq = 100e+6
high_freq = 150e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "everybeam_OSKAR"
for pol in ['I', 'Q', 'U', 'V']:
# for pol in ['I']:
uvfits_name = f"stokes{pol}_{primary_beam}"
cat_name = f'{pol}_source.fits'
##The command to run WODEN
command = f'run_woden.py --ra0={ra0} --dec0={dec0} '
command += '--eb_point_to_phase ' ##this overrides whatever pointing is in beam_ms_path
##and sets it to ra0, dec0
command += f'--latitude={MWA_LAT} --longitude={MWA_LONG} '
command += f'--date={date} --output_uvfits_prepend={uvfits_name} '
command += f'--cat_filename={cat_name} --primary_beam={primary_beam} '
command += f'--lowest_channel_freq={low_freq} --freq_res={freq_reso} '
command += f'--num_freq_channels={num_freq_chans} --band_nums=1 '
command += f'--time_res=2 --num_time_steps=1 --IAU_order '
command += f' --station_id=0 '
command += f'--beam_ms_path=create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms '
command += f'--num_threads=1 '
call(command, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.6.0')
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful read/write open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful read/write open of default-locked table /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesI_everybeam_OSKAR_band01.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/ANTENNA: 8 columns, 512 rows
2025-10-22 14:16:00 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: c8b7005
2025-10-22 14:16:00 - INFO - Input arguments after parsing:
Phase centre: 0.00455, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 0.040 MHz
Num channels per coarse band: 50
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 512 antenna positions from measurement set: create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/everybeam
2025-10-22 14:16:01 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-10-22 14:16:01 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-10-22 14:16:01 - INFO - Setting initial mjd to 60512.8423726853
2025-10-22 14:16:01 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-10-22 14:16:01 - INFO - Precessing array layout to J2000
2025-10-22 14:16:01 - INFO - Will run with EveryBeam OSKAR primary beam, based on this measurement set:
create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Created the following minimal MS to point the beam:
/home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesI_everybeam_OSKAR_band01.ms
Primary beam is pointed at RA,Dec = 0.0045520088542088475, -26.703319405555554 deg
2025-10-22 14:16:01 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-10-22 14:16:01 - INFO - Sky model mapping took 0.0 mins
2025-10-22 14:16:01 - INFO - Have read in 1 components
2025-10-22 14:16:01 - INFO - After cropping there are 1 components
2025-10-22 14:16:01 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-10-22 14:16:01 - INFO - Running in serial on GPU.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-10-22 14:16:01 - INFO - Reading set 0 sky models
2025-10-22 14:16:01 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:16:02 - INFO - Sending Sky set 0 to the GPU
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 130 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 131 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 132 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 133 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 134 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 135 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 136 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 138 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 139 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 140 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 141 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 142 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 143 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 144 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 145 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 146 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 147 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 148 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 149 MHz, using the nearest neighbor with frequency 160 MHz instead
2025-10-22 14:16:05 - INFO - Sky set 0 has returned from the GPU after 2.5 seconds
2025-10-22 14:16:07 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-10-22 14:16:09 - INFO - Deleting /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesI_everybeam_OSKAR_band01.ms...
2025-10-22 14:16:09 - INFO - Done
2025-10-22 14:16:09 - INFO - Full run took 0:00:10.360253
2025-10-22 14:16:09 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.6.0')
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful read/write open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful read/write open of default-locked table /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesQ_everybeam_OSKAR_band01.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/ANTENNA: 8 columns, 512 rows
2025-10-22 14:16:12 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: c8b7005
2025-10-22 14:16:12 - INFO - Input arguments after parsing:
Phase centre: 0.00455, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 0.040 MHz
Num channels per coarse band: 50
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 512 antenna positions from measurement set: create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/everybeam
2025-10-22 14:16:12 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-10-22 14:16:12 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-10-22 14:16:12 - INFO - Setting initial mjd to 60512.8423726853
2025-10-22 14:16:12 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-10-22 14:16:12 - INFO - Precessing array layout to J2000
2025-10-22 14:16:13 - INFO - Will run with EveryBeam OSKAR primary beam, based on this measurement set:
create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Created the following minimal MS to point the beam:
/home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesQ_everybeam_OSKAR_band01.ms
Primary beam is pointed at RA,Dec = 0.0045520088542088475, -26.703319405555554 deg
2025-10-22 14:16:13 - INFO - Doing the initial mapping of sky model
2025-10-22 14:16:13 - INFO - Sky model mapping took 0.0 mins
2025-10-22 14:16:13 - INFO - Have read in 1 components
2025-10-22 14:16:13 - INFO - After cropping there are 1 components
2025-10-22 14:16:13 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-10-22 14:16:13 - INFO - Running in serial on GPU.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-10-22 14:16:13 - INFO - Reading set 0 sky models
2025-10-22 14:16:13 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:16:14 - INFO - Sending Sky set 0 to the GPU
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 130 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 131 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 132 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 133 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 134 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 135 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 136 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 138 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 139 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 140 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 141 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 142 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 143 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 144 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 145 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 146 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 147 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 148 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 149 MHz, using the nearest neighbor with frequency 160 MHz instead
2025-10-22 14:16:16 - INFO - Sky set 0 has returned from the GPU after 2.5 seconds
2025-10-22 14:16:19 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-10-22 14:16:21 - INFO - Deleting /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesQ_everybeam_OSKAR_band01.ms...
2025-10-22 14:16:21 - INFO - Done
2025-10-22 14:16:21 - INFO - Full run took 0:00:10.612927
2025-10-22 14:16:21 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.6.0')
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful read/write open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful read/write open of default-locked table /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesU_everybeam_OSKAR_band01.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/ANTENNA: 8 columns, 512 rows
2025-10-22 14:16:25 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: c8b7005
2025-10-22 14:16:25 - INFO - Input arguments after parsing:
Phase centre: 0.00455, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 0.040 MHz
Num channels per coarse band: 50
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 512 antenna positions from measurement set: create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/everybeam
2025-10-22 14:16:25 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-10-22 14:16:25 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-10-22 14:16:25 - INFO - Setting initial mjd to 60512.8423726853
2025-10-22 14:16:25 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-10-22 14:16:25 - INFO - Precessing array layout to J2000
2025-10-22 14:16:26 - INFO - Will run with EveryBeam OSKAR primary beam, based on this measurement set:
create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Created the following minimal MS to point the beam:
/home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesU_everybeam_OSKAR_band01.ms
Primary beam is pointed at RA,Dec = 0.0045520088542088475, -26.703319405555554 deg
2025-10-22 14:16:26 - INFO - Doing the initial mapping of sky model
2025-10-22 14:16:26 - INFO - Sky model mapping took 0.0 mins
2025-10-22 14:16:26 - INFO - Have read in 1 components
2025-10-22 14:16:26 - INFO - After cropping there are 1 components
2025-10-22 14:16:26 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-10-22 14:16:26 - INFO - Running in serial on GPU.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-10-22 14:16:26 - INFO - Reading set 0 sky models
2025-10-22 14:16:26 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:16:27 - INFO - Sending Sky set 0 to the GPU
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 130 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 131 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 132 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 133 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 134 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 135 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 136 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 138 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 139 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 140 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 141 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 142 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 143 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 144 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 145 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 146 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 147 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 148 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 149 MHz, using the nearest neighbor with frequency 160 MHz instead
2025-10-22 14:16:29 - INFO - Sky set 0 has returned from the GPU after 2.5 seconds
2025-10-22 14:16:32 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-10-22 14:16:34 - INFO - Deleting /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesU_everybeam_OSKAR_band01.ms...
2025-10-22 14:16:34 - INFO - Done
2025-10-22 14:16:34 - INFO - Full run took 0:00:11.412457
2025-10-22 14:16:34 - INFO - WODEN is done. Closing the log. S'later
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.6.0')
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful read/write open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful read/write open of default-locked table /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesV_everybeam_OSKAR_band01.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/ANTENNA: 8 columns, 512 rows
2025-10-22 14:16:38 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: c8b7005
2025-10-22 14:16:38 - INFO - Input arguments after parsing:
Phase centre: 0.00455, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 1000.000 kHz
Coarse band bandwidth: 0.040 MHz
Num channels per coarse band: 50
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 512 antenna positions from measurement set: create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/everybeam
2025-10-22 14:16:38 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-10-22 14:16:38 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-10-22 14:16:38 - INFO - Setting initial mjd to 60512.8423726853
2025-10-22 14:16:38 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-10-22 14:16:38 - INFO - Precessing array layout to J2000
2025-10-22 14:16:39 - INFO - Will run with EveryBeam OSKAR primary beam, based on this measurement set:
create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Created the following minimal MS to point the beam:
/home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesV_everybeam_OSKAR_band01.ms
Primary beam is pointed at RA,Dec = 0.0045520088542088475, -26.703319405555554 deg
2025-10-22 14:16:39 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-10-22 14:16:39 - INFO - Sky model mapping took 0.0 mins
2025-10-22 14:16:39 - INFO - Have read in 1 components
2025-10-22 14:16:39 - INFO - After cropping there are 1 components
2025-10-22 14:16:39 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-10-22 14:16:39 - INFO - Running in serial on GPU.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-10-22 14:16:39 - INFO - Reading set 0 sky models
2025-10-22 14:16:39 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:16:40 - INFO - Sending Sky set 0 to the GPU
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 130 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 131 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 132 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 133 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 134 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 135 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 136 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 138 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 139 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 140 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 141 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 142 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 143 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 144 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 145 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 146 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 147 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 148 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 149 MHz, using the nearest neighbor with frequency 160 MHz instead
2025-10-22 14:16:42 - INFO - Sky set 0 has returned from the GPU after 2.6 seconds
2025-10-22 14:16:45 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-10-22 14:16:47 - INFO - Deleting /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_stokesV_everybeam_OSKAR_band01.ms...
2025-10-22 14:16:47 - INFO - Done
2025-10-22 14:16:47 - INFO - Full run took 0:00:11.344324
2025-10-22 14:16:47 - INFO - WODEN is done. Closing the log. S'later
Note I’ve deleted the outputs of the cell above, because EveryBeam spits out a bunch of error messages with the OSKAR beam warning about frequencies mismatching, and not having a central direction set. The outputs seems fine. It’s a TODO to silence these warnings.
for pol in ['I', 'Q', 'U', 'V']:
uvfits_name = f"stokes{pol}_everybeam_OSKAR"
XX, XY, YX, YY = read_uvfits(f'{uvfits_name}_band01.uvfits')
##pick a random baseline to plot, they should all be the sam
baseline = 0
recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline])
print(f"Input {pol}, Recover I {recover_I[0].real:.2f}, Q {recover_Q[0].real:.2f}, U {recover_U[0].real:.2f}, V {recover_V[0].real:.2f}")
# print(f"Input {pol}, Recover I {recover_I[-1].real:.2f}, Q {recover_Q[-1].real:.2f}, U {recover_U[-1].real:.2f}, V {recover_V[-1].real:.2f}")
test_stokes_recovery(pol, 'everybeam_OSKAR', atol=9e-2)
Input I, Recover I 1.00, Q 0.00, U 0.00, V 0.00
Testing Stokes I
Stokes I passed
Input Q, Recover I 0.00, Q 1.00, U 0.00, V -0.00
Testing Stokes Q
Stokes Q passed
Input U, Recover I 0.00, Q -0.00, U 1.00, V -0.00
Testing Stokes U
Stokes U passed
Input V, Recover I 0.00, Q 0.00, U 0.00, V 1.00
Testing Stokes V
Stokes V passed
We get back what we put in so all is well.

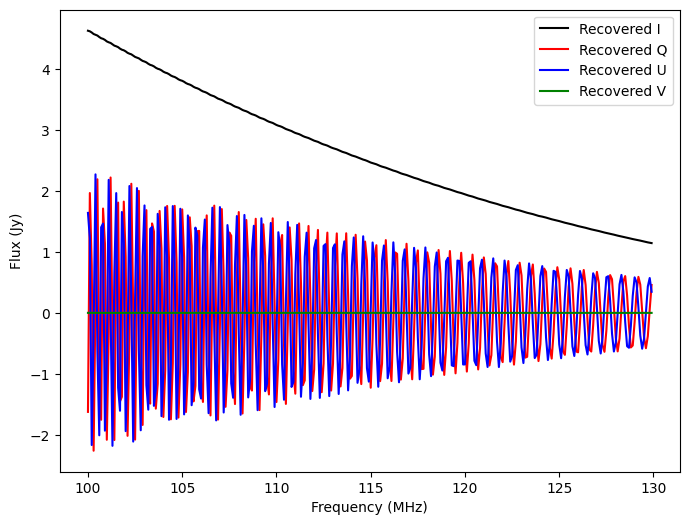

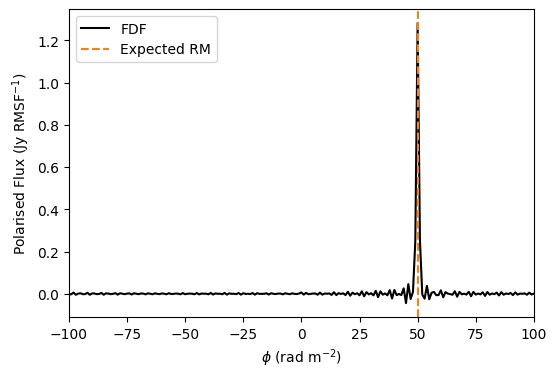

RM recovery¶
phi_RM, pol_frac = make_RM_skymodel(ra0, dec0)
freq_reso = 0.1e+6
low_freq = 100e+6
high_freq = 130e+6
num_freq_chans = int((high_freq - low_freq) / freq_reso)
primary_beam = "everybeam_OSKAR"
uvfits_name = f"rm_source_{primary_beam}"
cat_name = 'RM_source.fits'
##The command to run WODEN
command = f'run_woden.py --ra0={ra0} --dec0={dec0} '
command += f'--date={date} --output_uvfits_prepend={uvfits_name} '
command += f'--latitude={MWA_LAT} --longitude={MWA_LONG} '
command += f'--cat_filename={cat_name} --primary_beam={primary_beam} '
command += f'--lowest_channel_freq={low_freq} --freq_res={freq_reso} '
command += f'--num_freq_channels={num_freq_chans} --band_nums=1 '
command += f'--time_res=2 --num_time_steps=1 --IAU_order '
command += f' --station_id=0 '
command += f'--beam_ms_path=create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms '
command += f'--num_threads=1 '
call(command, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.6.0')
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful read/write open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/ANTENNA: 8 columns, 512 rows
2025-10-22 14:16:51 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: c8b7005
2025-10-22 14:16:51 - INFO - Input arguments after parsing:
Phase centre: 0.00455, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 100.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 0.040 MHz
Num channels per coarse band: 300
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 1
Have read 512 antenna positions from measurement set: create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/everybeam
2025-10-22 14:16:52 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-10-22 14:16:52 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-10-22 14:16:52 - INFO - Setting initial mjd to 60512.8423726853
2025-10-22 14:16:52 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-10-22 14:16:52 - INFO - Precessing array layout to J2000
2025-10-22 14:16:52 - INFO - Will run with EveryBeam OSKAR primary beam, based on this measurement set:
create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Primary beam is pointed at RA,Dec = 0.0, -29.999999999999996 deg
2025-10-22 14:16:52 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-10-22 14:16:52 - INFO - Sky model mapping took 0.0 mins
2025-10-22 14:16:52 - INFO - Have read in 1 components
2025-10-22 14:16:52 - INFO - After cropping there are 1 components
2025-10-22 14:16:52 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-10-22 14:16:55 - INFO - Running in serial on GPU.
Will read sky model using 1 threads
There are 1 sets of sky models to run
2025-10-22 14:16:55 - INFO - Reading set 0 sky models
2025-10-22 14:16:55 - INFO - From sky set 0 thread num 0 reading 1 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:16:57 - INFO - Sending Sky set 0 to the GPU
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 100 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 101 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 102 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 103 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 104 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 105 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 106 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 107 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 108 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 109 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 111 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 112 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 113 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 114 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 115 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 116 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 117 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 118 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 119 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 120 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 121 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 122 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 123 MHz, using the nearest neighbor with frequency 110 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 124 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 125 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 126 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 127 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 128 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
Could not load dataset for frequency 129 MHz, using the nearest neighbor with frequency 137 MHz instead
2025-10-22 14:17:08 - INFO - Sky set 0 has returned from the GPU after 11.1 seconds
2025-10-22 14:17:22 - INFO - Have completed 1 of 1 components calcs (100.0%)
2025-10-22 14:17:31 - INFO - Full run took 0:00:39.776398
2025-10-22 14:17:31 - INFO - WODEN is done. Closing the log. S'later
0
Note I’ve deleted the outputs of the cell above, because EveryBeam spits out a bunch of error messages with the OSKAR beam warning about frequencies mismatching, and not having a central direction set. The outputs seems fine. It’s a TODO to silence these warnings.
XX, XY, YX, YY = read_uvfits('rm_source_everybeam_OSKAR_band01.uvfits')
baseline = 0
recover_I, recover_Q, recover_U, recover_V = convert_inst_to_stokes(XX[baseline], XY[baseline], YX[baseline], YY[baseline])
freqs = np.arange(low_freq, high_freq, freq_reso)
fig, axs = plt.subplots(1, 1, figsize=(8, 6))
axs.plot(freqs / 1e+6, recover_I.real, 'k-', label='Recovered I')
axs.plot(freqs / 1e+6, recover_Q.real, 'r', label='Recovered Q')
axs.plot(freqs / 1e+6, recover_U.real, 'b', label='Recovered U')
axs.plot(freqs / 1e+6, recover_V.real, 'g', label='Recovered V')
axs.legend()
axs.set_xlabel('Frequency (MHz)')
axs.set_ylabel('Flux (Jy)')
plt.show()
test_RM_recovery(uvfits_name, phi_RM, pol_frac, freqs, atol=0.02)
Recovered RM: 50.0 Expected RM: 50
Recovered Pol. Fraction: 0.49999887 Expected Pol Fraction 0.5
We recover the correct RM which is nice.
Test unique primary beam per station¶
Righto, we’ll just run the first four stations as the skala40_wave model is slow and I don’t have all day. Run it for two time steps, two freqs to check things change sensibly.
After we’ll run a full WODEN simulation with an off-zenith point source to check that all visibilities are unique.
##Setup a grid of RA/Dec on the sky
##Setup a grid of RA/Dec on the sky
nside=64
radec_reso = 50/nside
header, wcs = create_WCS(ra0, dec0, nside, radec_reso)
x_mesh, y_mesh = np.meshgrid(np.arange(nside), np.arange(nside))
ras, decs = wcs.all_pix2world(x_mesh, y_mesh, 0)
ras = np.radians(ras.flatten())
decs = np.radians(decs.flatten())
num_comps = len(ras)
all_freqs = np.array([75e+6, 200e+6])
all_times = np.array([observing_time, observing_time + TimeDelta(3*3600.0, format='sec')])
##Do the first four stations
station_ids = np.arange(4)
# lsts = []
# latitudes = []
# for obs_time in all_times:
# LST = obs_time.sidereal_time('mean')
# lst_current = np.radians(LST.value*15)
# lst_J2000, latitude_J2000 = RTS_Precess_LST_Lat_to_J2000(
# lst_current,
# np.radians(MWA_LAT),
# obs_time.mjd)
# lsts.append(lst_J2000)
# latitudes.append(latitude_J2000)
coeff_path=""
ms_path="create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms"
apply_beam_norms = True
iau_order = True
parallactic_rotate = True
element_response = "skala40_wave"
num_threads = 8
all_jones = run_everybeam_over_threads(num_threads,
ras, decs,
ms_path=ms_path,
times=all_times, freqs=all_freqs,
station_ids=station_ids,
beam_ra0=np.radians(ra0),beam_dec0=np.radians(dec0),
apply_beam_norms=apply_beam_norms,
iau_order=iau_order,
parallactic_rotate=parallactic_rotate,
element_response_model=element_response)
Could not load dataset for frequency 75 MHz, using the nearest neighbor with frequency 70 MHz instead
Could not load dataset for frequency 75 MHz, using the nearest neighbor with frequency 70 MHz instead
Could not load dataset for frequency Could not load dataset for frequency 75 MHz, using the nearest neighbor with frequency 75 MHz, using the nearest neighbor with frequency 70 MHz instead70 MHz instead
Could not load dataset for frequency 75 MHz, using the nearest neighbor with frequency 70 MHz instead
Could not load dataset for frequency 75 MHz, using the nearest neighbor with frequency 70 MHz instead
Could not load dataset for frequency 75 MHz, using the nearest neighbor with frequency 70 MHz instead
Could not load dataset for frequency 75 MHz, using the nearest neighbor with frequency 70 MHz instead
Could not load dataset for frequency 200 MHz, using the nearest neighbor with frequency 230 MHz instead
Could not load dataset for frequency 200 MHz, using the nearest neighbor with frequency 230 MHz instead
Could not load dataset for frequency 200 MHz, using the nearest neighbor with frequency 230 MHz instead
Could not load dataset for frequency 200 MHz, using the nearest neighbor with frequency 230 MHz instead
Could not load dataset for frequency 200 MHz, using the nearest neighbor with frequency 230 MHz instead
Could not load dataset for frequency 200 MHz, using the nearest neighbor with frequency 230 MHz instead
Could not load dataset for frequency 200 MHz, using the nearest neighbor with frequency 230 MHz instead
Could not load dataset for frequency 200 MHz, using the nearest neighbor with frequency 230 MHz instead
def plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs):
fig, axs = plt.subplots(2, 2, figsize=(12, 12), layout='constrained',
subplot_kw={'projection': wcs})
for col in range(2):
for row in range(2):
beam_ind = col*2 + row
gx = all_jones[beam_ind, time_ind, freq_ind, :, 0,0]
gx.shape = (nside, nside)
im = axs[row, col].imshow(np.log10(np.abs(gx)), origin='lower')
axs[row, col].grid(alpha=0.5)
lon = axs[row, col].coords[0]
lat = axs[row, col].coords[1]
lon.set_ticks_visible(False)
lat.set_ticks_visible(False)
lon.set_axislabel(' ')
lat.set_axislabel(' ')
if col > 0:
lat.set_ticklabel_visible(False)
if row < 2:
lon.set_ticklabel_visible(False)
if col == 2:
plt.colorbar(im, ax=axs[row, col], label='log10(abs(gx))')
fig.suptitle(f"Time: {all_times[time_ind].isot}, Freq: {all_freqs[freq_ind]/1e+6} MHz")
plt.show()
time_ind = 0
freq_ind = 0
plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs)
time_ind = 0
freq_ind = 1
plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs)
time_ind = 1
freq_ind = 0
plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs)
time_ind = 1
freq_ind = 1
plot_beam_selection(all_jones, time_ind, freq_ind, nside, wcs)
Let’s make an image¶
Just create a random sky image of some point sources for fun
ra_coord_hw = 15
dec_coord_hw = 10
num_coords = 500
ras = np.random.uniform(ra0 - ra_coord_hw, ra0 + ra_coord_hw, num_coords)
decs = np.random.uniform(dec0 - dec_coord_hw, dec0 + dec_coord_hw, num_coords)
ras[ras < 0] += 360
num_comps = len(ras)
c_ids = Column(data=np.array(['source']*num_comps), name='UNQ_SOURCE_ID', dtype='|S20')
c_names = Column(data=np.array([f'source_C{i:04d}' for i in range(num_comps)]), name='NAME', dtype='|S20')
##Component position
c_ras = Column(data=ras, name='RA')
c_decs = Column(data=decs, name='DEC')
##This says we have a point source
c_comp_types = Column(data=np.array(['P']*num_comps, dtype='|S1'), name="COMP_TYPE", dtype='|S1')
##This says we have a Stokes I power-law SED
c_mod_types = Column(data=np.array(['pl']*num_comps, dtype='|S3'), name="MOD_TYPE", dtype='|S3')
##Set everything as a flat spectrum 1 Jy stokes I source. That way we can image it and see the beam pattern
c_stokes_I_ref = Column(data=np.random.uniform(1, 10, num_comps), name='NORM_COMP_PL')
c_stokes_I_SI = Column(data=np.zeros(num_comps), name='ALPHA_PL')
cols = [c_ids, c_names, c_ras, c_decs, c_comp_types, c_mod_types, c_stokes_I_ref, c_stokes_I_SI]
main_table = Table(cols)
profile_cat = 'profiling_source.fits'
main_table.write(profile_cat, format='fits', overwrite=True)
WARNING: We’re running all stations with a unique beam below. There are 512 stations, so many many beams to compute. This simulation took 8 mins 30s on my desktop. If you want a faster version, add --station_id=0 to the command line arguments in the cell below to just use station 0.
cat_name = "profiling_source.fits"
low_freq = 50e+6
freq_reso = 100e+3
num_freq_chans = 1
uvfits_name = 'ska_image_test'
primary_beam = 'everybeam_OSKAR'
##The command to run WODEN
command = f'run_woden.py --ra0={ra0} --dec0={dec0} '
command += '--eb_point_to_phase ' ##this overrides whatever pointing is in beam_ms_path
##and sets it to ra0, dec0
command += f'--latitude={MWA_LAT} --longitude={MWA_LONG} '
command += f'--date={date} --output_uvfits_prepend={uvfits_name} '
command += f'--cat_filename={cat_name} --primary_beam={primary_beam} '
command += f'--lowest_channel_freq={low_freq} --freq_res={freq_reso} '
command += f'--num_freq_channels={num_freq_chans} --band_nums=1 '
command += f'--time_res=2 --num_time_steps=2 --IAU_order '
command += ' --cpu_mode '
# command += f' --station_id=0 '
command += f'--beam_ms_path=create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms'
call(command, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/run_woden.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.6.0')
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/SPECTRAL_WINDOW: 14 columns, 1 rows
Successful read/write open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms: 22 columns, 130816 rows
Successful read/write open of default-locked table /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_ska_image_test_band01.ms::FIELD: 9 columns, 1 rows
Successful readonly open of default-locked table create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms/ANTENNA: 8 columns, 512 rows
2025-10-22 14:42:51 - INFO -
) ( )
( ( ( /( )\ ) ( /(
)\))( ')\())(()/( ( )\())
((_)()\ )((_)\ /(_)) )\ ((_)\
_(())\_)() ((_)(_))_ ((_) _((_)
\ \((_)/ // _ \ | \ | __|| \| |
\ \/\/ /| (_) || |) || _| | .` |
\_/\_/ \___/ |___/ |___||_|\_|
You are using wodenpy version/git hash: c8b7005
2025-10-22 14:42:51 - INFO - Input arguments after parsing:
Phase centre: 0.00455, -26.70332 deg
Array central latitude: -26.703 deg
Array central longitude: 116.671 deg
Array central height: 377.827 m
Lowest channel frequency: 50.000 MHz
Channel frequency resolution: 100.000 kHz
Coarse band bandwidth: 0.040 MHz
Num channels per coarse band: 1
Start date: 2024-07-21T20:13:00
Time resolution: 2.0 (s)
Num time steps: 2
Have read 512 antenna positions from measurement set: create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Will write outputs to: /home/jack-line/software/WODEN_dev/test_installation/everybeam
2025-10-22 14:42:52 - INFO - Obs epoch initial LST was 0.0087300922 deg
2025-10-22 14:42:52 - INFO - Setting initial J2000 LST to 359.6931723607 deg
2025-10-22 14:42:52 - INFO - Setting initial mjd to 60512.8423726853
2025-10-22 14:42:52 - INFO - After precession initial latitude of the array is -26.8398178265 deg
2025-10-22 14:42:52 - INFO - Precessing array layout to J2000
2025-10-22 14:42:52 - INFO - Will run with EveryBeam OSKAR primary beam, based on this measurement set:
create_OSKAR-SKA_ms/OSKAR-SKA-layout.ms
Created the following minimal MS to point the beam:
/home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_ska_image_test_band01.ms
Primary beam is pointed at RA,Dec = 0.0045520088542088475, -26.703319405555554 deg
2025-10-22 14:42:52 - INFO - Doing the initial mapping of sky model
INFO: couldn't find second table containing shapelet information, so not attempting to load any shapelets.
2025-10-22 14:42:52 - INFO - Sky model mapping took 0.0 mins
2025-10-22 14:42:52 - INFO - Have read in 500 components
2025-10-22 14:42:52 - INFO - After cropping there are 500 components
2025-10-22 14:42:52 - INFO - Will load libwoden from /home/jack-line/software/WODEN_dev/wodenpy/libwoden_double.so
2025-10-22 14:42:52 - INFO - Running in parallel on CPU mode with 8 threads
There are 1 sets of sky models to run
2025-10-22 14:42:52 - INFO - Reading set 0 sky models
2025-10-22 14:42:52 - INFO - From sky set 0 thread num 0 reading 63 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:42:52 - INFO - From sky set 0 thread num 1 reading 63 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:42:52 - INFO - From sky set 0 thread num 2 reading 63 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:42:52 - INFO - From sky set 0 thread num 3 reading 63 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:42:52 - INFO - From sky set 0 thread num 4 reading 63 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:42:52 - INFO - From sky set 0 thread num 6 reading 63 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:42:52 - INFO - From sky set 0 thread num 5 reading 63 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:42:52 - INFO - From sky set 0 thread num 7 reading 59 points, 0 gauss, 0 shape, 0 shape coeffs
2025-10-22 14:42:53 - INFO - Sending Sky set 0 chunk 0 to the CPU
2025-10-22 14:42:53 - INFO - Sending Sky set 0 chunk 1 to the CPU
2025-10-22 14:42:53 - INFO - Sending Sky set 0 chunk 2 to the CPU
2025-10-22 14:42:53 - INFO - Sending Sky set 0 chunk 3 to the CPU
2025-10-22 14:42:53 - INFO - Sending Sky set 0 chunk 4 to the CPU
2025-10-22 14:42:54 - INFO - Sending Sky set 0 chunk 6 to the CPU
2025-10-22 14:42:54 - INFO - Sending Sky set 0 chunk 5 to the CPU
2025-10-22 14:42:54 - INFO - Sending Sky set 0 chunk 7 to the CPU
2025-10-22 14:49:48 - INFO - Sky set 0 chunk 0 has returned from the CPU after 415.1 seconds
2025-10-22 14:49:53 - INFO - Sky set 0 chunk 7 has returned from the CPU after 419.1 seconds
2025-10-22 14:50:09 - INFO - Sky set 0 chunk 5 has returned from the CPU after 435.1 seconds
2025-10-22 14:50:31 - INFO - Sky set 0 chunk 4 has returned from the CPU after 457.8 seconds
2025-10-22 14:50:39 - INFO - Sky set 0 chunk 2 has returned from the CPU after 465.7 seconds
2025-10-22 14:50:51 - INFO - Sky set 0 chunk 1 has returned from the CPU after 477.6 seconds
2025-10-22 14:50:55 - INFO - Sky set 0 chunk 6 has returned from the CPU after 481.2 seconds
2025-10-22 14:50:55 - INFO - Sky set 0 chunk 3 has returned from the CPU after 481.8 seconds
2025-10-22 14:50:55 - INFO - Have completed 500 of 500 components calcs (100.0%)
2025-10-22 14:50:55 - INFO - Finished all rounds of processing
2025-10-22 14:50:56 - INFO - Deleting /home/jack-line/software/WODEN_dev/test_installation/everybeam/pointed_ska_image_test_band01.ms...
2025-10-22 14:50:56 - INFO - Done
2025-10-22 14:50:56 - INFO - Full run took 0:08:06.308966
2025-10-22 14:50:56 - INFO - WODEN is done. Closing the log. S'later
0
Note I’ve deleted the outputs of the cell above, because EveryBeam spits out a bunch of error messages with the OSKAR beam warning about frequencies mismatching, and not having a central direction set. The outputs seems fine. It’s a TODO to silence these warnings.
cmd = "woden_uv2ms.py "
cmd += " --uvfits_prepend=ska_image_test_band "
cmd += " --band_nums=1 "
call(cmd, shell=True)
cmd = "wsclean -name ska_image_test -size 4096 4096 -niter 2000 "
cmd += " -auto-threshold 0.5 -auto-mask 3 "
cmd += " -pol I -multiscale -weight briggs 0 -scale 0.005 -j 12 -mgain 0.85 "
cmd += " -no-update-model-required "
cmd += " ska_image_test_band*.ms "
call(cmd, shell=True)
/home/jack-line/software/WODEN_dev/woden_dev/bin/woden_uv2ms.py:4: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html
__import__('pkg_resources').require('wodenpy==2.6.0')
The telescope frame is set to '????', which generally indicates ignorance. Defaulting the frame to 'itrs', but this may lead to other warnings or errors.
The uvw_array does not match the expected values given the antenna positions. The largest discrepancy is 4.7435968067838985 meters. This is a fairly common situation but might indicate an error in the antenna positions, the uvws or the phasing.
The uvw_array does not match the expected values given the antenna positions. The largest discrepancy is 4.7435968067838985 meters. This is a fairly common situation but might indicate an error in the antenna positions, the uvws or the phasing.
Writing in the MS file that the units of the data are uncalib, although some CASA process will ignore this and assume the units are all in Jy (or may not know how to handle data in these units).
WSClean version 3.4 (2023-10-11)
This software package is released under the GPL version 3.
Author: André Offringa (offringa@gmail.com).
No corrected data in first measurement set: tasks will be applied on the data column.
=== IMAGING TABLE ===
# Pol Ch JG ²G FG FI In Freq(MHz)
| Independent group:
+-+-J- 0 I 0 0 0 0 0 0 50-50 (1)
Reordering ska_image_test_band01.ms into 1 x 1 parts.
Reordering: 0%....10%....20%....30%....40%....50%....60%....70%....80%....90%....100%
Initializing model visibilities: 0%....10%....20%....30%....40%....50%....60%....70%....80%....90%....100%
== Constructing PSF ==
Precalculating weights for Briggs'(0) weighting...
Opening reordered part 0 spw 0 for ska_image_test_band01.ms
Detected 62.7 GB of system memory, usage not limited.
Opening reordered part 0 spw 0 for ska_image_test_band01.ms
Determining min and max w & theoretical beam size... DONE (w=[3.24584e-06:47.8641] lambdas, maxuvw=7253.73 lambda)
Theoretic beam = 28.44''
Small inversion enabled, but inversion resolution already smaller than beam size: not using optimization.
Loading data in memory...
Gridding 261632 rows...
Gridded visibility count: 256664
Fitting beam... major=110.32'', minor=73.99'', PA=136.76 deg, theoretical=28.44''.
Writing psf image... DONE
== Constructing image ==
Opening reordered part 0 spw 0 for ska_image_test_band01.ms
Loading data in memory...
Gridding 261632 rows...
Gridded visibility count: 256664
Writing dirty image...
== Deconvolving (1) ==
Estimated standard deviation of background noise: 101.07 mJy
Scale info:
- Scale 0, bias factor=1, psfpeak=1, gain=0.1, kernel peak=0.150298
- Scale 6, bias factor=1.7, psfpeak=0.445397, gain=0.224519, kernel peak=0.0501087
- Scale 13, bias factor=2.8, psfpeak=0.332387, gain=0.300854, kernel peak=0.0184458
- Scale 25, bias factor=4.6, psfpeak=0.219276, gain=0.456047, kernel peak=0.00588155
- Scale 51, bias factor=7.7, psfpeak=0.118502, gain=0.843867, kernel peak=0.00157286
- Scale 101, bias factor=12.9, psfpeak=0.0520027, gain=1.92298, kernel peak=0.00042186
- Scale 202, bias factor=21.4, psfpeak=0.0159038, gain=6.28782, kernel peak=0.000107389
- Scale 404, bias factor=35.7, psfpeak=0.00402302, gain=24.857, kernel peak=2.73429e-05
- Scale 809, bias factor=59.5, psfpeak=0.00096395, gain=103.74, kernel peak=6.90052e-06
- Scale 1618, bias factor=99.2, psfpeak=0.000191813, gain=521.342, kernel peak=1.7359e-06
RMS per scale: {0: 116.19 mJy, 6: 71.71 mJy, 13: 62.1 mJy, 25: 49.96 mJy, 51: 36.64 mJy, 101: 23.63 mJy, 202: 12.46 mJy, 404: 6.06 mJy, 809: 2.83 mJy, 1618: 1.26 mJy}
Starting multi-scale cleaning. Start peak=10.77 Jy, major iteration threshold=1.62 Jy
Iteration 4, scale 51 px : 8.32 Jy at 1766,2243
Iteration 20, scale 0 px : 8.5 Jy at 2000,1721
Iteration 31, scale 25 px : 7.31 Jy at 1883,1646
Iteration 54, scale 0 px : 6.47 Jy at 2440,1988
Iteration 79, scale 51 px : 6.04 Jy at 2036,2769
Iteration 89, scale 25 px : 5.5 Jy at 1682,1856
Iteration 139, scale 0 px : 5 Jy at 1766,2243
Iteration 195, scale 0 px : 3.98 Jy at 1948,1371
Iteration 288, scale 25 px : 3.97 Jy at 1958,1851
Iteration 320, scale 25 px : 3.14 Jy at 3060,2550
Iteration 440, scale 0 px : 3.14 Jy at 1749,1809
Iteration 539, scale 0 px : 2.51 Jy at 3203,2331
Iteration 726, scale 25 px : 2.54 Jy at 2989,2374
Iteration 758, scale 25 px : 2.02 Jy at 2429,901
Iteration 914, scale 0 px : 2 Jy at 2361,2191
Subminor loop is near minor loop threshold. Initiating countdown.
(14) Iteration 1113, scale 0 px : 1.62 Jy at 2361,2191
Minor loop finished, continuing cleaning after inversion/prediction round.
Assigning from 1 to 1 channels...
== Converting model image to visibilities ==
Opening reordered part 0 spw 0 for ska_image_test_band01.ms
Predicting 261632 rows...
Writing...
== Constructing image ==
Opening reordered part 0 spw 0 for ska_image_test_band01.ms
Loading data in memory...
Gridding 261632 rows...
Gridded visibility count: 256664
== Deconvolving (2) ==
Estimated standard deviation of background noise: 57.79 mJy
Scale info:
- Scale 0, bias factor=1, psfpeak=1, gain=0.1, kernel peak=0.150298
- Scale 6, bias factor=1.7, psfpeak=0.445397, gain=0.224519, kernel peak=0.0501087
- Scale 13, bias factor=2.8, psfpeak=0.332387, gain=0.300854, kernel peak=0.0184458
- Scale 25, bias factor=4.6, psfpeak=0.219276, gain=0.456047, kernel peak=0.00588155
- Scale 51, bias factor=7.7, psfpeak=0.118502, gain=0.843867, kernel peak=0.00157286
- Scale 101, bias factor=12.9, psfpeak=0.0520027, gain=1.92298, kernel peak=0.00042186
- Scale 202, bias factor=21.4, psfpeak=0.0159038, gain=6.28782, kernel peak=0.000107389
- Scale 404, bias factor=35.7, psfpeak=0.00402302, gain=24.857, kernel peak=2.73429e-05
- Scale 809, bias factor=59.5, psfpeak=0.00096395, gain=103.74, kernel peak=6.90052e-06
- Scale 1618, bias factor=99.2, psfpeak=0.000191813, gain=521.342, kernel peak=1.7359e-06
RMS per scale: {0: 62.94 mJy, 6: 29.69 mJy, 13: 23.57 mJy, 25: 17.64 mJy, 51: 12.32 mJy, 101: 7.83 mJy, 202: 4.15 mJy, 404: 2.13 mJy, 809: 1.2 mJy, 1618: 687.5 µJy}
Starting multi-scale cleaning. Start peak=-2.22 Jy, major iteration threshold=333.57 mJy
Iteration 1117, scale 51 px : 1.71 Jy at 2391,3243
Iteration 1137, scale 0 px : 1.73 Jy at 1766,1796
Iteration 1333, scale 25 px : -1.71 Jy at 1758,1805
Iteration 1355, scale 25 px : 1.37 Jy at 2955,2936
Iteration 1468, scale 0 px : 1.43 Jy at 1748,1810
Iteration 1713, scale 0 px : 1.14 Jy at 1106,933
Iteration 2000, scale 51 px : -2.05 Jy at 1754,1804
Cleaning finished because maximum number of iterations was reached.
Auto-masking threshold reached; continuing next major iteration with deeper threshold and mask.
Maximum number of minor deconvolution iterations was reached: not continuing deconvolution.
Assigning from 1 to 1 channels...
Writing model image...
== Converting model image to visibilities ==
Opening reordered part 0 spw 0 for ska_image_test_band01.ms
Predicting 261632 rows...
Writing...
== Constructing image ==
Opening reordered part 0 spw 0 for ska_image_test_band01.ms
Loading data in memory...
Gridding 261632 rows...
Gridded visibility count: 256664
2 major iterations were performed.
Rendering sources to restored image (beam=73.99''-110.32'', PA=136.76 deg)... DONE
Writing restored image... DONE
Multi-scale cleaning summary:
- Scale 0 px, nr of components cleaned: 1398 (274.6 Jy)
- Scale 6 px, nr of components cleaned: 0 (0 Jy)
- Scale 13 px, nr of components cleaned: 0 (0 Jy)
- Scale 25 px, nr of components cleaned: 548 (130.12 Jy)
- Scale 51 px, nr of components cleaned: 54 (24.34 Jy)
- Scale 101 px, nr of components cleaned: 0 (0 Jy)
- Scale 202 px, nr of components cleaned: 0 (0 Jy)
- Scale 404 px, nr of components cleaned: 0 (0 Jy)
- Scale 809 px, nr of components cleaned: 0 (0 Jy)
- Scale 1618 px, nr of components cleaned: 0 (0 Jy)
Total: 2000 components (429.05 Jy)
Inversion: 00:00:14.703515, prediction: 00:00:06.212601, deconvolution: 00:01:10.627072
Cleaning up temporary files...
0
with fits.open('ska_image_test-image.fits') as hdu:
image = np.squeeze(hdu[0].data)
wcs = WCS(hdu[0].header).celestial
fig, axs = plt.subplots(1, 1, figsize=(12, 8), subplot_kw={'projection': wcs})
im = axs.imshow(image, origin='lower', cmap='Blues_r', vmin=0, vmax=1.0)
plt.colorbar(im, ax=axs, label='Jy/beam')
half_width = 2000
mid = 2048
axs.set_xlim(mid-half_width, mid+half_width)
axs.set_ylim(mid-half_width, mid+half_width)
plt.show()
WARNING: FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 60512.842372 from DATE-OBS'. [astropy.wcs.wcs]
Pretty incredible image quality, given this is a single frequency channel, and only 2 time steps. We’ll overplot the source posisitons to show that the beam is properly down-weighting the sources at image edge.
fig, axs = plt.subplots(1, 1, figsize=(12, 8), subplot_kw={'projection': wcs})
im = axs.imshow(image, origin='lower', cmap='Blues_r', vmin=0, vmax=1.0)
plt.colorbar(im, ax=axs, label='Jy/beam')
x, y = wcs.all_world2pix(ras, decs, 0)
axs.scatter(x, y, s=2, c='C1', marker='x', alpha=0.3)
half_width = 2000
mid = 2048
axs.set_xlim(mid-half_width, mid+half_width)
axs.set_ylim(mid-half_width, mid+half_width)
plt.show()
Out of interest, what does the PSF look like?
with fits.open('ska_image_test-psf.fits') as hdu:
image = np.squeeze(hdu[0].data)
wcs = WCS(hdu[0].header).celestial
fig, axs = plt.subplots(1, 1, figsize=(12, 8), subplot_kw={'projection': wcs})
im = axs.imshow(image, origin='lower', cmap='Blues_r', vmin=0, vmax=1.0)
plt.colorbar(im, ax=axs, label='Jy/beam')
half_width = 100
mid = 2048
axs.set_xlim(mid-half_width, mid+half_width)
axs.set_ylim(mid-half_width, mid+half_width)
plt.show()
WARNING: FITSFixedWarning: 'datfix' made the change 'Set MJD-OBS to 0.000000 from DATE-OBS'. [astropy.wcs.wcs]
Like a snowflake, pretty cool.
