Sky model

Warning

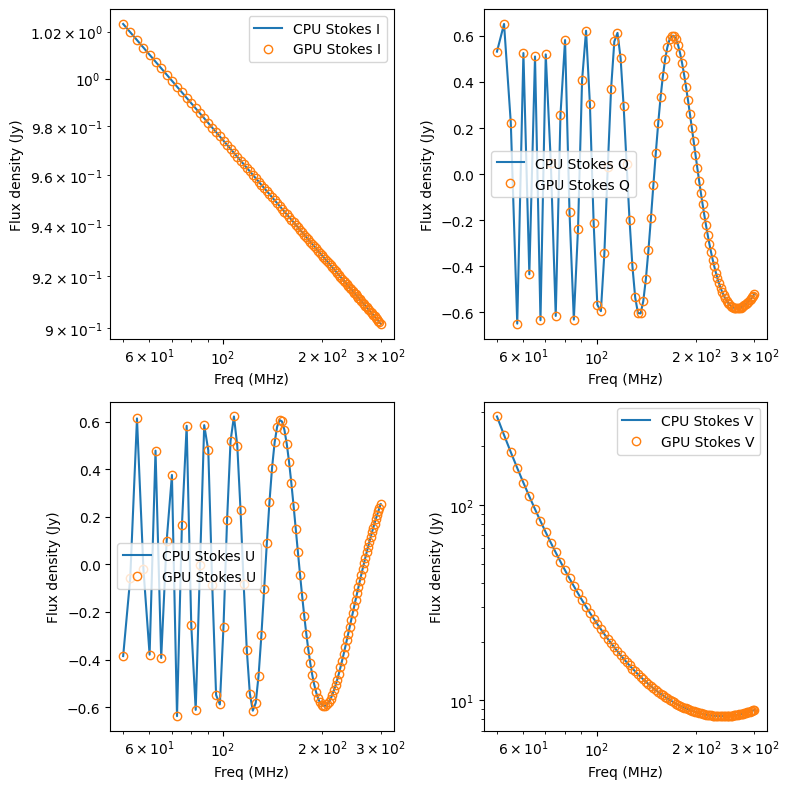

In version 2.0.0 (the current version) WODEN only reads Stokes I from the sky model, and ignores all Stokes QUV. This is because a) this makes things way faster as we can ignore QUV in call calculations b) the power-law and curved power-law extrapolations of QUV were unphysical and c) no one was using it anyway. I’m hoping in a future release to implement using a rotation measure to get linear polarisation going, and to get reading

There are currently three sky model formats that WODEN accepts; the preferred FITS format, the hyperdrive yaml format, and the now deprecated native WODEN format. The FITS and yaml formats have greater functionality, as curved power law and list-style flux behaviours are included, beyond a simple power (but as said above, Stokes QUV are all ignored and only I is used). The native WODEN format only includes power-law behaviour, and will not be developed any further.

The FITS format is by far the most efficient in terms of read speed and manipulation however, and so I _strongly_ suggest you suggest you use that format. Below, we’ll define how the spectral information is used by WODEN, and then specify the format for each sky model type.

Spectral models

There are three spectral model types: power_law; curved_power_law; list. The power_law model is a simple power law with:

\[S_i = S_0 \left( \frac{\nu_i}{\nu_0} \right)^\alpha\]

where \(S_i\) is the flux density extrapolated to frequency \(\nu_i\), with a reference flux density \(S_0\), reference frequency \(\nu_0\), and spectral index \(\alpha\). An example of these models (these plots are stolen from unit tests of WODEN):

../_images/test_extrap_power_laws.png

The curved_power_law model is defined in Equation 2 of Callingham et al. 2017, and is implemented in WODEN as:

\[S_i = S_0 \left( \frac{\nu_i}{\nu_0} \right)^\alpha e^{q\ln(\frac{\nu_i}{\nu_0})^2}\]

where \(q\) is a curvature term. This allows for peaked-type SEDs:

../_images/test_extrap_curve_power_laws.png

Finally, the list model just takes a list of flux densities, and does a linear interpolation between them. This is useful for simulating things like the 21cm signal which should bounce around with frequency.

Note

Most SEDs are assumed to be close to a power-law, and so are linear in log space. The linear interpolation is therefore done in log space. However, for some complicated modelling, negative flux values are required. For these values, the interpolation is done in linear space. Hence in the plot below, where the fluxes dip into negative territory, the extrapolated fluxes not longer lie on the straight lines, as these are log-log plots. A 21cm list-style SED has been tested to return the expected power spectra, even with this slightly odd log/linear extrapolation combo when bouncing around zero.

../_images/test_extrap_list_laws.png

Sky model formats

LoBES FITS sky model format

This sky model follows (and expands upon) the format of the LoBES catalogue Lynch et al. 2021 and is the preferred format as it’s the fastest and easiest to lazy load. There are three COMPONENT types: point source; Gaussian; shapelets. These are all the model types as defined in Line et al. 2020 (including the mathematics of how each model is simulated). You can create any number of SOURCEs, each with any number of COMPONENTs, by using the UNQ_SOURCE_ID and NAME columns as detailed below. The sky model is a FITS file with at least one HDU with the following columns:

FITS HDU 0 columns

Column Name

Unit

Description

UNQ_SOURCE_ID

Unique source ID. This is used to group COMPONENTs into SOURCEs. If you want to have multiple components in a single source, they must have the same UNQ_SOURCE_ID.

NAME

This is a COMPONENT name, and should read as UNQ_SOURCE_ID_C`number` where `number` is a COMPONENT number. For example, if you have a SOURCE with UNQ_SOURCE_ID = FornaxA, and you have two components, you should have two rows with NAME = FornaxA_C000 and FornaxA_C001.

RA

deg

Right Ascension (J2000)

DEC

deg

Declination (J2000)

COMP_TYPE

Specifies if the component is a point source, Gaussian, or shapelet. Entered as either P, G, or S.

MAJOR_DC

deg

Major axis of Gaussian or shapelet model

MINOR_DC

deg

Minor axis of Gaussian or shapelet model

PA_DC

deg

Position angle of Gaussian or shapelet model

MOD_TYPE

The flux model of this component. Can be either pl (power-law), cpl (curved power-law), or nan (list of flux densities).

NORM_COMP_PL

Jy

The reference flux for a power-law pl component model, must be at the reference frequency 200MHz.

ALPHA_PL

The spectral index for a power-law pl component model

NORM_COMP_CPL

Jy

The reference flux for a curved power-law cpl component model, must be at the reference frequency 200MHz.

ALPHA_CPL

The spectral index for a curved power-law cpl component model, must be at the reference frequency 200MHz.

CURVE_CPL

The curvature q for a curved power-law cpl component model

INT_FLX*frequency*

Jy

A reference Stokes I flux density, where frequency is the frequency in MHz. For a list type flux model, you can include as many INT_FLX*frequency* columns as necessary. For example, if you have three reference fluxes at 100, 150, and 200 MHz, you should have three columns INT_FLX100, INT_FLX150, and INT_FLX200.

If you want to include SHAPELETS, you must include a second HDU that details the shapelet basis functions for each component, using the following columns:

FITS HDU 1 columns

Column Name

Description

NAME

The COMPONENT name exactly as appears in the first HDU NAME column. You can have multiple rows for each COMPONENT, each with a unique combination of N1, N2, and COEFF, to include as many shapelet basis functions as necessary. WODEN will cross-reference the two HDUs to use these basis functions in conjunction with the position and flux model in the first HDU.

N1

The first shapelet order

N2

The second shapelet order

COEFF

The coefficient to multiply this basis function by

hyperdrive sky model format

This is the sky model format as defined for hyperdrive. I’ll reproduce some of the documentation to save clicking on the link, but all credit to Chris Jordan.

There are three COMPONENT types: point source; Gaussian; shapelet. These are all the model types as defined in Line et al. 2020 (including the mathematics of how each model is simulated). You can create any number of SOURCEs, each with any number of COMPONENTs.

Note

WODEN crops out anything below the horizon for a given observation, with run_woden.py giving the option to either cropby SOURCE (default) or by COMPONENTs (--sky_crop_components). The difference is if any COMPONENT in a single SOURCE is below the horizon, when cropping by SOURCE, the whole SOURCE is thrown away, but when cropping by COMPONENT, only the COMPONENT is thrown away.

Read on for how to detail each model in the hyperdrive format.

Point sources and flux models

An example of a single SOURCE with a single point source COMPONENT is:

source_name:
- ra: 60.0
  dec: -27.0
  comp_type: point
  flux_type:
    power_law:
      si: -0.8
      fd:
        freq: 170000000.0
        i: 1.0
        q: 2.0
        u: 3.0
        v: 4.0

An explanation of each line and value follows.

source_name:

Initialises the SOURCE, giving it the name source_name.

- ra: 60.0
  dec: -27.0
  comp_type: point

Initialises a new component, specifying the type (either point, gaussian, shapelet) and the RA and DEC (deg, deg). So this line means a point source at RA,DEC = 4h, -27deg.

power_law:
  si: -0.8

This specifies that this is a power_law type flux behaviour, with a spectral index of -0.8.

fd:
  freq: 170000000.0
  i: 1.0
  q: 2.0
  u: 3.0
  v: 4.0

This contains the reference flux density information, with a reference frequency (Hz) of 170MHz, and reference flux densities (Jy) of the Stokes I,Q,U,V of 1,2,3,4 Jy respectively.

To change to a curved_power_law flux behaviour, use:

point_curve:
- ra: 15.0
  dec: -30.0
  comp_type: point
  flux_type:
    curved_power_law:
      si: -0.8
      fd:
        freq: 150000000.0
        i: 1.0
        q: 0.0
        u: 0.0
        v: 0.0
      q: 0.2

Where the extra final line q: 0.2 specifies the curvature term. The indentation becomes important here, otherwise your Stokes Q value and curvature terms can get mixed up.

To change to a list flux behaviour, use:

point_list:
- ra: 15.0
  dec: -30.0
  comp_type: point
  flux_type:
    list:
      - freq: 180000000.0
        i: 10.0
      - freq: 170000000.0
        i: 5.0
        q: 1.0
        u: 2.0
        v: 3.0
      - freq: 190000000.0
        i: 4.0
        u: 3.0
      - freq: 120000000.0
        i: 1.0
        q: -2.0

Which will collect all the listed Stokes parameters inside each new -freq entry. This example shows you can have missing parameters; these will be filled in a zero for you. You can also add the frequencies in any order you want; WODEN will order them as it reads them in. To be explicit, the following information is read in from this sky model:

Reference freq (MHz)

Stokes I (Jy)

Stokes Q (Jy)

Stokes U (Jy)

Stokes V (Jy)

120

1

-2

0

0

170

5

1

2

3

180

10

0

0

0

190

4

0

3

0

WODEN will then perform 4 separate linear interpolations, one for each Stokes parameter.

Multiple SOURCEs and COMPONENTS

To add multiple SOURCEs, simply repeat the process, e.g.:

source1:
- ra: 60.0
  dec: -27.0
  comp_type: point
  flux_type:
    power_law:
      si: -0.8
      fd:
        freq: 170000000.0
        i: 1.0
        q: 2.0
        u: 3.0
        v: 4.0
source2:
- ra: 12.0
  dec: -35.0
  comp_type: point
  flux_type:
    power_law:
      si: -0.1
      fd:
        freq: 120000000.0
        i: 10.0
        q: 0.0
        u: 0.0
        v: 0.0

To put two COMPONENTs into the same SOURCE, just omit the second name. You can also add comments without breaking the sky model:

one_source_two_components:
- ra: 60.0
  dec: -27.0
  comp_type: point
  flux_type:
    power_law:
      si: -0.8
      fd:
        freq: 170000000.0
        i: 1.0
        q: 2.0
        u: 3.0
        v: 4.0
##Here is a comment
- ra: 12.0
  dec: -35.0
  comp_type: point
  flux_type:
    power_law:
      si: -0.1
      fd:
        freq: 120000000.0
        i: 10.0
        q: 0.0
        u: 0.0
        v: 0.0

Gaussian sources

An example srclist containing a single gaussian:

singlegauss_power:
- ra: 30.0
  dec: -30.0
  comp_type:
    gaussian:
      maj: 180.
      min: 360.
      pa: -10.
  flux_type:
    power_law:
      si: -0.8
      fd:
        freq: 150000000.0
        i: 2.0
        q: 0.0
        u: 0.0
        v: 0.0

where all lines have the same meaning as the point source, aside from the lines:

comp_type:
  gaussian:
    maj: 180.
    min: 360.
    pa: -10.

denote Gaussian specific parameters. The FWHM major maj and minor min axes are given in arcseconds, with the position angle (East from North) given in degrees.

Shapelet sources

To generate shapelet models compatible with WODEN, use SHAMFI to fit an image with the --woden_srclist option (again see SHAMFI readthedocs. for more detail). This will ensure all normalisations are correct.

Warning

At the time of writing, SHAMFI spits out either RTS or WODEN style sky models. You’ll need to use hyperdrive to convert the outputs into a hyperdrive style sky model. I have just created an issue on the SHAMFI github so hopefully it’ll get done soonish.

An example sky model (made by hand so the normalisations won’t be correct) is:

singleshapelet_power:
- ra: 45.0
  dec: 20.0
  comp_type:
    shapelet:
      maj: 420.
      min: 300.
      pa: 56.
      coeffs:
        - n1: 0
          n2: 0
          value: 0.48255952
        - n1: 14
          n2: 2
          value: -0.18494293
        - n1: 41
          n2: -15
          value: -0.08973978
        - n1: 37
          n2: 7
          value: -0.22137849
  flux_type:
    power_law:
      si: -0.8
      fd:
        freq: 150000000.0
        i: 10.0
        q: 0.0
        u: 0.0
        v: 0.0

This sky model will generate a single SHAPELET component, with a power_law type flux behaviour. This SHAPELET model requires 4 basis functions, each detailed as:

coeffs:
  - n1: 0
    n2: 0
    value: 0.48255952
  - n1: 14
    n2: 2
    value: -0.18494293
  - n1: 41
    n2: -15
    value: -0.08973978
  - n1: 37
    n2: 7
    value: -0.22137849

where n1, n2 detail the order of the basis function, and value gives the coefficient to multiply the basis function by (see Line et al. 2020 for details). You can write as many n1,n2 paris as necessary, with a maximum order < 100. If you use SHAMFI, the coefficients will be scaled such that the integrated Stokes I flux density over the source will be 10 Jy at 150 MHz for this example.

Putting it all together

An example skymodel with four sources, the first with all component types, the next three with a single component of each type, would look something like this:

point_list_gauss_power_shape_curve:
- ra: 15.0
  dec: -30.0
  comp_type: point
  flux_type:
    list:
      - freq: 180000000.0
        i: 10.0
      - freq: 170000000.0
        i: 5.0
        q: 1.0
        u: 2.0
        v: 3.0
      - freq: 190000000.0
        i: 4.0
        u: 3.0
      - freq: 120000000.0
        i: 1.0
        q: -2.0
- ra: 30.0
  dec: -30.0
  comp_type:
    gaussian:
      maj: 180.
      min: 360.
      pa: -10.
  flux_type:
    power_law:
      si: -0.8
      fd:
        freq: 150000000.0
        i: 2.0
        q: 0.0
        u: 0.0
        v: 0.0
- ra: 15.0
  dec: -30.0
  comp_type:
    shapelet:
      maj: 420.
      min: 300.
      pa: 56.
      coeffs:
        - n1: 0
          n2: 0
          value: 0.48255952
        - n1: 14
          n2: 2
          value: -0.18494293
        - n1: 41
          n2: -15
          value: -0.08973978
        - n1: 37
          n2: 7
          value: -0.22137849
  flux_type:
    curved_power_law:
      si: -0.8
      fd:
        freq: 150000000.0
        i: 1.0
        q: 0.0
        u: 0.0
        v: 0.0
      q: 0.2
point_list_alone:
- ra: 15.0
  dec: -30.0
  comp_type: point
  flux_type:
    list:
      - freq: 180000000.0
        i: 10.0
      - freq: 170000000.0
        i: 5.0
        q: 1.0
        u: 2.0
        v: 3.0
      - freq: 190000000.0
        i: 4.0
        u: 3.0
      - freq: 120000000.0
        i: 1.0
        q: -2.0
gauss_power_alone:
- ra: 30.0
  dec: -30.0
  comp_type:
    gaussian:
      maj: 180.
      min: 360.
      pa: -10.
  flux_type:
    power_law:
      si: -0.8
      fd:
        freq: 150000000.0
        i: 2.0
        q: 0.0
        u: 0.0
        v: 0.0
shapelet_curve_alone:
- ra: 15.0
  dec: -30.0
  comp_type:
    shapelet:
      maj: 420.
      min: 300.
      pa: 56.
      coeffs:
        - n1: 0
          n2: 0
          value: 0.48255952
        - n1: 14
          n2: 2
          value: -0.18494293
        - n1: 41
          n2: -15
          value: -0.08973978
        - n1: 37
          n2: 7
          value: -0.22137849
  flux_type:
    curved_power_law:
      si: -0.8
      fd:
        freq: 150000000.0
        i: 1.0
        q: 0.0
        u: 0.0
        v: 0.0
      q: 0.2

WODEN sky model format

The WODEN source catalogue is a modified version of the RTS srclist. In the current version of WODEN, you create one single SOURCE which can include as many COMPONENTS as desired, each of type POINT, GAUSSIAN or SHAPELET. A POINT is a dirac delta point source model, a GAUSSIAN is a 2D Gaussian model (with a major, minor, and position angle), and a SHAPELET model uses multiple ‘shapelet’ basis functions to build a model. For details on the model types, see Line et al. 2020. If you want to build a shapelet model, you can use the software SHAMFI, which you can read about on the SHAMFI readthedocs.

Currently, every source is given a simple power-law frequency behaviour as:

\[S = S_0 \left( \frac{\nu_0}{\nu} \right)^\alpha\]

where \(S\) is the flux density at frequency \(\nu\), with a reference flux density \(S_0\), reference frequency \(\nu_0\), and spectral index \(\alpha\).

Point sources

An example of a single SOURCE with a single point source COMPONENT is:

SOURCE source_name P 1 G 0 S 0 0
COMPONENT POINT 4.0 -27.0
LINEAR 1.8e+08 10.0 0 0 0 -0.8
ENDCOMPONENT
ENDSOURCE

An explanation of each line and value follows.

SOURCE source_name P 1 G 0 S 0 0

Initialises the SOURCE, giving it the name source_name, and specifying the number and type of components (P = point, G = gaussian, S = shapelet). For shapelet, the two numbers are total number of coefficients and total number of components. Read on further for more explanation of shapelets.

COMPONENT POINT 4.0 -27.0

Initialises a component, specifying the type (either POINT, GAUSSIAN, SHAPELET) and the RA and DEC (hours, deg). So this line means a point source at RA,DEC = 4h, -27deg.

LINEAR 1.8e+08 10.0 0 0 0 -0.8

Specifies a reference Stokes flux density as LINEAR Freq I Q U V SI, where the Freq is in Hz, Stokes params I,Q,U,V are all in units of Jy, and SI is the spectral index. It’s labelled LINEAR as a power-law is linear in log-log space. This example line specifies we have a source that has a flux density of purely Stokes I of 10 Jy at 180 MHz, with a spectral index if -0.8.

ENDCOMPONENT

This line ends the component.

ENDSOURCE

This line ends the source.

To add multiple point sources, simply repeat the COMPONENT / ENDCOMPONENT sections with new details, i.e.

SOURCE multi_point P 3 G 0 S 0 0
COMPONENT POINT 4.0 -27.0
LINEAR 1.8e+08 10.0 0 0 0 -0.4
ENDCOMPONENT
COMPONENT POINT 3.0 -37.0
LINEAR 1.3e+08 1.0.0 0 0 0 -0.786
ENDCOMPONENT
COMPONENT POINT 5.0 -47.0
LINEAR 3.9e+08 0.04 0 0 0 .02
ENDCOMPONENT
ENDSOURCE

noting that at the very top line, I have updated P 3 to reflect there are now three point sources. These numbers are used to quickly allocate memory, that’s why they re included.

Note

WODEN crops everything below the horizon out of the sky model. It can do this one of two ways - either by COMPONENT or by SOURCE. In the example above, we have three COMPONENT in one SOURCE. If you ask WODEN to crop by SOURCE, if just one of the COMPONENTS is below the horizon, it’ll crop the entire source.

Gaussian sources

An example srclist containing a single gaussian:

SOURCE gaussian_source P 0 G 1 S 0 0
COMPONENT GAUSSIAN 3.378 -37.2
LINEAR 1.8e+08 10.0 0 0 0 -0.8
GPARAMS 45.0000000000 6.0 3.0
ENDCOMPONENT
ENDSOURCE

where all lines have the same meaning as the point source, and the meaning of the extra line:

GPARAMS 45.0000000000 6.0 3.0

which specifies the Gaussian parameters as GPARAMS pa(deg) major_axis(arcmin) minor_axis(arcmin). The major and minor axes are specified as FWHM. Note this line needs to sit in between the lines starting with `COMPONENT GAUSSIAN and `ENDCOMPONENT.

Shapelet sources

To generate shapelet models compatible with WODEN, simply use SHAMFI to fit an image with the --woden_srclist option (again see SHAMFI readthedocs. for more detail). This will ensure all normalisations are correct. An example sky model (made by hand so the normalisations won’t be correct) is:

SOURCE shapelet_source P 0 G 0 S 1 3
COMPONENT SHAPELET 3.378 -37.2
FREQ 1.8e+08 10.0 0 0 0
SPARAMS 45.0000000000 6.0 3.0
SCOEFF 0 0 0.92342
SCOEFF 1 10 0.0002354
SCOEFF 4 5 0.004567
ENDCOMPONENT
ENDSOURCE

which generates a single shapelet component, including 3 shapelet basis functions, hence S 1 3 in the first line. The SPARAMS line is similar to the GAUSSIAN line with SPARAMS pa(deg) major_axis(arcmin) minor_axis(arcmin). The extra lines like:

SCOEFF 0 0 0.92342

encode the order of the shapelet basis function (see Line et al. 2020 for details) and fitted coefficient as SCOEFF p1 p2 coeff_value. You can add as many SCOEFF lines as necessary, with a maximum order < 100. If you use SHAMFI, the coefficients will be scaled such that the Stokes I flux density of the full source will be 10 Jy at 180 MHz for this example. You may have noticed the SED information here is different:

FREQ 1.8e+08 10.0 0 0 0

This line will still assume a power-law frequency behaviour, with a reference flux of 10 Jy at 180 MHz, but use a default SI = -0.8.

Putting it all together

An example skymodel with four sources, the first with all component types, the next three with a single component of each type, would look something like this:

SOURCE multi_sources P 3 G 1 S 2 7
COMPONENT SHAPELET 3.378 -37.2
FREQ 1.8e+08 10.0 0 0 0
SPARAMS 45.0000000000 6.0 3.0
SCOEFF 0 0 0.92342
SCOEFF 1 10 0.0002354
SCOEFF 4 5 0.004567
ENDCOMPONENT
COMPONENT SHAPELET 3.12 -32.2
FREQ 1.8e+08 3.1 0 0 0
SPARAMS 56.0000000000 9.0 3.0
SCOEFF 0 0 0.02345
SCOEFF 3 0 -0.234234
SCOEFF 21 34 0.82342
SCOEFF 31 5 -0.00876234
ENDCOMPONENT
COMPONENT GAUSSIAN 3.378 -37.2
LINEAR 1.8e+08 10.0 0 0 0 -0.8
GPARAMS 45.0000000000 6.0 3.0
ENDCOMPONENT
COMPONENT POINT 4.0 -27.0
LINEAR 1.8e+08 10.0 0 0 0 -0.8
ENDCOMPONENT
COMPONENT POINT 3.0 -37.0
LINEAR 1.8e+08 0.6 0 0.2 0 -0.8
ENDCOMPONENT
COMPONENT POINT 5.0 -47.0
LINEAR 70E+6 87.0 0 0 0 -0.8
ENDCOMPONENT
ENDSOURCE
SOURCE source_name P 1 G 0 S 0 0
COMPONENT POINT 4.0 -27.0
LINEAR 1.8e+08 10.0 0 0 0 -0.8
ENDCOMPONENT
ENDSOURCE
SOURCE gaussian_source P 0 G 1 S 0 0
COMPONENT GAUSSIAN 3.378 -37.2
LINEAR 1.8e+08 10.0 0 0 0 -0.8
GPARAMS 45.0000000000 6.0 3.0
ENDCOMPONENT
ENDSOURCE
SOURCE shapelet_source P 0 G 0 S 1 3
COMPONENT SHAPELET 3.378 -37.2
LINEAR 1.1e+08 10.0 2.0 0 0.8 -0.7
SPARAMS 45.0000000000 6.0 3.0
SCOEFF 0 0 0.92342
SCOEFF 1 10 0.0002354
SCOEFF 4 5 0.004567
ENDCOMPONENT
ENDSOURCE
